Diagram image not available

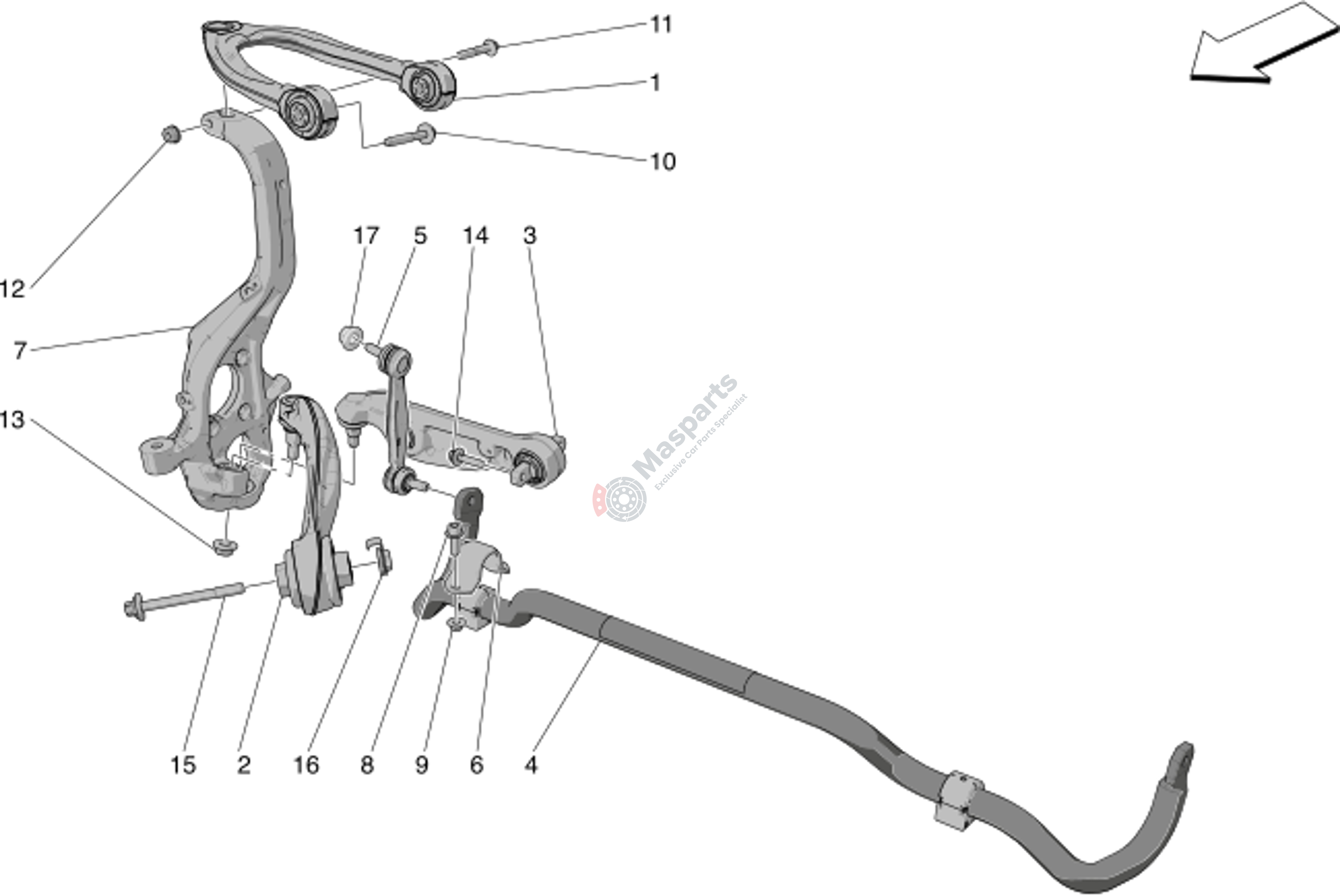

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001806 | Swinging Arm |
$171.20 |
|
|
| 2 | M-675002409 | Rh Shaft |
$70.72 |
|
|
| 3 | M-675001700 | Shaft |
$177.97 |
|
|
| 4 | M-670218794 | Shaft |
$186.67 |
|
|
| 5 | M-670305712 | Bracket |
$58.81 |
|
|
| 6 | M-675001071 | U-Bolt |
$13.77 |
|
|
| 7 | M-670217373 | Pillar |
$427.51 |
|
|
| 8 | M-675001015 | Screw |
$1.76 |
|
|
| 9 | M-675001509 | Flange Nut |
$1.81 |
|
|
| 10 | M-675001504 | Screw |
$2.67 |
|
|
| 11 | M-675001505 | Screw |
$1.99 |
|
|
| 12 | M-675000608 | Nut ˇ |
$1.54 |
|
|
| 13 | M-675001188 | Nut |
$5.66 |
|
|
| 14 | M-675001345 | Screw |
$2.23 |
|
|
| 15 | M-675001195 | Screw |
$9.42 |
|
|
| 16 | M-675001832 | Nut |
$8.48 |
|
|
| 17 | M-675001189 | Nut |
$2.29 |
|
