Diagram image not available

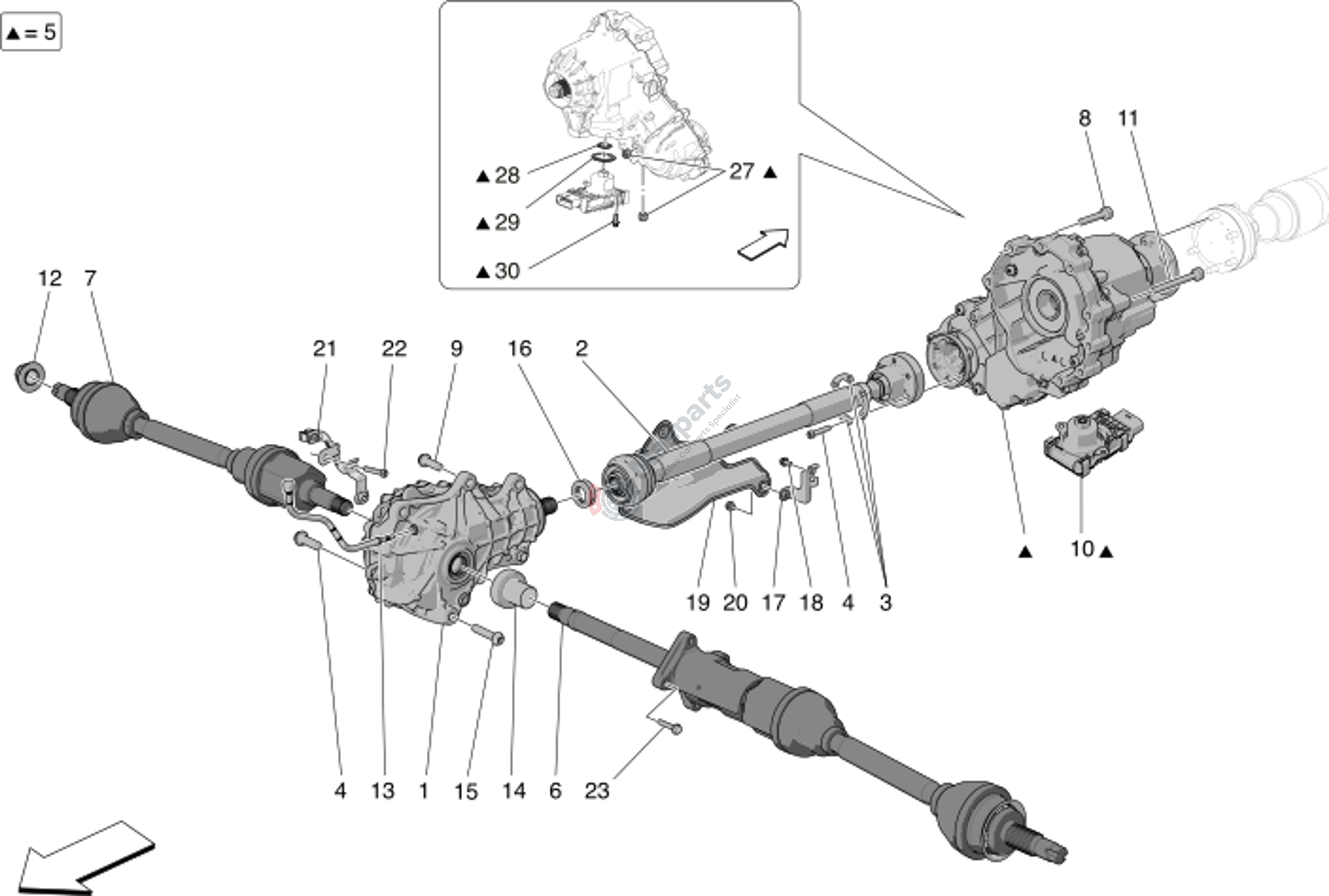

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001937 | Front Differential |
$1,879.24 |
|
|
| 2 | M-46341888 | Drive Shaft |
$604.41 |
|
|
| 3 | M-670003772 | Plate |
$3.68 |
|
|
| 4 | M-670302678 | Screw |
$2.30 |
|
|
| 5 | M-670154265 | Awd Transfer Case |
$1,469.66 |
|
|
| 6 | M-675001724 | Axle Shaft |
$364.53 |
|
|
| 7 | M-675001722 | Front Axle Shaft |
$539.47 |
|
|
| 8 | M-675001849 | Screw |
$2.53 |
|
|
| 9 | M-675001859 | Screw |
$2.94 |
|
|
| 10 | M-670175707 | Transfer Case Control Unit |
$544.43 |
|
|
| 11 | M-675001850 | Screw |
$3.18 |
|
|
| 12 | M-675000138 | Nut |
$8.89 |
|
|
| 13 | M-675002077 | Tube |
$30.15 |
|
|
| 14 | M-670051525 | Bushing |
$26.93 |
|
|
| 15 | M-675002078 | Screw |
$5.85 |
|
|
| 16 | M-675000719 | Gasket |
$2.82 |
|
|
| 17 | M-675001861 | Bracket |
$9.34 |
|
|
| 18 | M-675001931 | Screw |
$1.34 |
|
|
| 19 | M-46347065 | Heat Shield |
$14.04 |
|
|
| 20 | M-675000102 | Screw |
$2.63 |
|
|
| 21 | M-670052920 | Bracket |
$17.35 |
|
|
| 22 | M-670051104 | Screw |
$2.22 |
|
|
| 23 | M-675001909 | Screw |
$1.45 |
|
|
| 27 | M-673015767 | Oil Plug |
$2.40 |
|
|
| 28 | M-673015768 | Seal O-Ring |
$1.50 |
|
|
| 29 | M-673015772 | Sealing |
$4.24 |
|
|
| 30 | M-673015774 | Ecu Fastener |
$2.49 |
|
