Diagram image not available

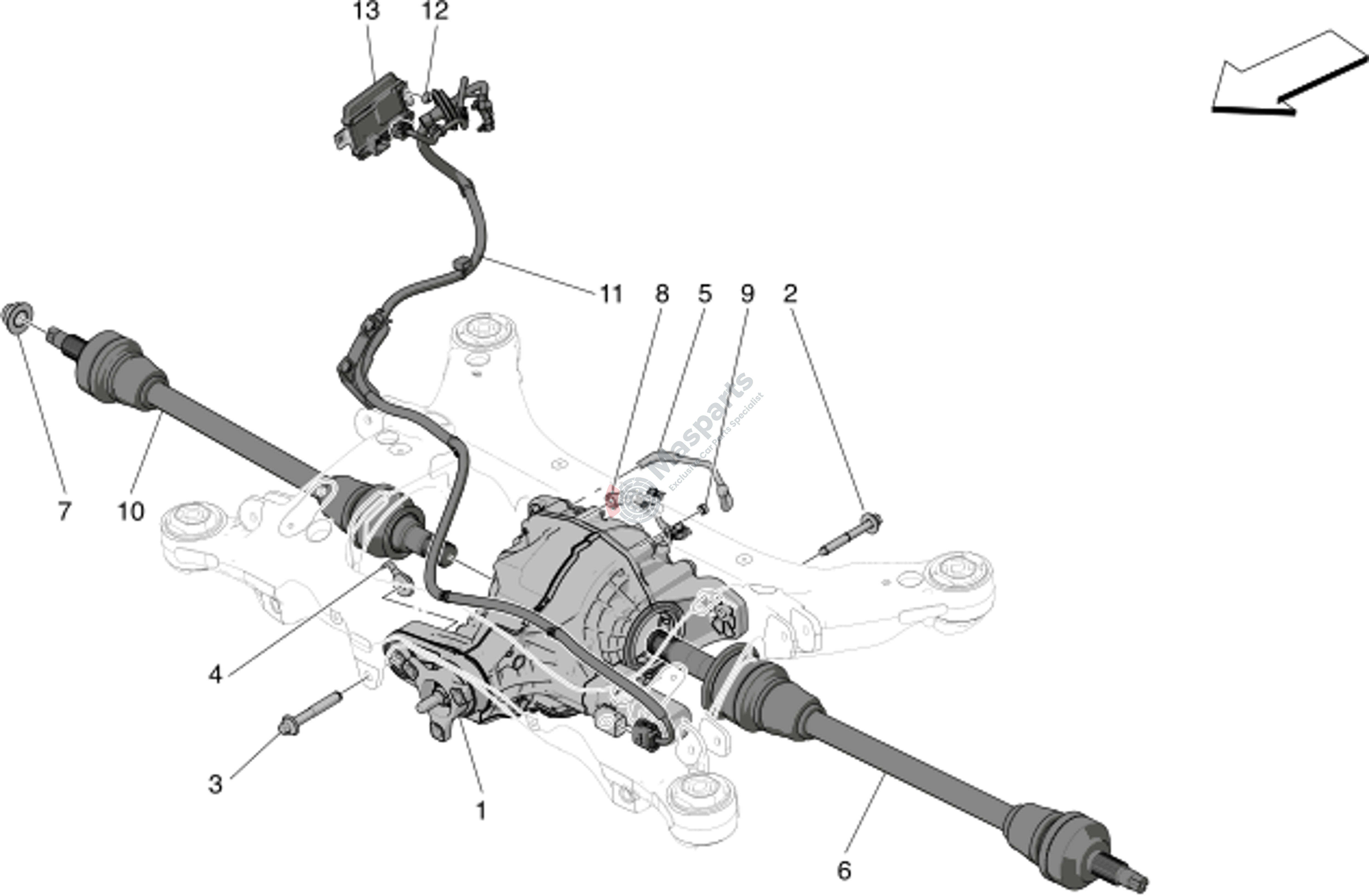

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154282 | Differential |
$1,716.61 |
|
|
| 2 | M-675001535 | Screw |
$4.07 |
|
|
| 3 | M-675000707 | Screw |
$10.93 |
|
|
| 4 | M-675001538 | Flange Nut |
$22.35 |
|
|
| 5 | M-675001853 | Pipe |
$20.89 |
|
|
| 6 | M-675001764 | Rear Axle Shaft |
$563.92 |
|
|
| 7 | M-675000138 | Nut |
$8.78 |
|
|
| 8 | M-670175405 | Bracket Oil Breather Pipe |
$17.47 |
|
|
| 9 | M-675000759 | Nut |
$0.79 |
|
|
| 10 | M-675001765 | Rear Axle Shaft |
$537.02 |
|
|
| 11 | M-670154286 | Cable |
$113.17 |
|
|
| 12 | M-675001063 | Nut |
$1.21 |
|
|
| 13 | M-670218849 | Differential Control Unit |
$361.75 |
|
