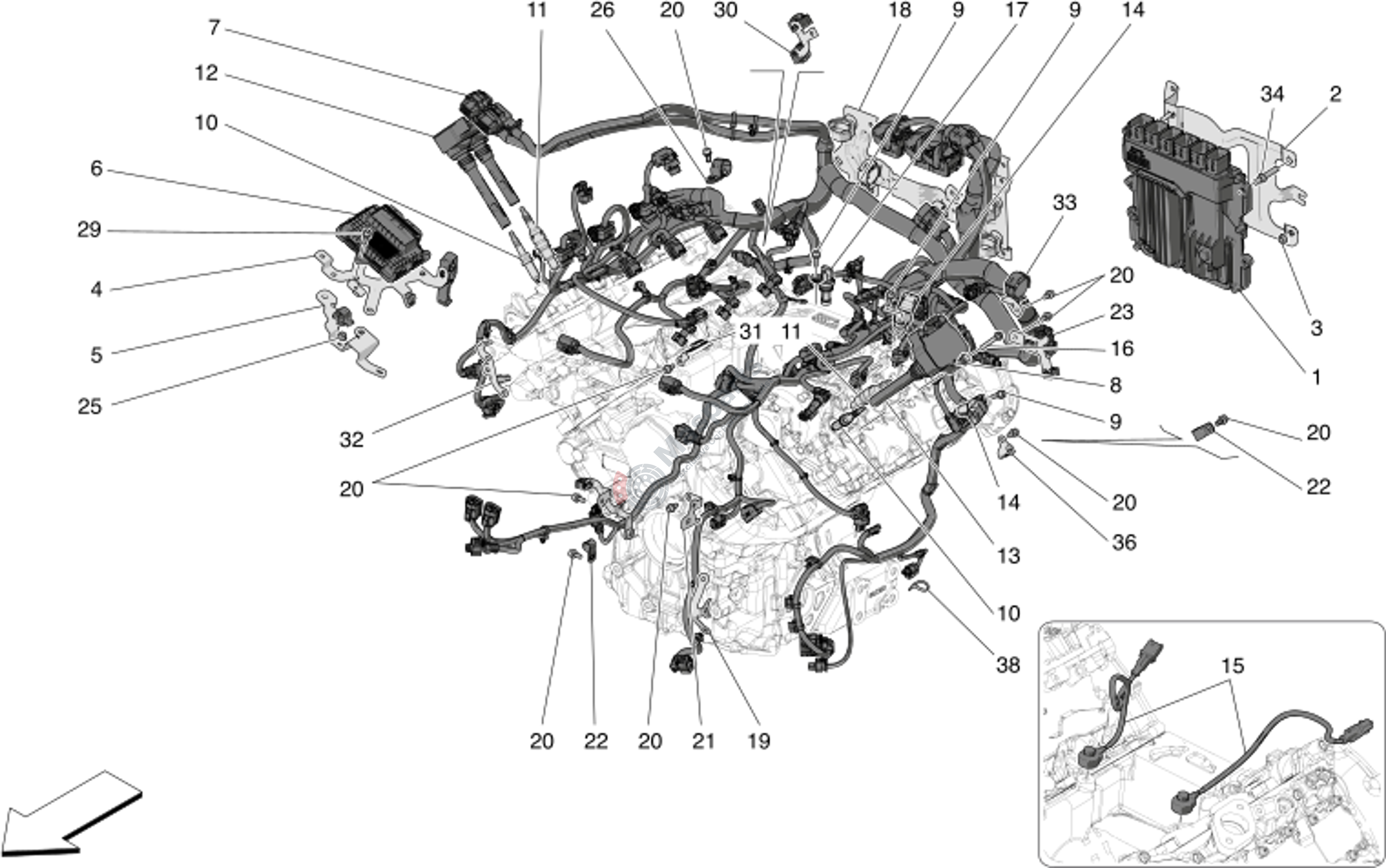

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670215611 | Engine Ecu |
$508.18 |
|
|
| 2 | M-670156735 | Bracket |
$29.95 |
|
|
| 3 | M-675000969 | Nut |
$0.97 |
|
|
| 4 | M-675002145 | Bracket |
$24.52 |
|
|
| 5 | M-675002122 | Bracket |
$20.75 |
|
|
| 6 | M-670222432 | Engine Control Unit |
$798.02 |
|
|
| 7 | M-670054319 | Injection Wire |
$1,478.17 |
|
|
| 8 | M-670053737 | Bushing |
$8.77 |
|
|
| 9 | M-670051106 | Screw |
$2.27 |
|
|
| 10 | M-670053696 | Spark Plug |
$21.83 |
|
|
| 11 | M-670053816 | Antechamber Spark Plug |
$91.00 |
|
|
| 12 | M-670053658 | Rh. Head Side Ignition Coil |
$109.17 |
|
|
| 13 | M-670053659 | Lh. Head Side Ignition Coil |
$113.04 |
|
|
| 14 | M-670050422 | Timing Sensor |
$41.16 |
|
|
| 15 | M-670051424 | Sensor For Firing |
$78.55 |
|
|
| 16 | M-670053660 | Screw |
$2.93 |
|
|
| 17 | M-670054301 | Speed Sensor |
$70.53 |
|
|
| 18 | M-670298320 | Cable Bridle Bracket |
$34.44 |
|
|
| 19 | M-670052914 | Bracket |
$13.69 |
|
|
| 20 | M-670051104 | Screw |
$2.19 |
|
|
| 21 | M-670052913 | Bracket |
$8.21 |
|
|
| 22 | M-670051479 | Bracket |
$10.27 |
|
|
| 23 | M-670054239 | Bracket |
$19.26 |
|
|
| 25 | M-675000181 | Nut |
$1.46 |
|
|
| 26 | M-670050338 | Clip |
$12.41 |
|
|
| 29 | M-675001312 | Screw |
$2.58 |
|
|
| 30 | M-670052916 | Bracket |
$10.49 |
|
|
| 31 | M-670053607 | Bracket |
$12.51 |
|
|
| 32 | M-670052917 | Bracket |
$13.81 |
|
|
| 33 | M-670054237 | Bracket |
$9.95 |
|
|
| 34 | M-670175345 | Bivite |
$13.39 |
|
|
| 36 | M-670052915 | Bracket |
$9.63 |
|
|
| 38 | M-670051301 | Clip |
$23.63 |
|
