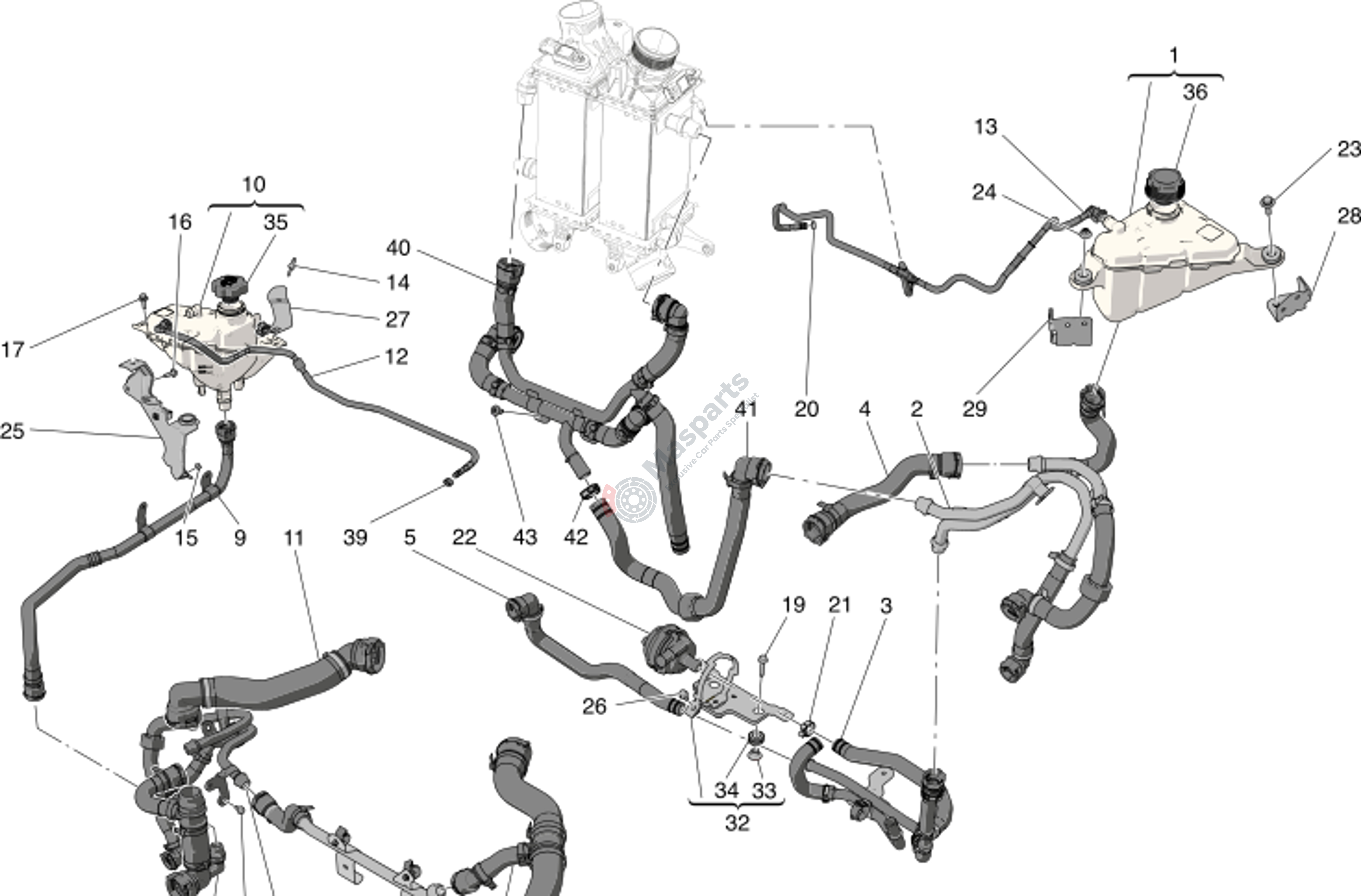

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001493 | Tank |
$63.08 |
|
|
| 2 | M-675001659 | Sleeve |
$191.23 |
|
|
| 3 | M-670156658 | Pipe |
$97.33 |
|
|
| 4 | M-675001654 | Sleeve |
$68.20 |
|
|
| 5 | M-675001578 | Sleeve |
$20.18 |
|
|
| 6 | M-675001653 | Sleeve |
$71.69 |
|
|
| 7 | M-675001581 | Sleeve |
$62.87 |
|
|
| 8 | M-675001580 | Sleeve |
$137.73 |
|
|
| 9 | M-675001579 | Pipe |
$112.96 |
|
|
| 10 | M-675001614 | Tank |
$69.40 |
|
|
| 11 | M-675001725 | Sleeve |
$28.06 |
|
|
| 12 | M-675001521 | Pipe |
$37.85 |
|
|
| 13 | M-670174776 | Pipe |
$81.84 |
|
|
| 14 | M-675001793 | Ribact |
$2.08 |
|
|
| 15 | M-675000794 | Flanged Nut |
$1.54 |
|
|
| 16 | M-675001048 | Screw |
$0.72 |
|
|
| 17 | M-675001629 | Screw |
$1.63 |
|
|
| 18 | M-675001117 | Screw |
$1.13 |
|
|
| 19 | M-675001127 | Screw |
$1.13 |
|
|
| 20 | M-675001922 | Ribbon Collar |
$1.44 |
|
|
| 21 | M-675000658 | Snap Collar |
$5.68 |
|
|
| 22 | M-670303875 | Supplementary Pump |
$260.59 |
|
|
| 23 | M-675001708 | Screw |
$1.63 |
|
|
| 24 | M-675001063 | Nut |
$1.25 |
|
|
| 25 | M-675001762 | Coolant Tank Bracket |
$18.98 |
|
|
| 26 | M-675001792 | Screw |
$0.82 |
|
|
| 27 | M-675001563 | Bracket |
$7.34 |
|
|
| 28 | M-675001568 | Bracket |
$7.63 |
|
|
| 29 | M-675001565 | Bracket |
$7.52 |
|
|
| 31 | M-670161439 | Tube |
$311.13 |
|
|
| 32 | M-670161490 | Pump Bracket |
$37.74 |
|
|
| 33 | M-675000129 | Spacer |
$30.21 |
|
|
| 34 | M-675000054 | Small Black |
$14.40 |
|
|
| 35 | M-675001143 | Tank Plug |
$18.90 |
|
|
| 36 | M-670003408 | Mount Plug |
$14.04 |
|
|
| 39 | M-675000757 | Collar |
$1.25 |
|
|
| 40 | M-675001646 | Sleeve |
$176.37 |
|
|
| 41 | M-675001667 | Sleeve |
$21.43 |
|
|
| 42 | M-675000658 | Snap Collar |
$5.68 |
|
|
| 43 | M-675001032 | Screw |
$1.30 |
|
