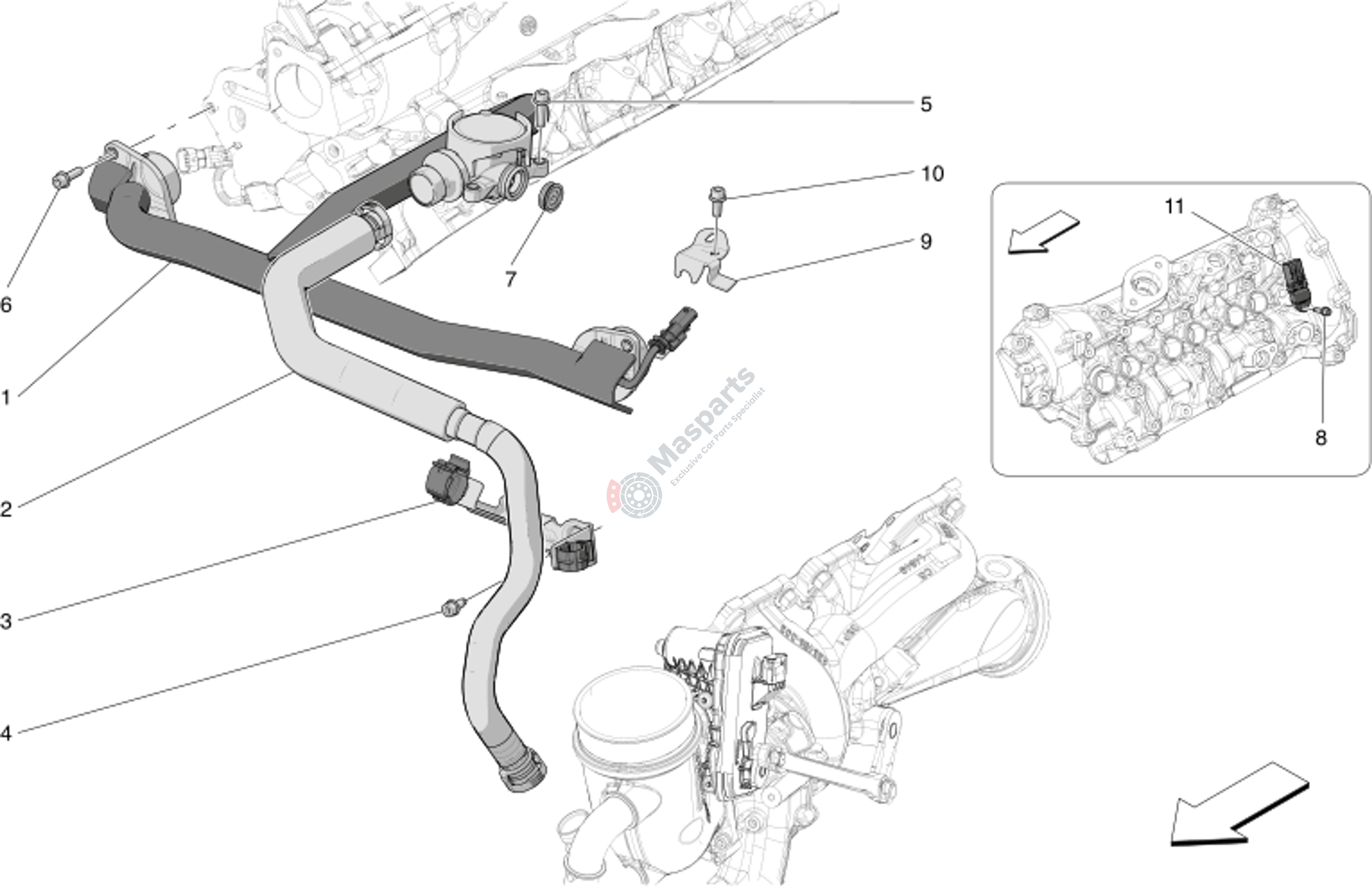

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670054131 | Blow-By Circuit |
$410.85 |
|
|
| 2 | M-670156739 | Tube |
$95.16 |
|
|
| 3 | M-670175349 | Bracket |
$23.29 |
|
|
| 4 | M-675000173 | Screw |
$2.01 |
|
|
| 5 | M-670051109 | Screw |
$2.05 |
|
|
| 6 | M-670051108 | Screw |
$2.27 |
|
|
| 7 | M-670050615 | Tightening |
$6.19 |
|
|
| 8 | M-675001312 | Screw |
$2.62 |
|
|
| 9 | M-670053570 | Bracket |
$11.27 |
|
|
| 10 | M-670051104 | Screw |
$2.22 |
|
|
| 11 | M-670052765 | Pressure Sensor |
$91.38 |
|
