Diagram image not available

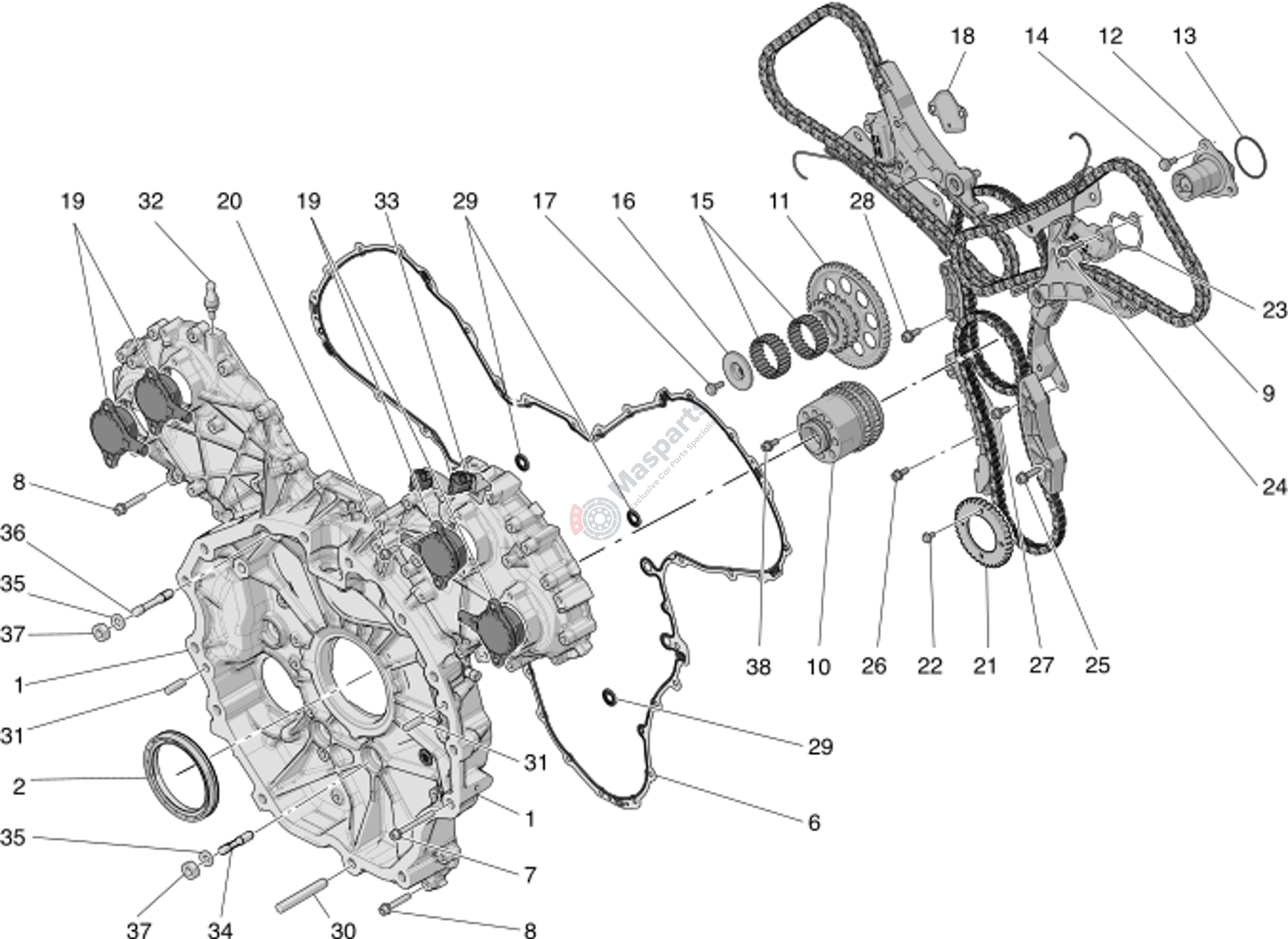

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670054289 | Rear Distribution Cover |
$586.80 |
|
|
| 2 | M-670051267 | Gasket |
$31.81 |
|
|
| 6 | M-670054416 | Timing Cover Gasket |
$107.09 |
|
|
| 7 | M-670051115 | Screw |
$2.23 |
|
|
| 8 | M-670051111 | Screw |
$2.08 |
|
|
| 9 | M-670053725 | Distribution Complete |
$613.25 |
|
|
| 10 | M-670053716 | Gear Shaft |
$191.03 |
|
|
| 11 | M-670053986 | Gear Shaft |
$157.72 |
|
|
| 12 | M-670050184 | Support |
$95.21 |
|
|
| 13 | M-670050416 | O-Ring |
$2.54 |
|
|
| 14 | M-670050158 | Screw |
$8.06 |
|
|
| 15 | M-670050109 | Bearing Cage |
$13.39 |
|
|
| 16 | M-670050185 | Bearing Spacer |
$15.11 |
|
|
| 17 | M-670050158 | Screw |
$8.06 |
|
|
| 18 | M-670050993 | Spacer |
$1.87 |
|
|
| 19 | M-670053475 | Variable Valve Actuator |
$91.11 |
|
|
| 20 | M-670051106 | Screw |
$2.33 |
|
|
| 21 | M-670050973 | Oil Pump Gear |
$81.32 |
|
|
| 22 | M-670050159 | Screw |
$5.11 |
|
|
| 23 | M-670050999 | Gasket |
$2.78 |
|
|
| 24 | M-670050150 | Screw |
$2.63 |
|
|
| 25 | M-670050020 | Screw |
$2.63 |
|
|
| 26 | M-670050148 | Screw |
$2.63 |
|
|
| 27 | M-670050147 | Screw |
$2.63 |
|
|
| 28 | M-670050149 | Screw |
$2.63 |
|
|
| 29 | M-670051123 | Gasket |
$7.87 |
|
|
| 31 | M-675001406 | Stud |
$4.05 |
|
|
| 32 | M-670050027 | Stud |
$8.90 |
|
|
| 33 | M-670156747 | Bracket |
$13.17 |
|
|
| 34 | M-670050141 | Rivet |
$24.14 |
|
|
| 35 | M-670051317 | Washer |
$4.24 |
|
|
| 36 | M-670050140 | Rivet |
$22.23 |
|
|
| 38 | M-670051281 | Screw |
$2.00 |
|
