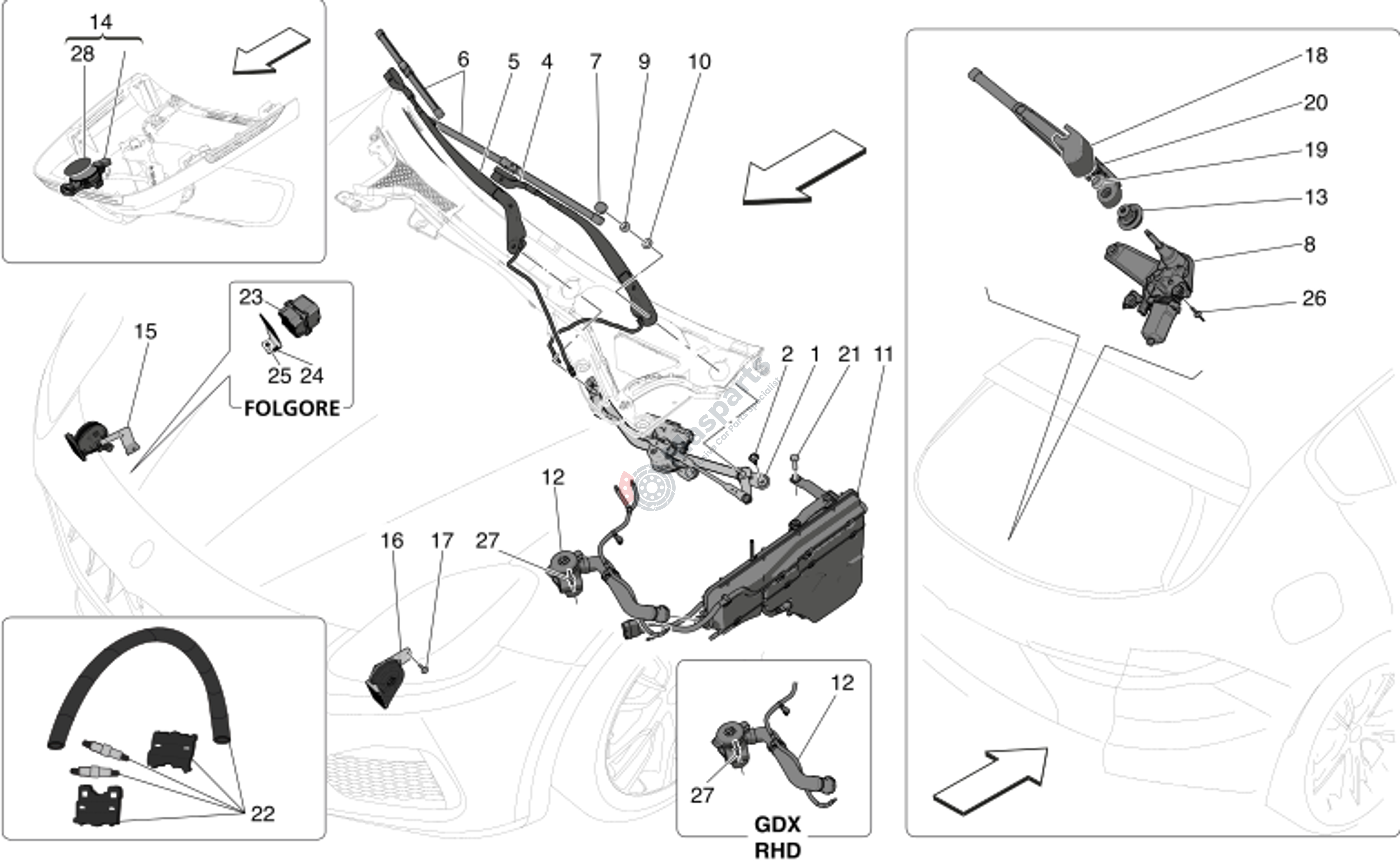

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670175173 | Lhd Windscreen Wiper Set |
$197.75 |
|
|
| 2 | M-675001539 | Screw |
$0.90 |
|
|
| 6 | M-673012892 | Grecale Wiper Blades Kit |
$60.92 |
|
|
| 7 | M-670007188 | Protection Boot. |
$1.14 |
|
|
| 8 | M-675001519 | Rear Liftgate Windscreen Wip |
$114.28 |
|
|
| 9 | M-675001067 | Nut |
$1.44 |
|
|
| 10 | M-675001068 | Washer |
$1.39 |
|
|
| 11 | M-675001665 | Windscreen Washer Tank |
$161.08 |
|
|
| 12 | M-670213360 | Lhd Pipe |
$68.11 |
|
|
| 13 | M-670035110 | Gasket |
$11.40 |
|
|
| 15 | M-670219967 | High Tone Horn |
$45.55 |
|
|
| 16 | M-670219965 | Low Tone Horn |
$45.55 |
|
|
| 17 | M-675001317 | Screw |
$1.87 |
|
|
| 18 | M-670037445 | Cap |
$10.30 |
|
|
| 19 | M-675000582 | Nut |
$1.28 |
|
|
| 20 | M-670157340 | Liftgate Wiper Arm |
$105.09 |
|
|
| 21 | M-675001539 | Screw |
$0.90 |
|
|
| 22 | M-675002344 | Repairing Kit Hose Rear Wash |
$95.51 |
|
|
| 26 | M-675000593 | Rivet |
$1.52 |
|
|
| 27 | M-675002055 | Rivet |
$1.44 |
|
