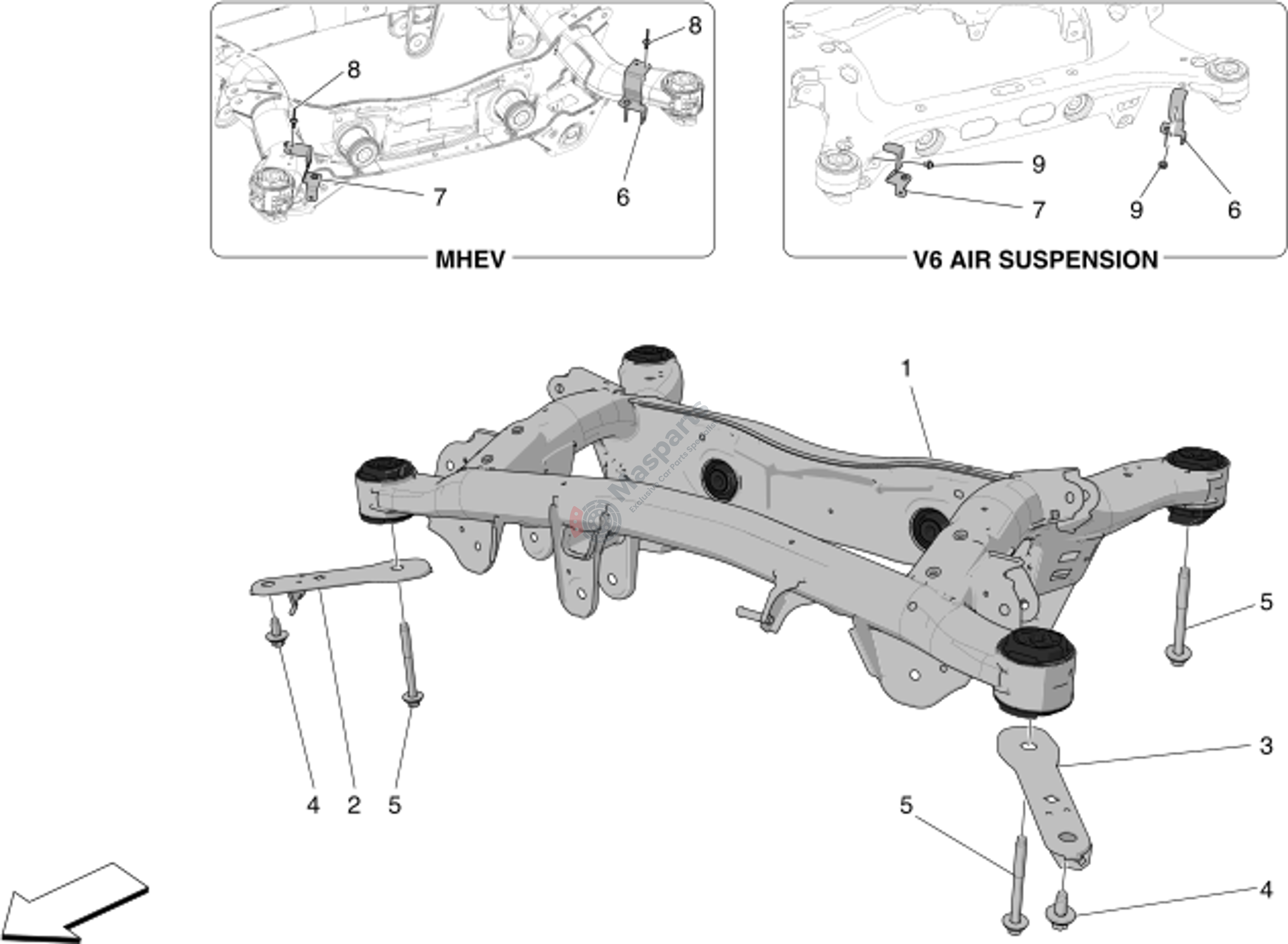

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670295727 | Rear Chassis Assembly |
$2,098.91 |
|
|
| 2 | M-675001813 | Right Bracket |
$9.47 |
|
|
| 3 | M-675001812 | Left Bracket |
$10.34 |
|
|
| 4 | M-675001534 | Screw |
$2.43 |
|
|
| 5 | M-670182079 | Screw |
$6.56 |
|
|
| 6 | M-670176769 | Right-Hand Tank Cover Bracke |
$13.76 |
|
|
| 7 | M-670176767 | Left Tank Cover Bracket |
$13.76 |
|
|
| 9 | M-675001016 | Screw |
$1.40 |
|
