Diagram image not available

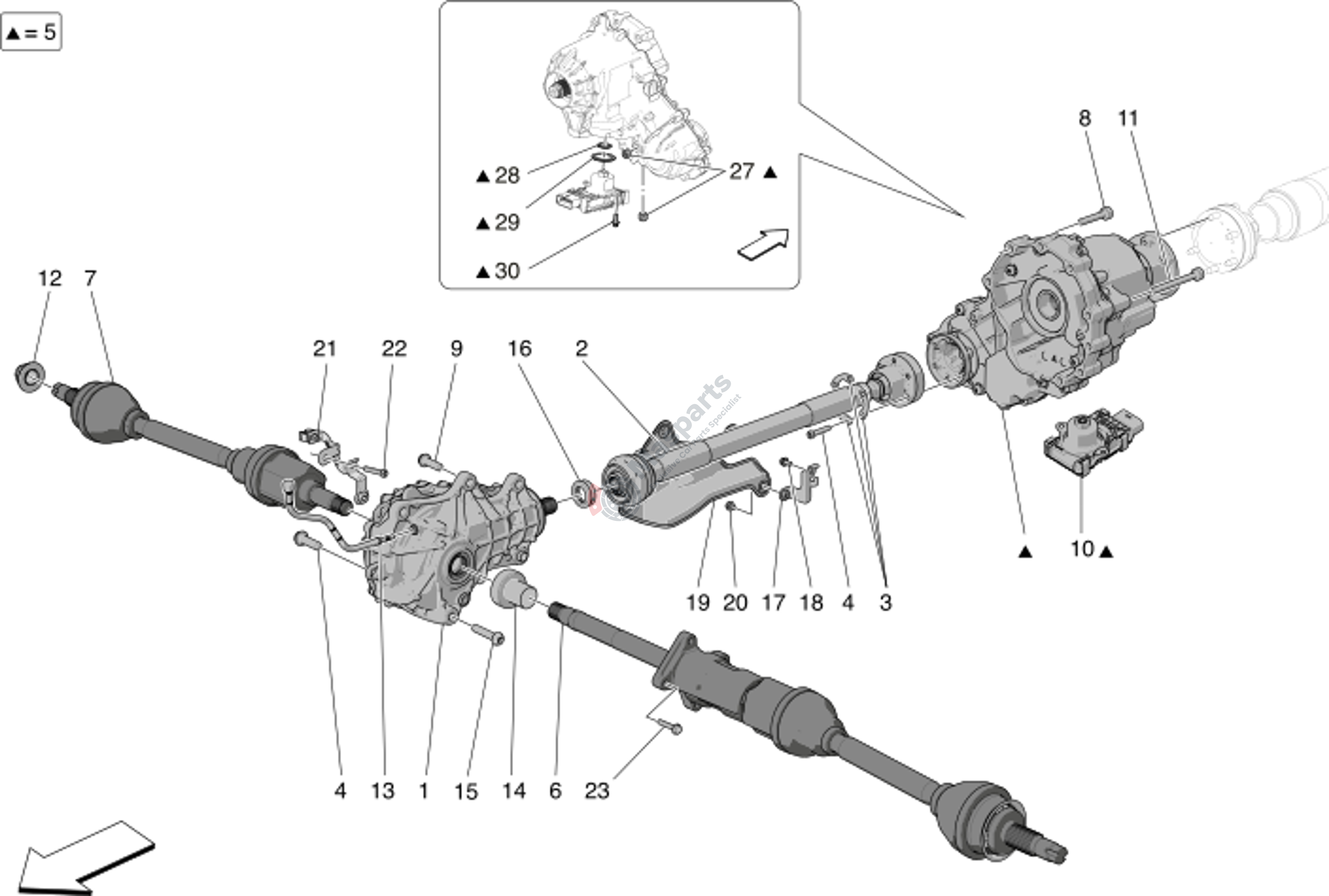

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001937 | Front Differential |
$1,908.12 |
|
|
| 2 | M-46341888 | Drive Shaft |
$613.70 |
|
|
| 3 | M-670003772 | Plate |
$3.73 |
|
|
| 4 | M-670302678 | Screw |
$2.34 |
|
|
| 5 | M-670154265 | Awd Transfer Case |
$1,492.25 |
|
|
| 6 | M-675001724 | Axle Shaft |
$370.14 |
|
|
| 7 | M-675001722 | Front Axle Shaft |
$547.76 |
|
|
| 8 | M-675001849 | Screw |
$2.56 |
|
|
| 9 | M-675001859 | Screw |
$2.98 |
|
|
| 10 | M-670175707 | Transfer Case Control Unit |
$552.80 |
|
|
| 11 | M-675001850 | Screw |
$3.22 |
|
|
| 12 | M-675000138 | Nut |
$9.03 |
|
|
| 13 | M-675002077 | Tube |
$30.61 |
|
|
| 14 | M-670051525 | Bushing |
$27.35 |
|
|
| 15 | M-675002078 | Screw |
$5.95 |
|
|
| 16 | M-675000719 | Gasket |
$2.87 |
|
|
| 17 | M-675001861 | Bracket |
$9.48 |
|
|
| 18 | M-675001931 | Screw |
$1.36 |
|
|
| 19 | M-46347065 | Heat Shield |
$14.25 |
|
|
| 20 | M-675000102 | Screw |
$2.67 |
|
|
| 21 | M-670052920 | Bracket |
$17.61 |
|
|
| 22 | M-670051104 | Screw |
$2.25 |
|
|
| 23 | M-675001909 | Screw |
$1.47 |
|
|
| 27 | M-673015767 | Oil Plug |
$2.44 |
|
|
| 28 | M-673015768 | Seal O-Ring |
$1.53 |
|
|
| 29 | M-673015772 | Sealing |
$4.30 |
|
|
| 30 | M-673015774 | Ecu Fastener |
$2.53 |
|
