Diagram image not available

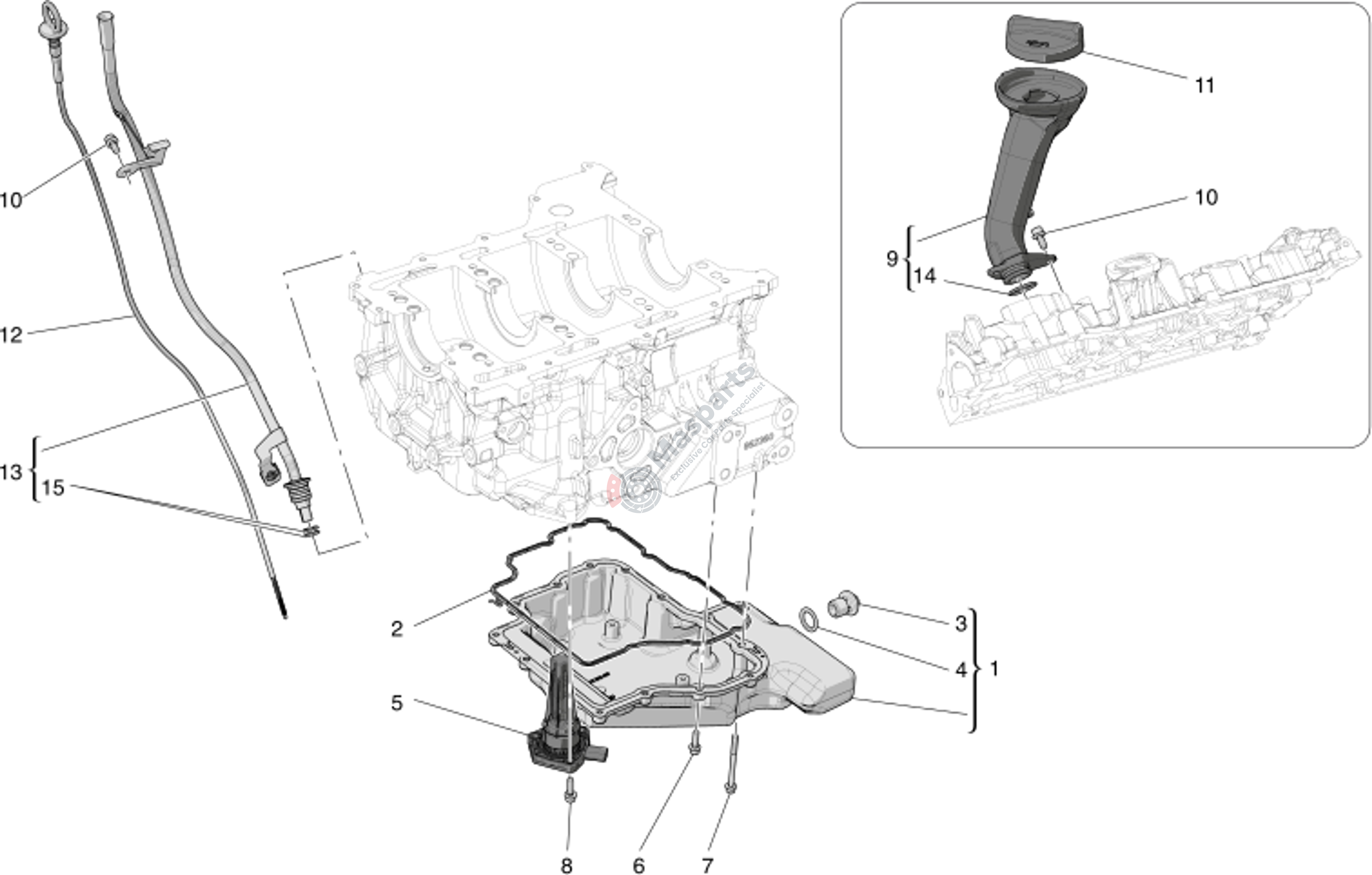

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670051742 | Oil Cup |
$487.30 |
|
|
| 2 | M-670051296 | Gascket |
$61.40 |
|
|
| 3 | M-670050350 | Oil Cap |
$24.95 |
|
|
| 4 | M-670050349 | Gasket |
$24.95 |
|
|
| 5 | M-670053268 | Oil Sensor |
$47.56 |
|
|
| 6 | M-670051108 | Screw |
$2.27 |
|
|
| 7 | M-670051117 | Screw |
$2.39 |
|
|
| 8 | M-670051108 | Screw |
$2.27 |
|
|
| 9 | M-670053217 | Plug |
$49.90 |
|
|
| 10 | M-670051104 | Screw |
$2.21 |
|
|
| 11 | M-670050051 | Plug |
$12.87 |
|
|
| 12 | M-670053218 | Oil Level Stick |
$21.73 |
|
|
| 13 | M-670054294 | Tube |
$52.44 |
|
|
| 14 | M-14457881 | Gasket |
$2.28 |
|
|
| 15 | M-673013792 | O-Ring 1/44572/81 |
$9.88 |
|
