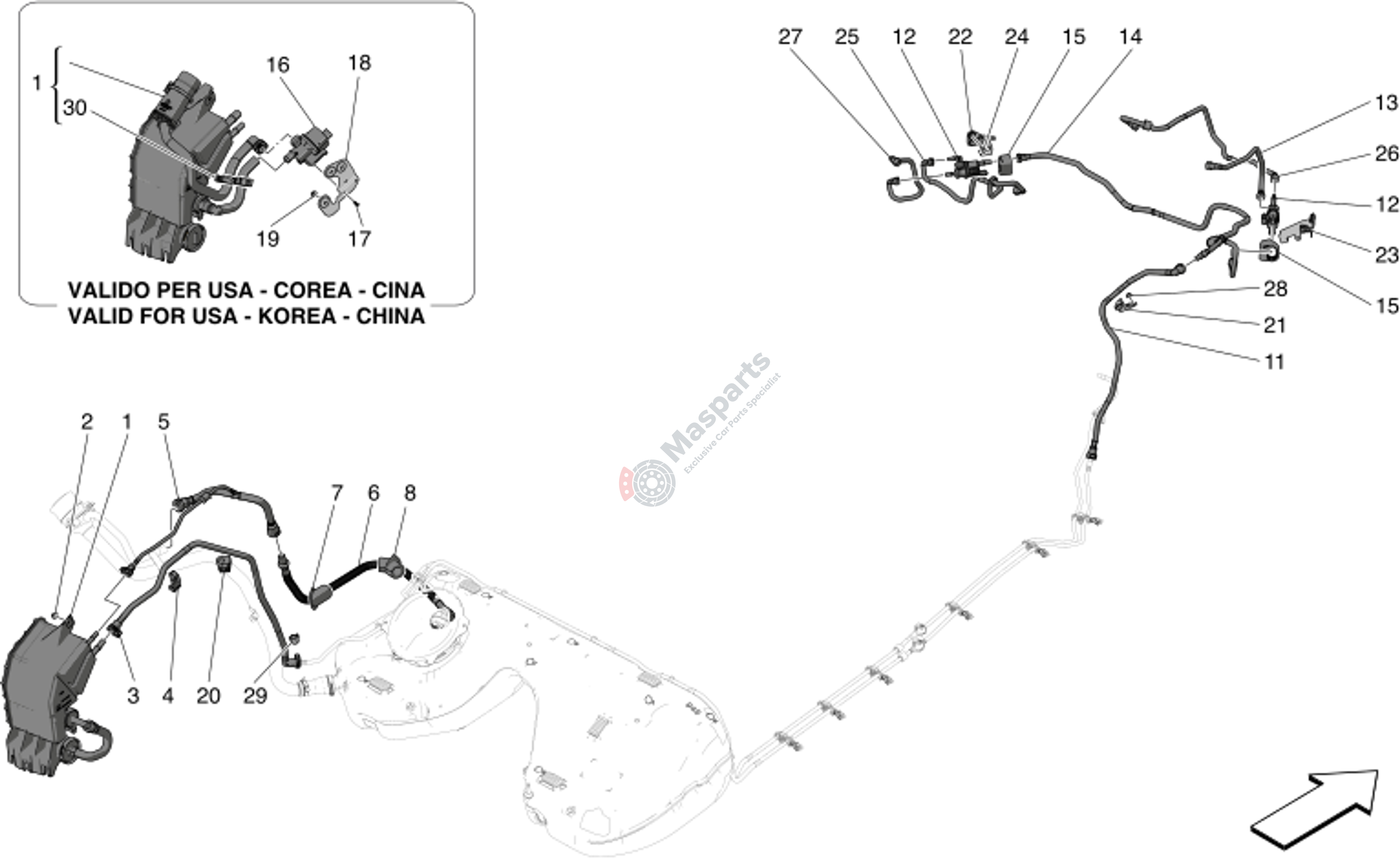

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001694 | Fuel Vapor Filter |
$165.96 |
|
|
| 2 | M-675001063 | Nut |
$1.24 |
|
|
| 3 | M-670160939 | Tube |
$36.10 |
|
|
| 4 | M-675001782 | Retaining Clip |
$2.15 |
|
|
| 5 | M-670160941 | Tube |
$57.70 |
|
|
| 6 | M-675001672 | Tube |
$34.79 |
|
|
| 7 | M-675001783 | Pad |
$9.33 |
|
|
| 8 | M-675001784 | Gasket |
$8.45 |
|
|
| 11 | M-670160948 | Tube |
$59.12 |
|
|
| 12 | M-670162028 | Solenoid Valve |
$39.77 |
|
|
| 13 | M-675002006 | Canister Vapor System |
$51.20 |
|
|
| 14 | M-675001650 | Tube |
$229.23 |
|
|
| 15 | M-675001080 | Rubber |
$8.45 |
|
|
| 20 | M-670181757 | Retaining Clip |
$6.70 |
|
|
| 21 | M-675001575 | Fuel Pipe Bracket |
$4.41 |
|
|
| 22 | M-675002033 | Solenoid Valve Bracket |
$26.16 |
|
|
| 23 | M-675002000 | Canister Bracket Right |
$32.38 |
|
|
| 24 | M-675001127 | Screw |
$1.11 |
|
|
| 25 | M-670156746 | Tube |
$41.48 |
|
|
| 26 | M-675002002 | Canister Vapor System |
$74.07 |
|
|
| 27 | M-675002008 | Canister Vapor System |
$74.94 |
|
|
| 28 | M-675001063 | Nut |
$1.24 |
|
|
| 29 | M-675001802 | Retaining Clip |
$1.43 |
|
