Diagram image not available

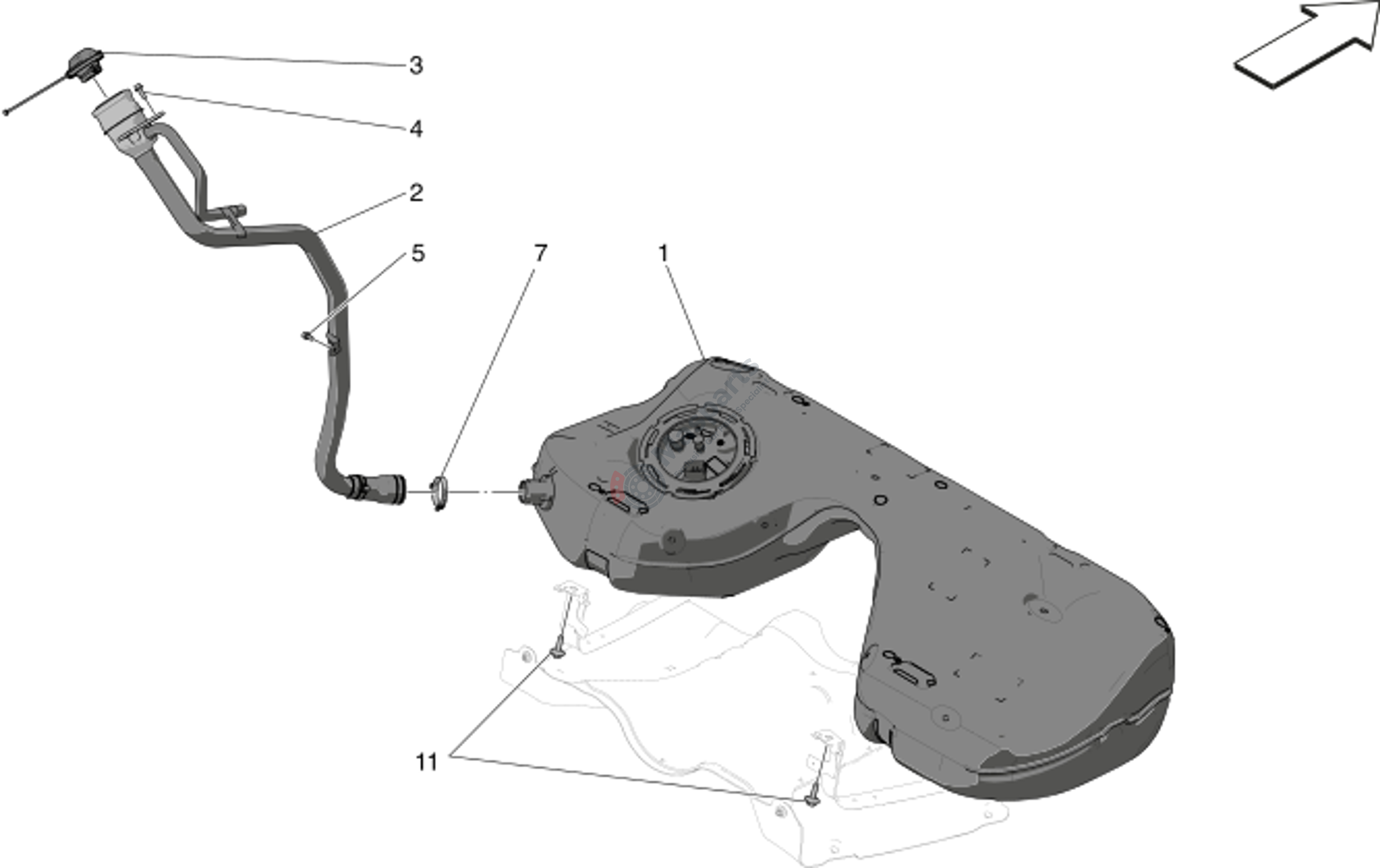

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001696 | Fuel Tank |
$1,198.67 |
|
|
| 2 | M-670156358 | Fuel Filler Neck |
$230.21 |
|
|
| 3 | M-675000663 | Fuel Tank Plug |
$61.24 |
|
|
| 4 | M-675001639 | Screw |
$1.65 |
|
|
| 5 | M-675001815 | Screw |
$1.17 |
|
|
| 7 | M-675002032 | Yellow Elastic Collar |
$3.85 |
|
|
| 11 | M-675001800 | Screw |
$1.07 |
|
