The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

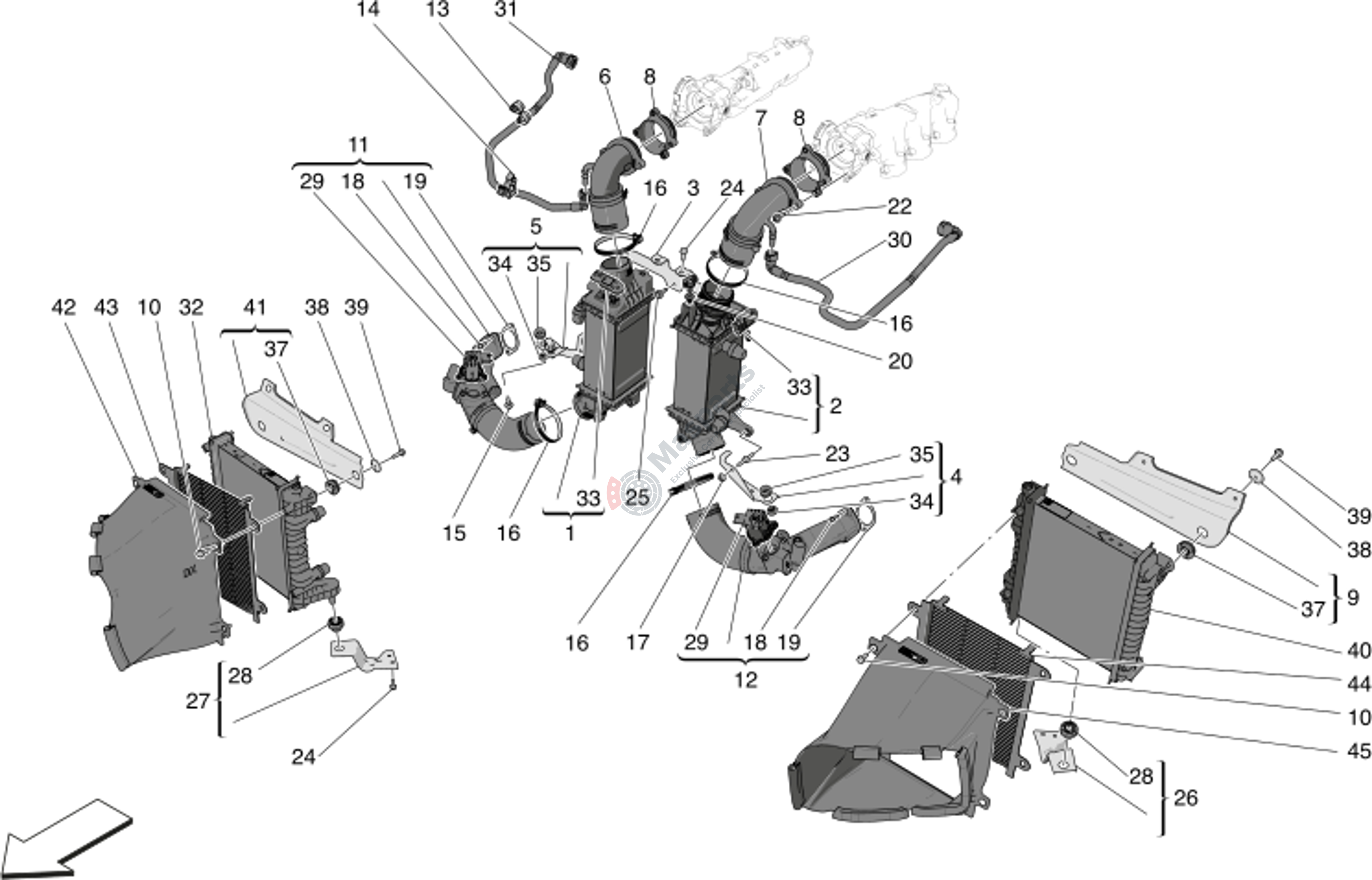

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001657 | Intercooler |
$474.68 |
|
|
| 2 | M-675001656 | Intercooler |
$416.30 |
|
|
| 3 | M-675001573 | Bracket |
$14.30 |
|
|
| 4 | M-675001736 | Bracket Intercooler Tube |
$19.10 |
|
|
| 5 | M-675001655 | Bracket Intercooler Tube |
$18.51 |
|
|
| 6 | M-675001582 | Sleeve |
$249.78 |
|
|
| 7 | M-675001577 | Sleeve |
$246.91 |
|
|
| 8 | M-675001658 | Connection |
$75.86 |
|
|
| 9 | M-675001990 | Support |
$43.73 |
|
|
| 10 | M-675002334 | Screw |
$14.19 |
|
|
| 11 | M-675001660 | Sleeve |
$430.66 |
|
|
| 12 | M-675001661 | Sleeve |
$419.17 |
|
|
| 13 | M-675001998 | 2-Way Spring |
$1.97 |
|
|
| 14 | M-675001999 | 3-Way Spring |
$4.80 |
|
|
| 15 | M-675001078 | Screw |
$1.94 |
|
|
| 16 | M-675000362 | Collar |
$4.76 |
|
|
| 17 | M-675001063 | Nut |
$1.22 |
|
|
| 18 | M-675000242 | Screw |
$3.31 |
|
|
| 19 | M-675001961 | Gasket |
$27.65 |
|
|
| 20 | M-675001761 | Tube Retaining Clip |
$9.12 |
|
|
| 22 | M-675001034 | Screw |
$1.63 |
|
|
| 23 | M-675001162 | Screw |
$2.40 |
|
|
| 24 | M-675001119 | Screw |
$0.78 |
|
|
| 25 | M-675001070 | Screw |
$1.40 |
|
|
| 26 | M-675001572 | Left Bracket |
$18.13 |
|
|
| 27 | M-675001571 | Right Bracket |
$14.48 |
|
|
| 28 | M-675000545 | Rubber Bushing |
$2.78 |
|
|
| 29 | M-675001051 | Modular Solenoid Valve |
$73.44 |
|
|
| 30 | M-675002009 | Canister Vapor System |
$64.57 |
|
|
| 31 | M-675002001 | Tube |
$44.57 |
|
|
| 32 | M-675001056 | Intercooler |
$270.84 |
|
|
| 33 | M-675000014 | Pressure Sensor |
$119.10 |
|
|
| 34 | M-675000017 | Spacer |
$8.01 |
|
|
| 35 | M-675000016 | Rubber Bushing |
$5.65 |
|
|
| 37 | M-675000201 | Small Block. |
$9.18 |
|
|
| 38 | M-675000409 | Washer |
$2.42 |
|
|
| 39 | M-675001048 | Screw |
$0.70 |
|
|
| 40 | M-675001057 | Engine Intercool Radiator |
$307.20 |
|
|
| 41 | M-675001969 | Bracket |
$44.28 |
|
|
| 42 | M-670178987 | Rh Conveyor |
$68.65 |
|
|
| 43 | M-670161248 | Rh Radiator Grille |
$35.06 |
|
|
| 44 | M-670161264 | Lh Radiator Grille |
$35.06 |
|
|
| 45 | M-670178985 | Lh Conveyur |
$68.94 |
|
