Diagram image not available

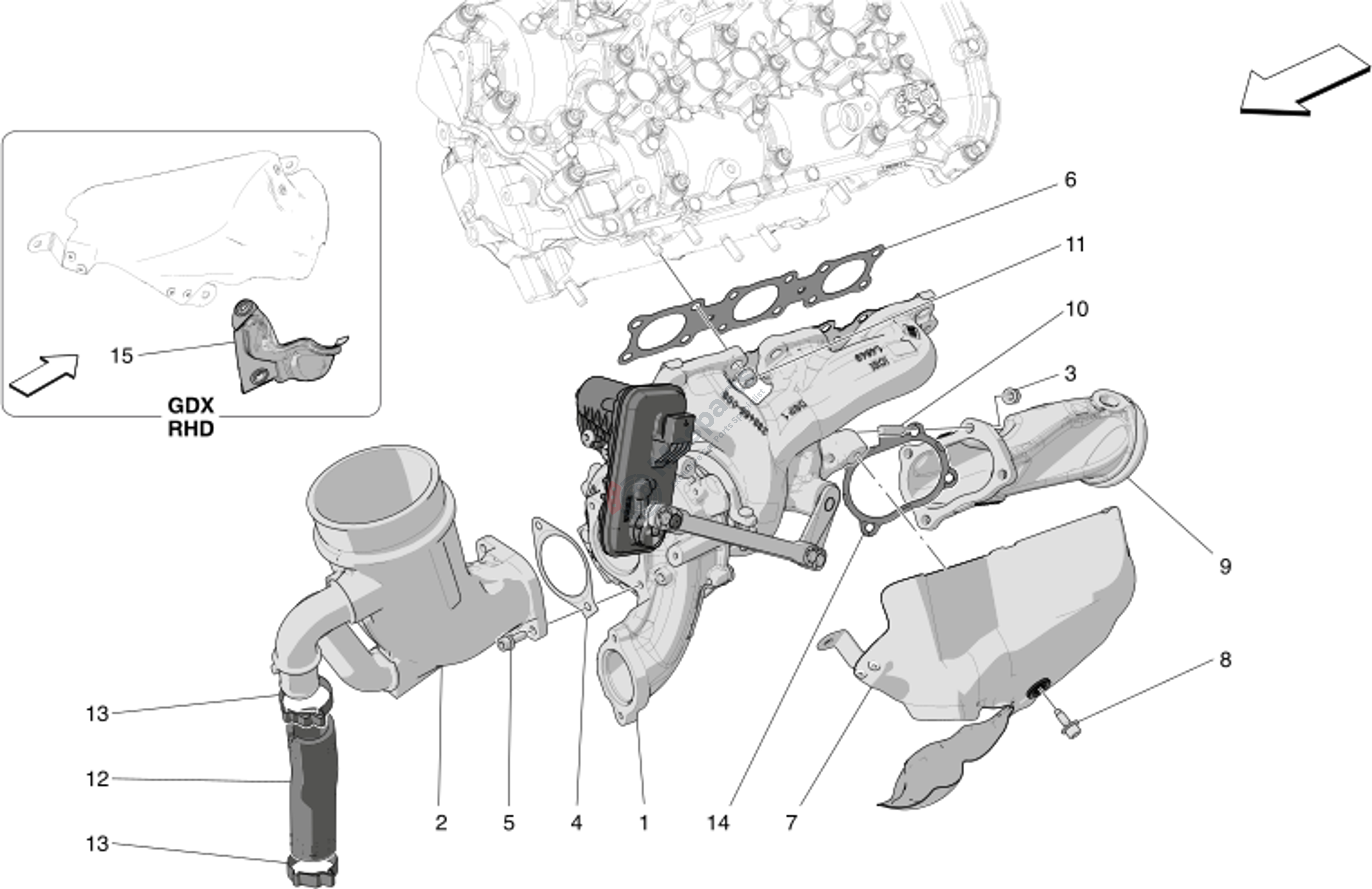

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670054115 | Turbocharger |
$1,624.22 |
|
|
| 2 | M-670054200 | Tube |
$154.78 |
|
|
| 3 | M-670050454 | Nut |
$3.79 |
|
|
| 4 | M-670050456 | Gasket |
$4.49 |
|
|
| 5 | M-670051107 | Screw |
$1.88 |
|
|
| 6 | M-670053635 | Exhaust Manifold Gasket |
$60.76 |
|
|
| 7 | M-670156741 | Rh Exhaust Cover |
$48.75 |
|
|
| 8 | M-675001477 | Screw |
$0.81 |
|
|
| 9 | M-670052837 | Tube |
$225.31 |
|
|
| 10 | M-670051756 | Rivet |
$2.89 |
|
|
| 11 | M-670050454 | Nut |
$3.79 |
|
|
| 12 | M-675002003 | Tube |
$33.87 |
|
|
| 13 | M-675001354 | Collar |
$1.48 |
|
|
| 14 | M-670052911 | Gascket |
$44.01 |
|
