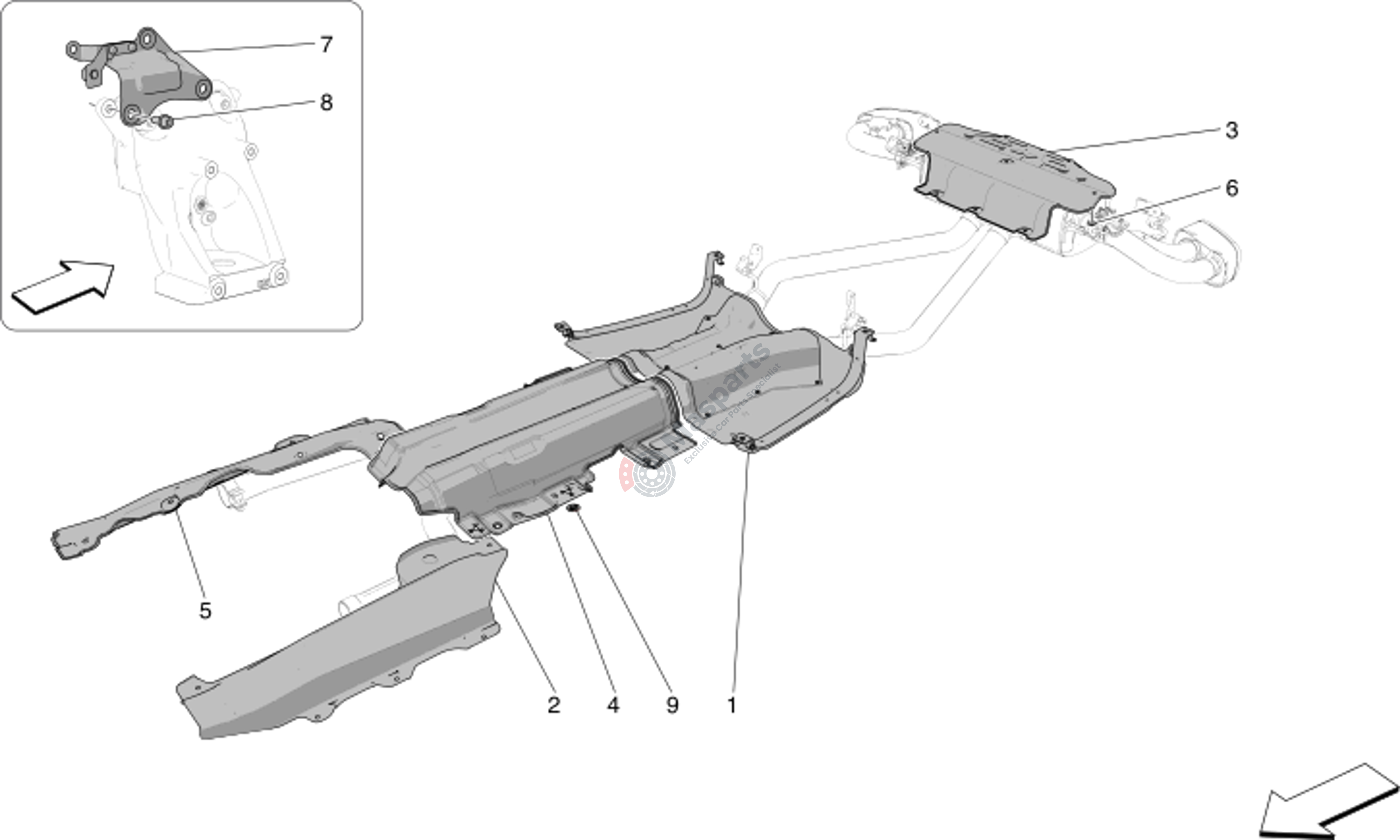

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001733 | Heat Cover |
€244,72 |
|
|
| 2 | M-675001986 | Lh Front Heat Cover |
€107,64 |
|
|
| 3 | M-675001622 | Heat Cover |
€29,90 |
|
|
| 4 | M-670154175 | Drive Shaft Shield |
€34,59 |
|
|
| 5 | M-670156596 | Rh Front Heat Cover |
€17,48 |
|
|
| 6 | M-675000716 | Special Nut |
€1,32 |
|
|
| 7 | M-670051356 | Shell |
€25,58 |
|
|
| 8 | M-670051105 | Screw |
€2,03 |
|
|
| 9 | M-675000047 | Washer |
€4,88 |
|
