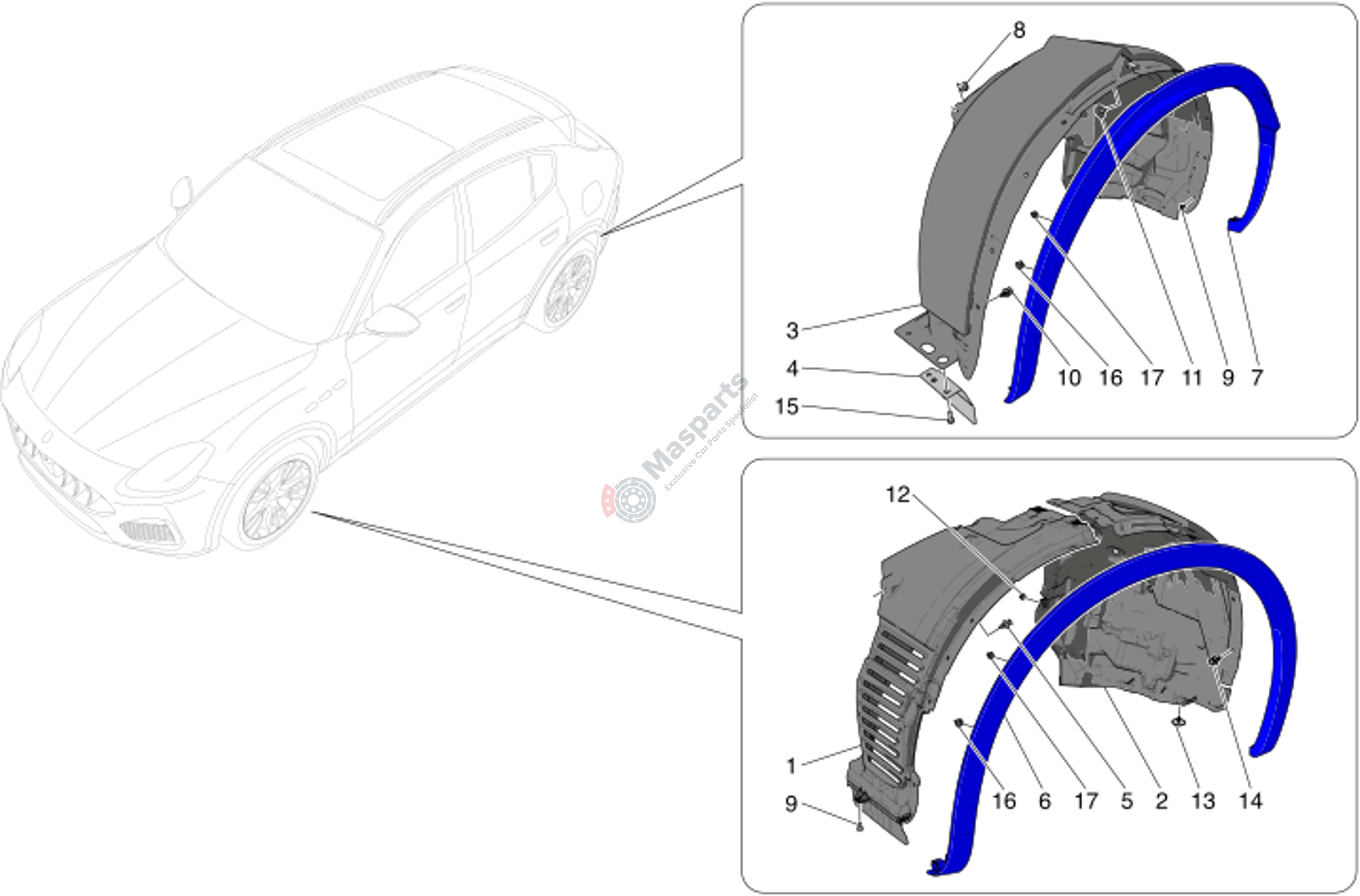

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670182086 | Rh Front Wheelhouse Guard |
€78,64 |
|
|
| 2 | M-670182347 | Right-Hand Rear Wheel Guard |
€78,64 |
|
|
| 3 | M-670182349 | Right-Hand Rear Wheel Guard |
€78,64 |
|
|
| 4 | M-670156981 | Rh Guard |
€3,51 |
|
|
| 5 | M-675000294 | Pin |
€2,13 |
|
|
| 8 | M-675001711 | Nut |
€0,75 |
|
|
| 9 | M-675001390 | Screw |
€1,73 |
|
|
| 10 | M-675001447 | Pin |
€1,25 |
|
|
| 11 | M-670007383 | Fastening Pin |
€6,90 |
|
|
| 12 | M-675001926 | Screw |
€1,13 |
|
|
| 13 | M-675000818 | Screw |
€1,49 |
|
|
| 14 | M-675001608 | Plastic Snap Fastener |
€0,83 |
|
|
| 15 | M-675001932 | Screw M6X25 |
€0,91 |
|
|
| 16 | M-673014561 | Clip |
€2,29 |
|
|
| 17 | M-673014562 | Clip |
€2,29 |
|
