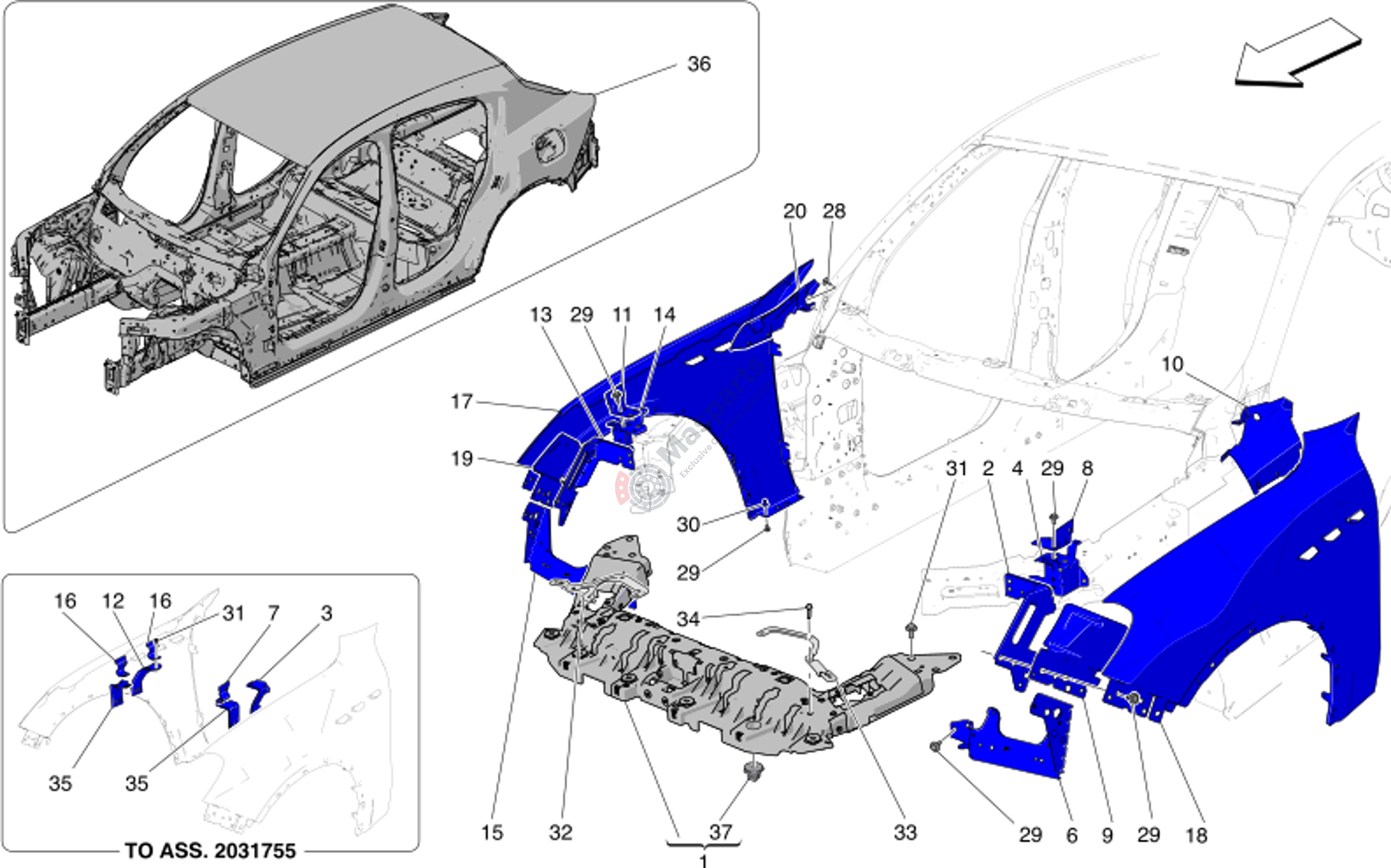

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670293088 | Upr Headlamp Support Crossme |
€385,90 |
|
|
| 2 | M-673014263 | Lh Mudguard Front Lower Rein |
€22,10 |
|
|
| 3 | M-670160092 | Lh Insert For Front Fender |
€8,53 |
|
|
| 4 | M-670217114 | Lh Front Fender Bracket |
€9,75 |
|
|
| 6 | M-673016705 | - LH Mudguard Support Bracket |
€26,50 |
|
|
| 7 | M-670221171 | Lh Mudguard Bracket |
€2,20 |
|
|
| 8 | M-670157320 | Lh Bracket |
€1,67 |
|
|
| 9 | M-670157342 | Lh Bracket |
€11,13 |
|
|
| 10 | M-670157318 | Lh Upper Report |
€10,58 |
|
|
| 12 | M-670160091 | Rh Insert For Front Fender |
€8,53 |
|
|
| 13 | M-673014200 | Reinforcement Compl. Inf.Fen |
€22,10 |
|
|
| 14 | M-670217112 | Rh Front Fender Bracket |
€9,75 |
|
|
| 16 | M-670221170 | Bracket |
€3,86 |
|
|
| 28 | M-675001750 | Screw |
€0,98 |
|
|
| 29 | M-675001317 | Screw |
€1,56 |
|
|
| 30 | M-675002108 | Rivet |
€0,83 |
|
|
| 31 | M-675002124 | Screw |
€1,80 |
|
|
| 32 | M-670177870 | Bracket |
€37,63 |
|
|
| 33 | M-670182557 | Bracket |
€36,25 |
|
|
| 34 | M-675001933 | Screw |
€1,25 |
|
|
| 35 | M-673014207 | Bracket Compl. Fix. Paraf. D |
€3,55 |
|
|
| 37 | M-670005535 | Block |
€6,26 |
|
