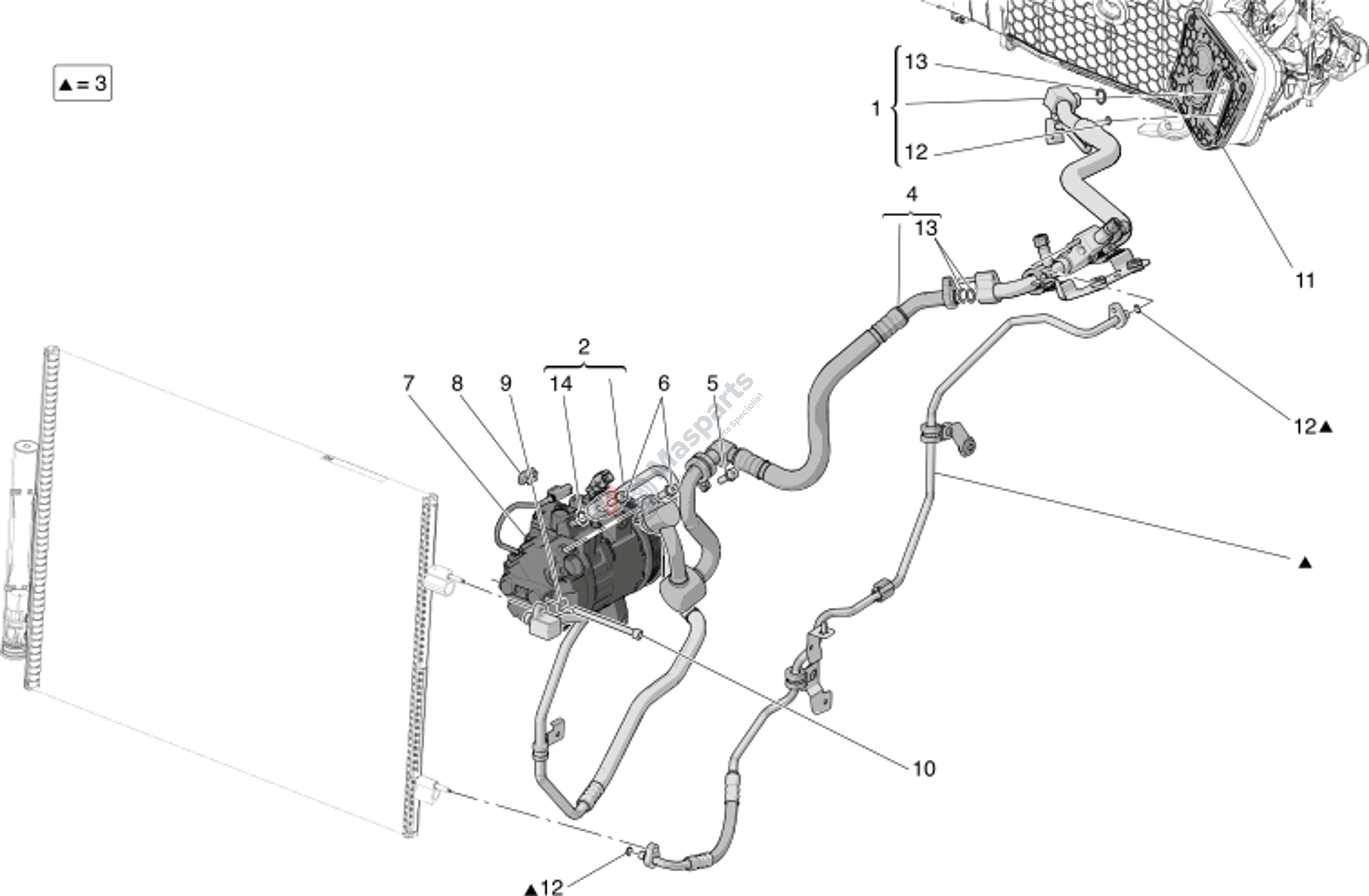

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675002234 | Lhd Evap-Union Pipe V6 |
$151.25 |
|
|
| 2 | M-675002076 | Tube |
$103.13 |
|
|
| 3 | M-675001512 | Lhd Condenser-Evap Pipe V6 |
$77.90 |
|
|
| 4 | M-670156433 | Tube |
$112.95 |
|
|
| 5 | M-675000104 | Screw |
$1.58 |
|
|
| 6 | M-670051450 | Screw |
$2.64 |
|
|
| 7 | M-675002075 | Compressor |
$1,276.83 |
|
|
| 8 | M-675000355 | Clip |
$0.99 |
|
|
| 9 | M-675000690 | Washer |
$1.37 |
|
|
| 10 | M-675002081 | Screw |
$2.43 |
|
|
| 11 | M-675001734 | A/C Gasket |
$12.01 |
|
|
| 12 | M-675000119 | O-Ring 68X187 |
$1.99 |
|
|
| 13 | M-675000306 | O-Ring 136X243 |
$1.96 |
|
|
| 14 | M-675001987 | O Ring |
$7.93 |
|
