Diagram image not available

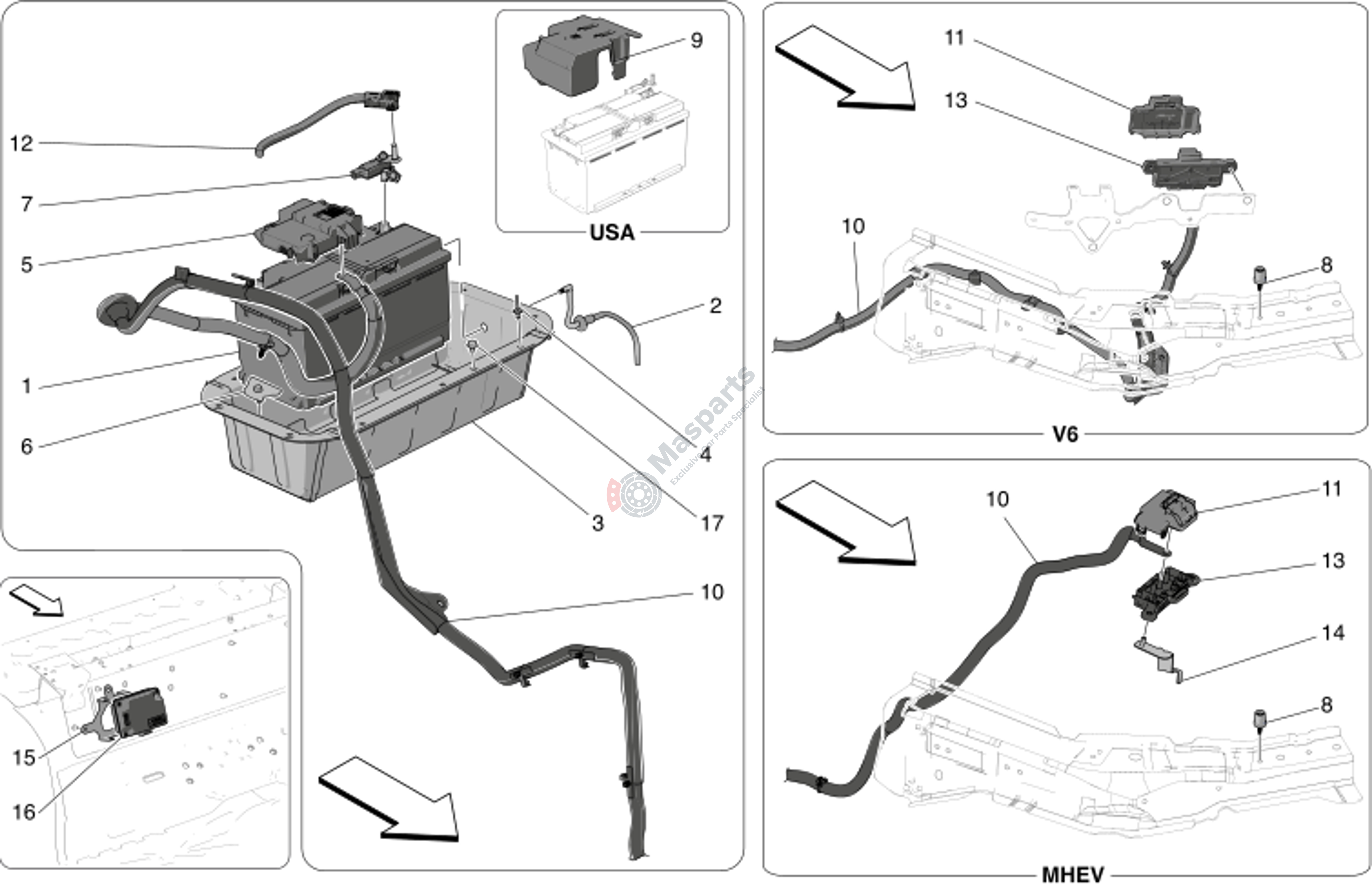

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675002117 | Battery Vent Pipe |
€9,01 |
|
|
| 3 | M-670157482 | Battery Housing Assembly |
€85,19 |
|
|
| 4 | M-675002144 | Rivet |
€0,66 |
|
|
| 5 | M-670158275 | Fuse Battery Ecu |
€110,08 |
|
|
| 6 | M-675002126 | Battery Bracket |
€10,58 |
|
|
| 7 | M-675001320 | Battery Sensor |
€101,48 |
|
|
| 8 | M-675001470 | Pin |
€9,48 |
|
|
| 10 | M-670157668 | Positive Battery Cable |
€190,92 |
|
|
| 11 | M-675001229 | Control Unit Cover |
€7,91 |
|
|
| 12 | M-675001692 | Ground Cable |
€33,97 |
|
|
| 13 | M-670158304 | Derivation Box |
€28,89 |
|
|
| 16 | M-675001817 | Inverter Power Converter(230 |
€166,84 |
|
|
| 17 | M-670294943 | Screw |
€1,25 |
|
