Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

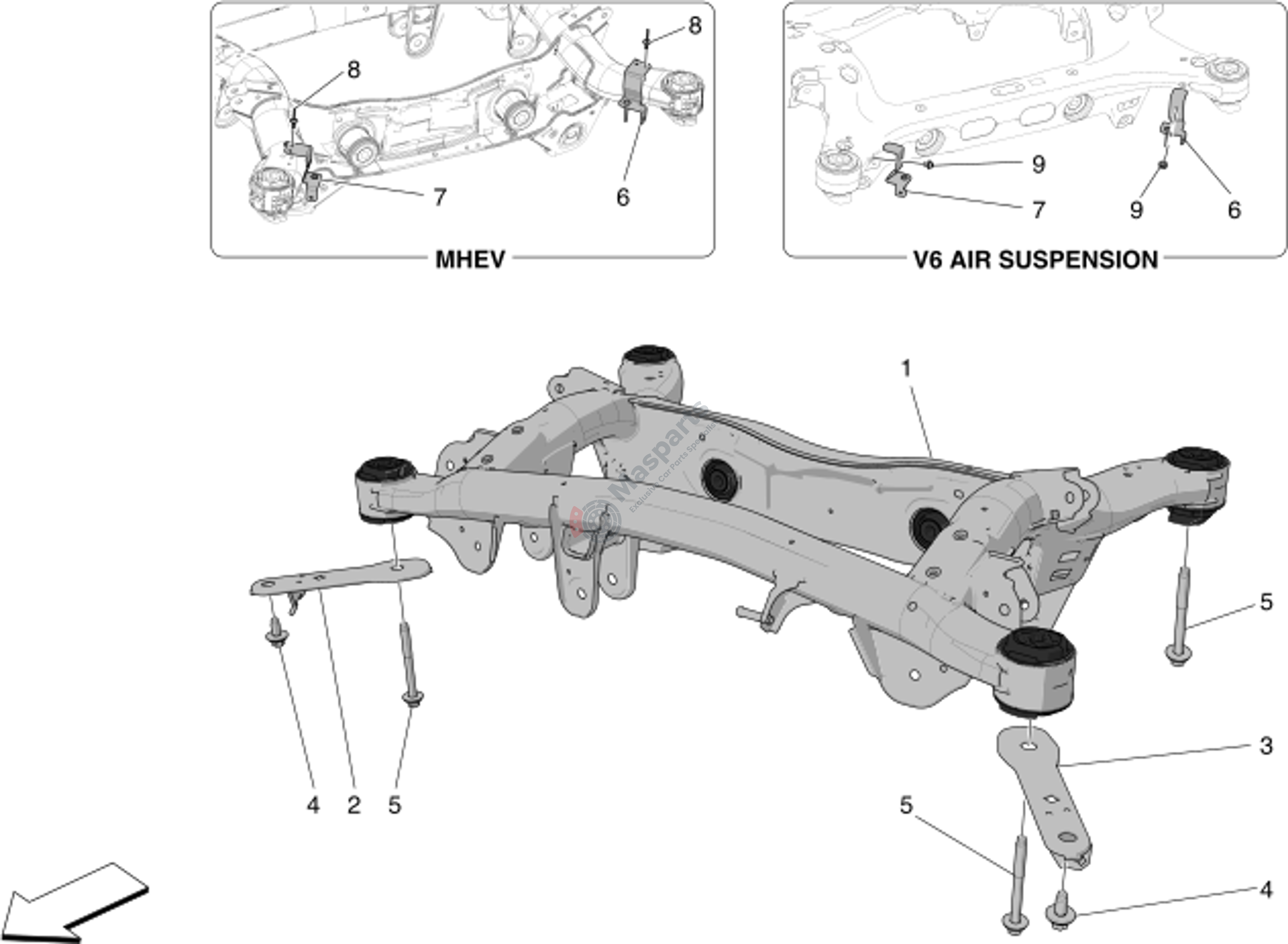

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670295727 | Rear Chassis Assembly |
€1.762,90 |
|
|
| 2 | M-675001813 | Right Bracket |
€7,91 |
|
|
| 3 | M-675001812 | Left Bracket |
€8,65 |
|
|
| 4 | M-675001534 | Screw |
€2,01 |
|
|
| 5 | M-670182079 | Screw |
€5,43 |
|
|
| 6 | M-670176769 | Right-Hand Tank Cover Bracke |
€11,50 |
|
|
| 7 | M-670176767 | Left Tank Cover Bracket |
€11,50 |
|
|
| 9 | M-675001016 | Screw |
€1,16 |
|
