Diagram image not available

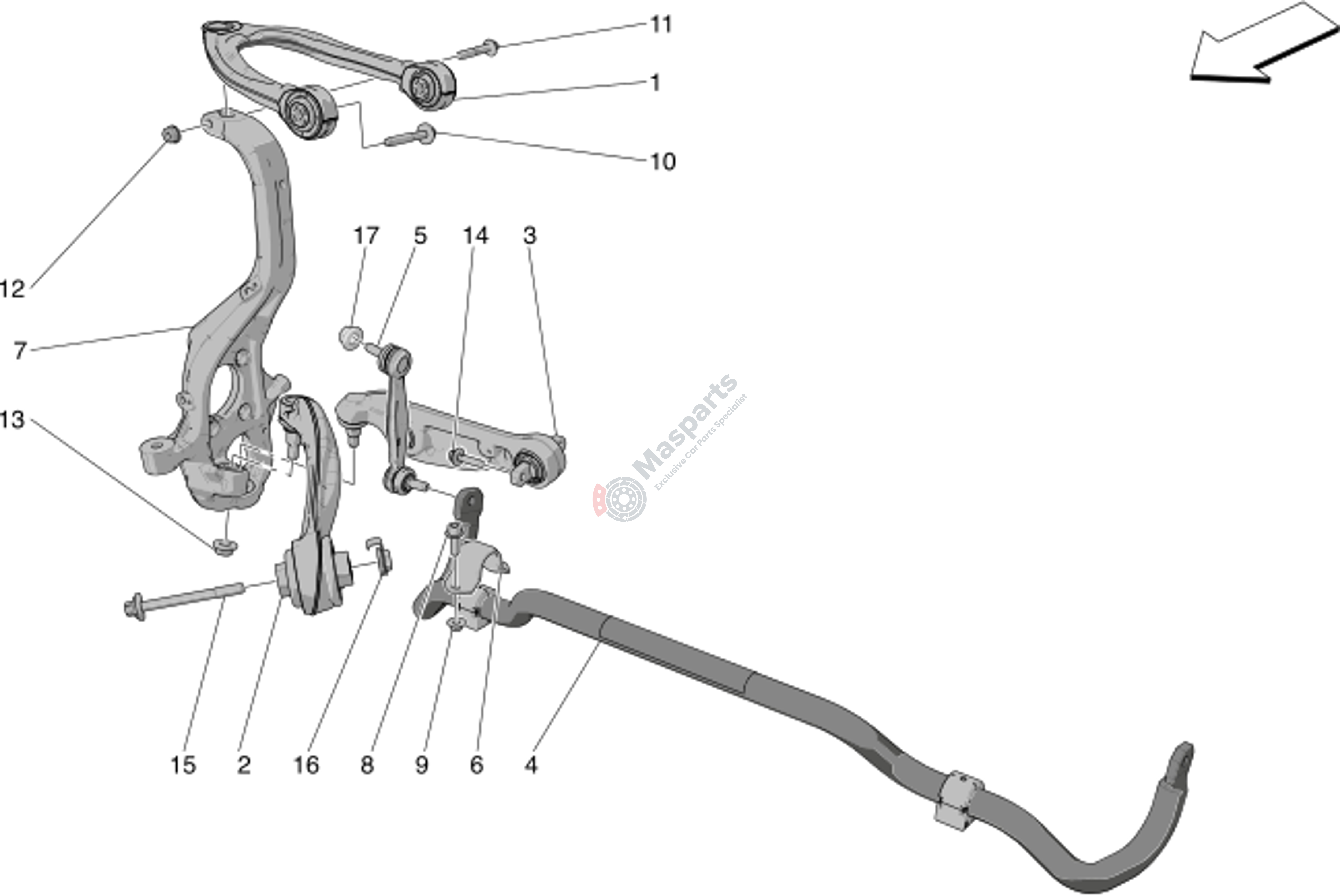

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001806 | Swinging Arm |
€145,35 |
|
|
| 2 | M-675002409 | Rh Shaft |
€46,75 |
|
|
| 3 | M-675001700 | Shaft |
€149,60 |
|
|
| 4 | M-670218794 | Shaft |
€158,10 |
|
|
| 5 | M-675001821 | Piston Rod |
€48,85 |
|
|
| 6 | M-675001071 | U-Bolt |
€11,68 |
|
|
| 7 | M-670217373 | Pillar |
€364,65 |
|
|
| 8 | M-675001015 | Screw |
€1,49 |
|
|
| 9 | M-675001509 | Flange Nut |
€1,54 |
|
|
| 10 | M-675001504 | Screw |
€2,24 |
|
|
| 11 | M-675001505 | Screw |
€1,75 |
|
|
| 12 | M-675000608 | Nut ˇ |
€1,35 |
|
|
| 13 | M-675001188 | Nut |
€4,97 |
|
|
| 14 | M-675001345 | Screw |
€1,87 |
|
|
| 15 | M-675001195 | Screw |
€8,28 |
|
|
| 16 | M-675001832 | Nut |
€7,45 |
|
|
| 17 | M-675001189 | Nut |
€1,93 |
|
