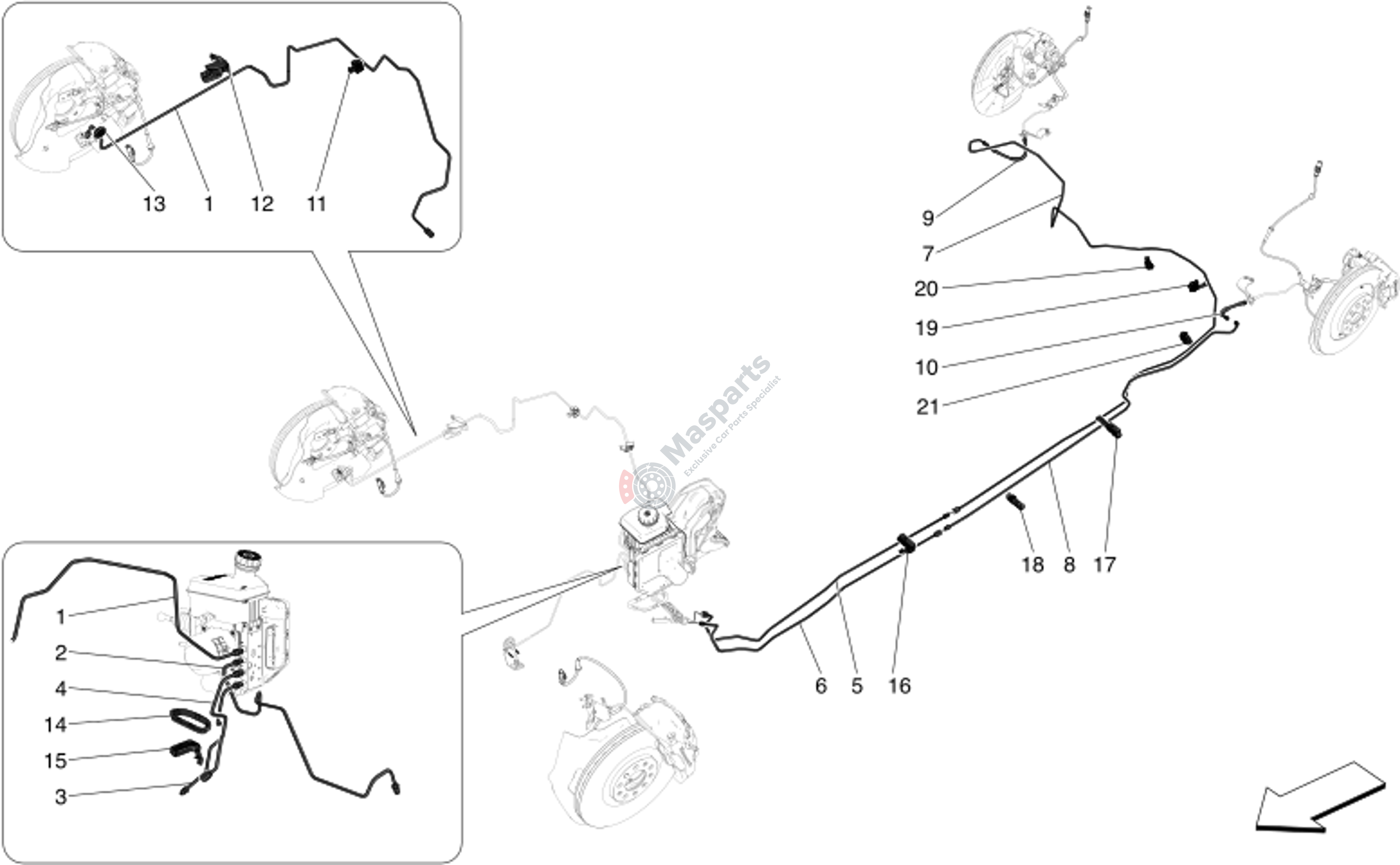

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670160536 | Rh Rigid Pipe |
$19.09 |
|
|
| 2 | M-675001621 | Lh Rigid Pipe |
$10.26 |
|
|
| 3 | M-675001757 | Rh Rigid Pipe |
$7.94 |
|
|
| 4 | M-675001756 | Lh Rigid Pipe |
$8.83 |
|
|
| 5 | M-675001743 | Rh Brake Tube |
$10.78 |
|
|
| 6 | M-675001744 | Lh Brake Tube |
$10.78 |
|
|
| 7 | M-670156758 | Rh Rear Breke Pipe |
$30.39 |
|
|
| 8 | M-670156757 | Rh Rear Breke Pipe |
$12.01 |
|
|
| 9 | M-675001878 | Flexible Pipe |
$8.83 |
|
|
| 10 | M-675001879 | Flexible Pipe |
$10.47 |
|
|
| 11 | M-675001901 | Retaining Clip |
$1.54 |
|
|
| 12 | M-675001664 | Fastening Clip |
$1.20 |
|
|
| 13 | M-675000281 | Gasket On Pillar |
$3.44 |
|
|
| 14 | M-675001715 | Gasket |
$2.87 |
|
|
| 15 | M-675001795 | Fastening Clip |
$3.11 |
|
|
| 16 | M-675001636 | Retaining Clip |
$4.36 |
|
|
| 17 | M-675001662 | Retaining Clip |
$4.04 |
|
|
| 18 | M-675001663 | Fastening Clip |
$4.59 |
|
|
| 19 | M-675001887 | Tube Retaining Clip |
$1.81 |
|
|
| 20 | M-670156764 | Retaining Clip |
$1.50 |
|
|
| 21 | M-670181542 | Fastening Clip |
$2.53 |
|
