The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

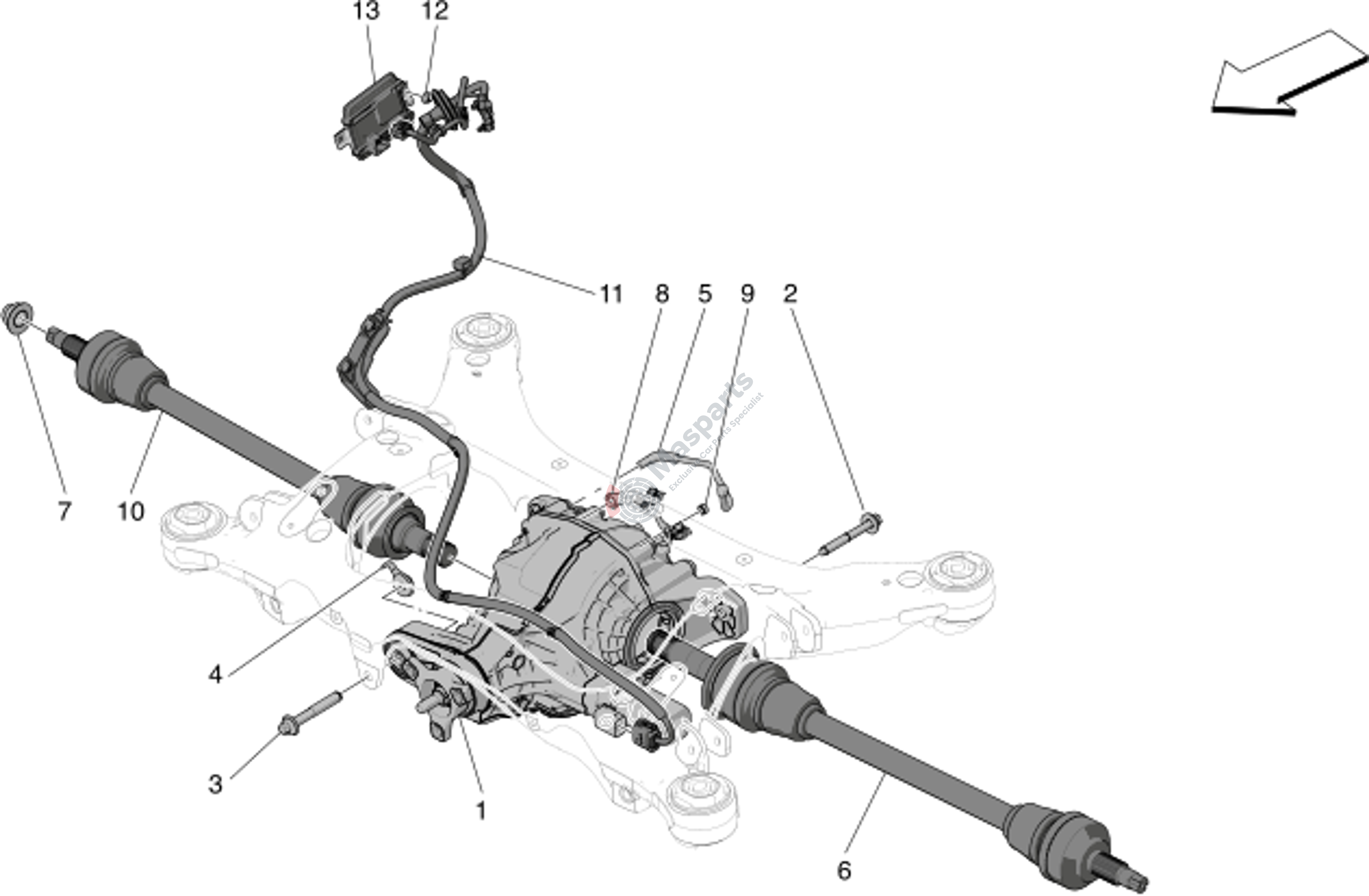

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670154282 | Differential |
€1.446,24 |
|
|
| 2 | M-675001535 | Screw |
€3,46 |
|
|
| 3 | M-675000707 | Screw |
€9,38 |
|
|
| 4 | M-675001538 | Flange Nut |
€22,08 |
|
|
| 5 | M-675001853 | Pipe |
€17,77 |
|
|
| 6 | M-675001764 | Rear Axle Shaft |
€486,68 |
|
|
| 7 | M-675000138 | Nut |
€7,54 |
|
|
| 8 | M-670175405 | Bracket Oil Breather Pipe |
€15,00 |
|
|
| 9 | M-675000759 | Nut |
€0,67 |
|
|
| 10 | M-675001765 | Rear Axle Shaft |
€462,76 |
|
|
| 11 | M-670154286 | Cable |
€100,62 |
|
|
| 12 | M-675001063 | Nut |
€1,04 |
|
|
| 13 | M-670218849 | Differential Control Unit |
€310,46 |
|
