The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

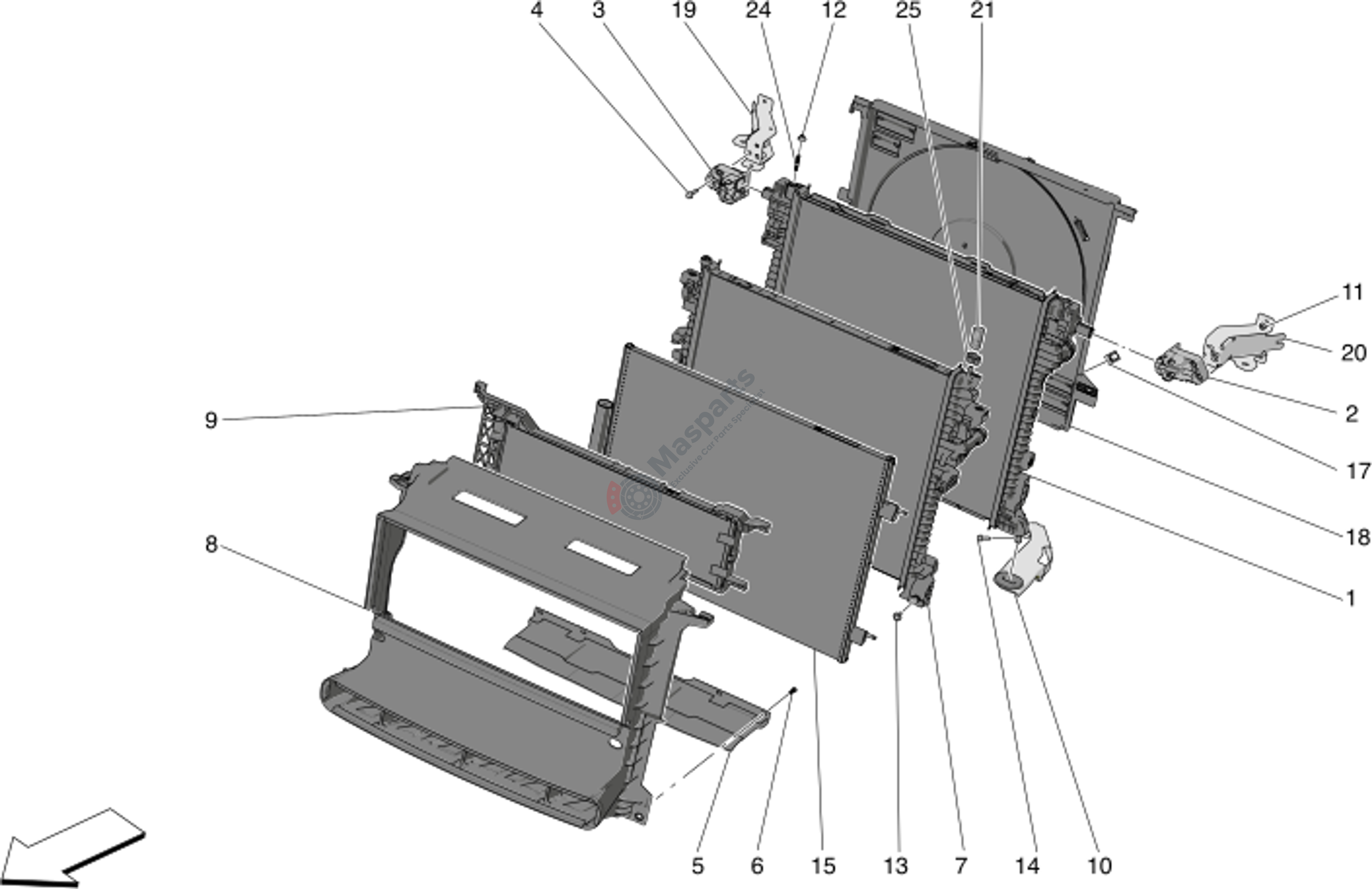

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001944 | Radiator Refrigeration Modul |
$654.13 |
|
|
| 2 | M-675002060 | Bracket |
$35.00 |
|
|
| 3 | M-675002059 | Bracket |
$35.00 |
|
|
| 4 | M-675001933 | Screw |
$1.50 |
|
|
| 5 | M-675002068 | Plate |
$52.27 |
|
|
| 6 | M-675002069 | Screw |
$0.72 |
|
|
| 7 | M-675001945 | Radiator |
$502.87 |
|
|
| 8 | M-670156442 | Conveyor |
$153.22 |
|
|
| 9 | M-675001981 | Oil Radiator |
$327.06 |
|
|
| 10 | M-675001566 | Right Bracket |
$25.53 |
|
|
| 11 | M-675000969 | Nut |
$0.99 |
|
|
| 12 | M-675001063 | Nut |
$1.24 |
|
|
| 13 | M-675001053 | Screw |
$1.61 |
|
|
| 14 | M-675001119 | Screw |
$0.80 |
|
|
| 15 | M-675001449 | A.C. Condenser |
$634.49 |
|
|
| 17 | M-675001040 | Plate |
$1.27 |
|
|
| 18 | M-675001213 | Electrofan Module |
$1,165.65 |
|
|
| 19 | M-675002111 | Rh Bracket |
$40.82 |
|
|
| 20 | M-675002112 | Lh Bracket |
$44.46 |
|
|
| 21 | M-675001912 | Cap |
$3.81 |
|
|
| 24 | M-675002067 | Fixing |
$10.90 |
|
|
| 25 | M-675001924 | Ribbon Collar |
$1.46 |
|
