Diagram image not available

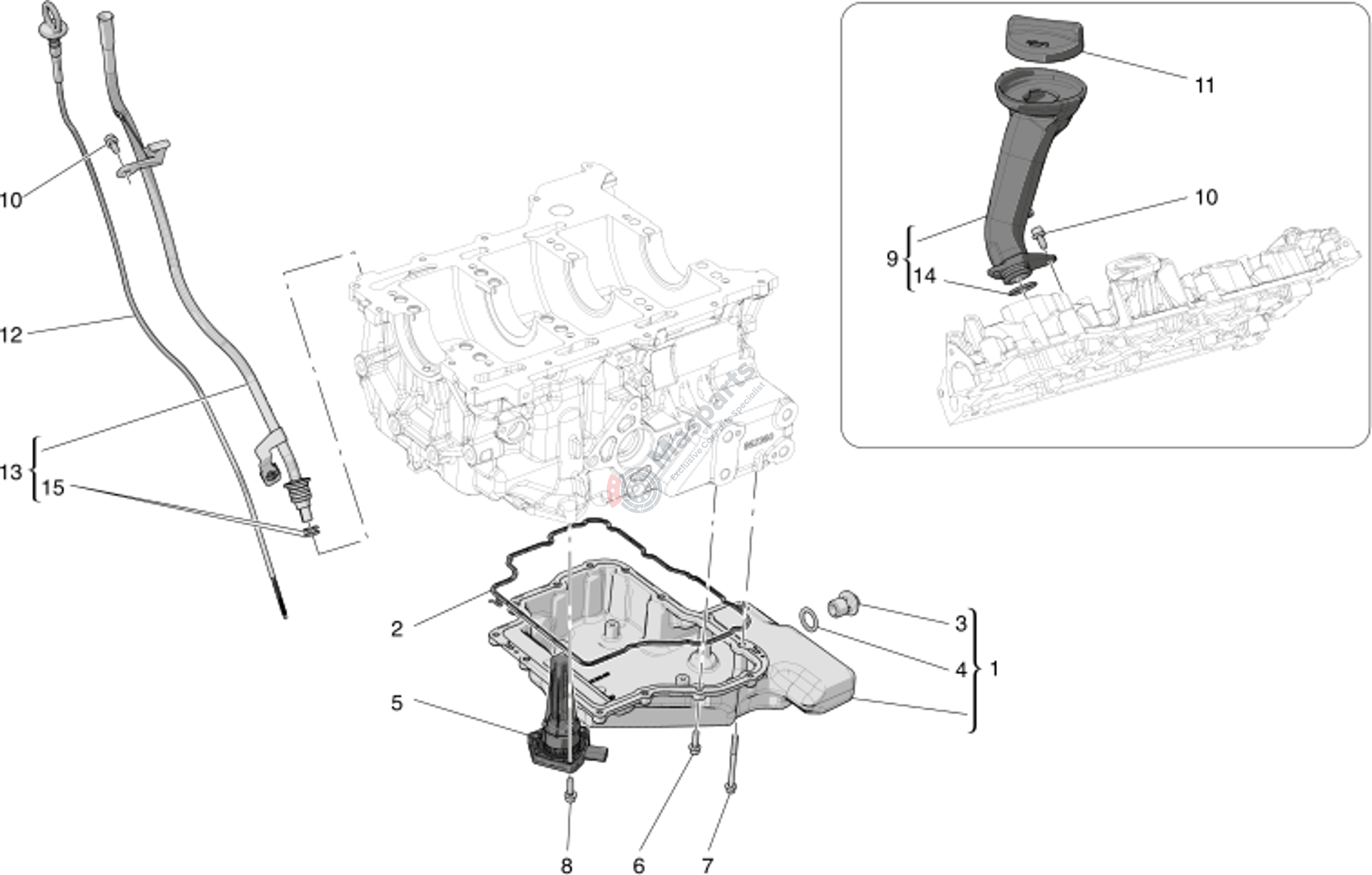

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670051742 | Oil Cup |
$501.37 |
|
|
| 2 | M-670051296 | Gascket |
$63.17 |
|
|
| 3 | M-670050350 | Oil Cap |
$25.67 |
|
|
| 4 | M-670050349 | Gasket |
$25.67 |
|
|
| 5 | M-670053268 | Oil Sensor |
$48.93 |
|
|
| 6 | M-670051108 | Screw |
$2.33 |
|
|
| 7 | M-670051117 | Screw |
$2.46 |
|
|
| 8 | M-670051108 | Screw |
$2.33 |
|
|
| 9 | M-670053217 | Plug |
$51.34 |
|
|
| 10 | M-670051104 | Screw |
$2.27 |
|
|
| 11 | M-670050051 | Plug |
$13.24 |
|
|
| 12 | M-670053218 | Oil Level Stick |
$22.36 |
|
|
| 13 | M-670054294 | Tube |
$53.95 |
|
|
| 14 | M-14457881 | Gasket |
$2.34 |
|
|
| 15 | M-673013792 | O-Ring 1/44572/81 |
$10.17 |
|
