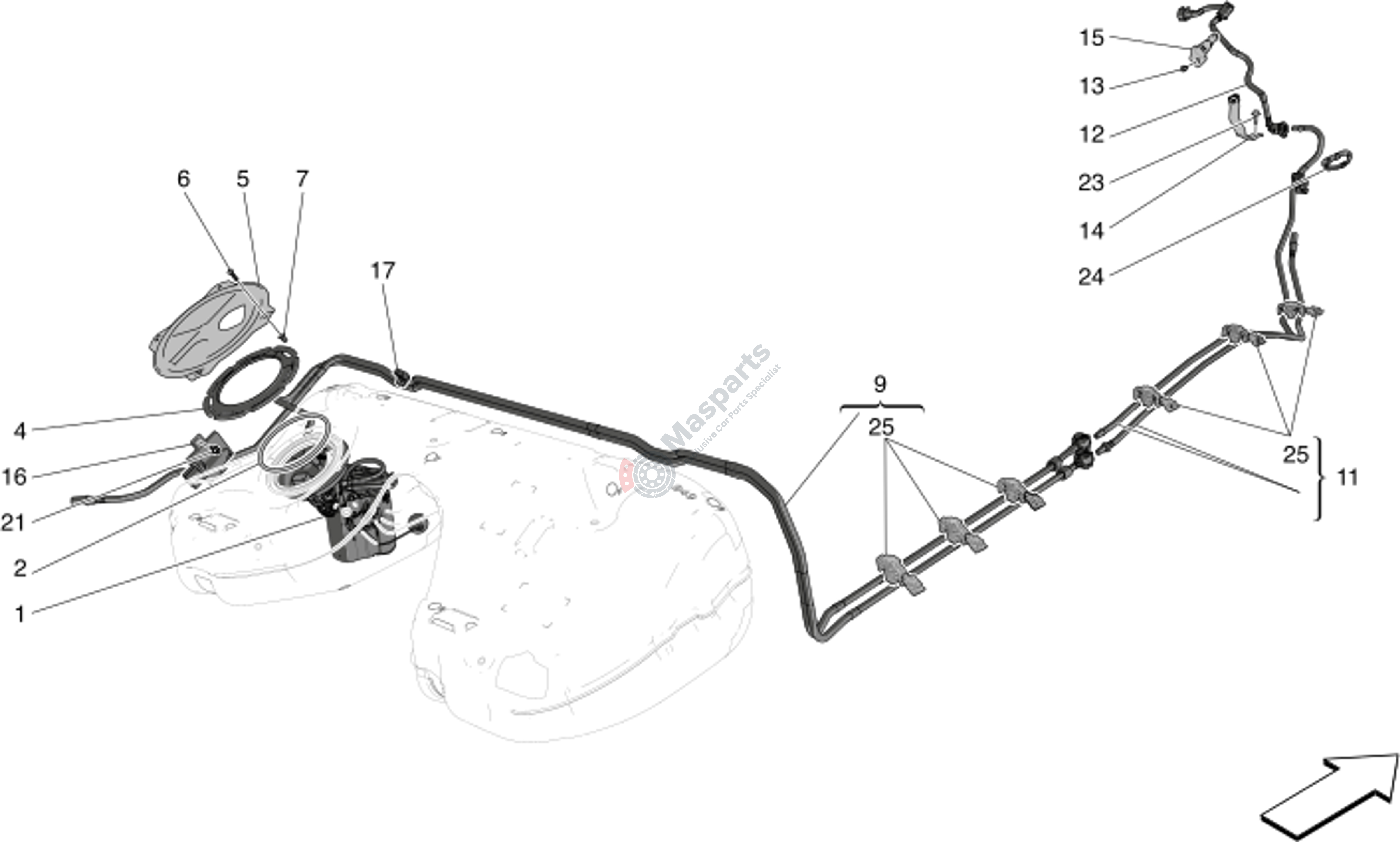

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675002220 | Intake Group |
$339.83 |
|
|
| 2 | M-675001996 | Gasket |
$61.87 |
|
|
| 4 | M-675001997 | Nut |
$18.73 |
|
|
| 5 | M-675001492 | Cover |
$24.08 |
|
|
| 6 | M-675000680 | Tapping Special Screw |
$0.96 |
|
|
| 7 | M-675001766 | Fastening Block |
$0.75 |
|
|
| 9 | M-670217133 | Tube |
$100.18 |
|
|
| 11 | M-670156529 | Tube |
$64.45 |
|
|
| 12 | M-675002218 | Tube |
$78.18 |
|
|
| 13 | M-675000999 | Screw |
$0.71 |
|
|
| 14 | M-675001759 | Fuel Hose Bracket |
$14.31 |
|
|
| 15 | M-675001574 | Fuel Pipe Bracket |
$4.16 |
|
|
| 16 | M-675001876 | Fuel Pump |
$122.23 |
|
|
| 17 | M-675001835 | Tube Retaining Clip |
$2.64 |
|
|
| 21 | M-675001815 | Screw |
$1.19 |
|
|
| 23 | M-675001539 | Screw |
$0.90 |
|
|
| 24 | M-675001747 | Gasket |
$2.25 |
|
|
| 25 | M-670173914 | 3-Way Spring |
$7.81 |
|
