Diagram image not available

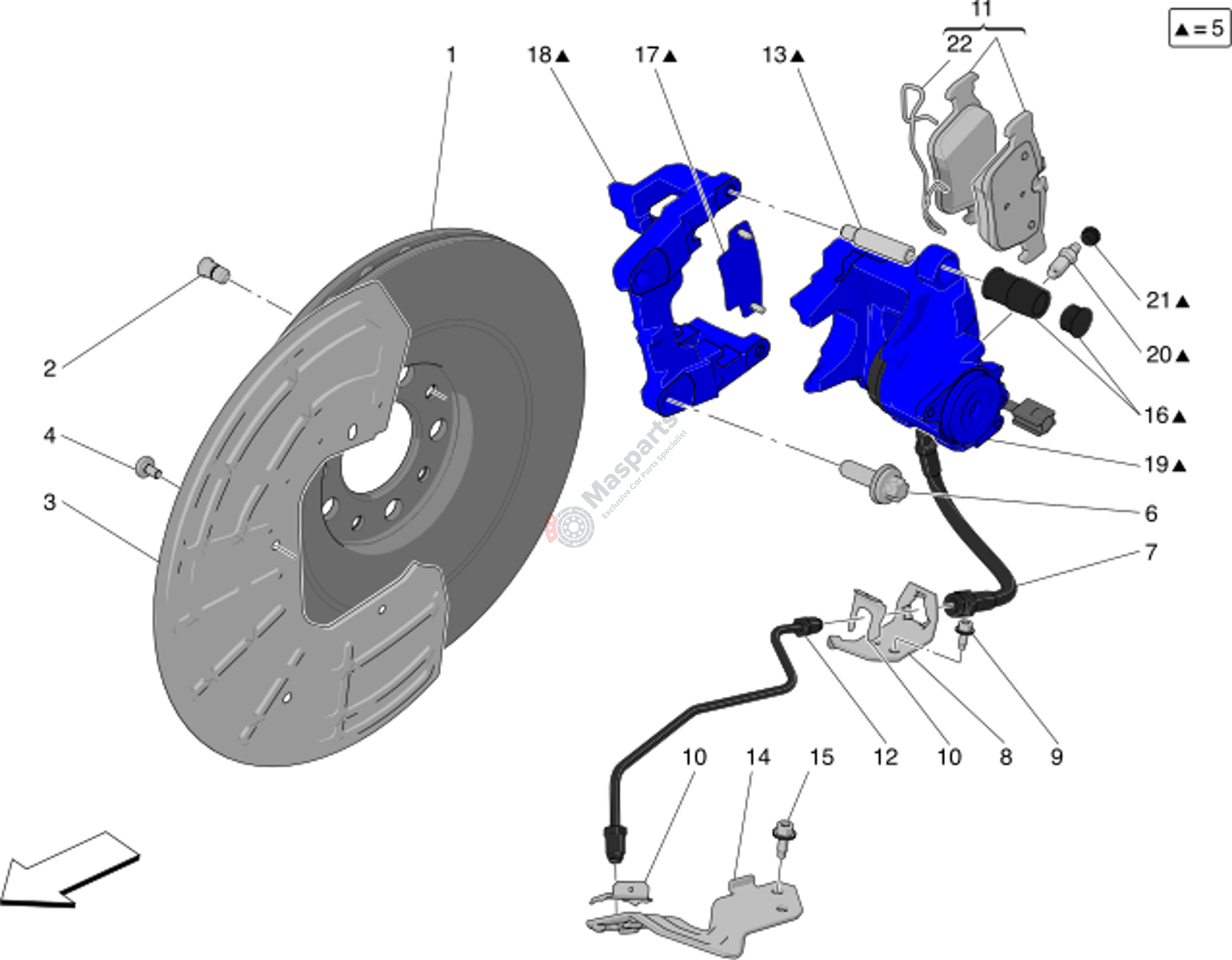

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670298244 | Rear Brake Disc Mhev |
$142.36 |
|
|
| 2 | M-675000081 |
Screw
|
$5.01 |
|
|
| 3 | M-675001524 | Rh Guard |
$8.64 |
|
|
| 4 | M-675001032 | Screw |
$1.26 |
|
|
| 6 | M-675001840 | Screw |
$3.81 |
|
|
| 9 | M-675001036 | Screw |
$1.41 |
|
|
| 10 | M-675000276 | Plate |
$0.95 |
|
|
| 11 | M-673012304 | Kit Rear Brake Pads M182 Mhe |
$138.95 |
|
|
| 13 | M-673005441 | Locating Pin |
$18.11 |
|
|
| 14 | M-675001526 | Brake Hose Bracket |
$6.13 |
|
|
| 15 | M-675001036 | Screw |
$1.41 |
|
|
| 16 | M-673005434 | Bushing Kit |
$17.34 |
|
|
| 20 | M-673004422 | Bleed Screw |
$25.51 |
|
|
| 21 | M-673004423 | Dust Cap |
$19.94 |
|
|
| 22 | M-673005442 | Housing Clip |
$24.48 |
|
