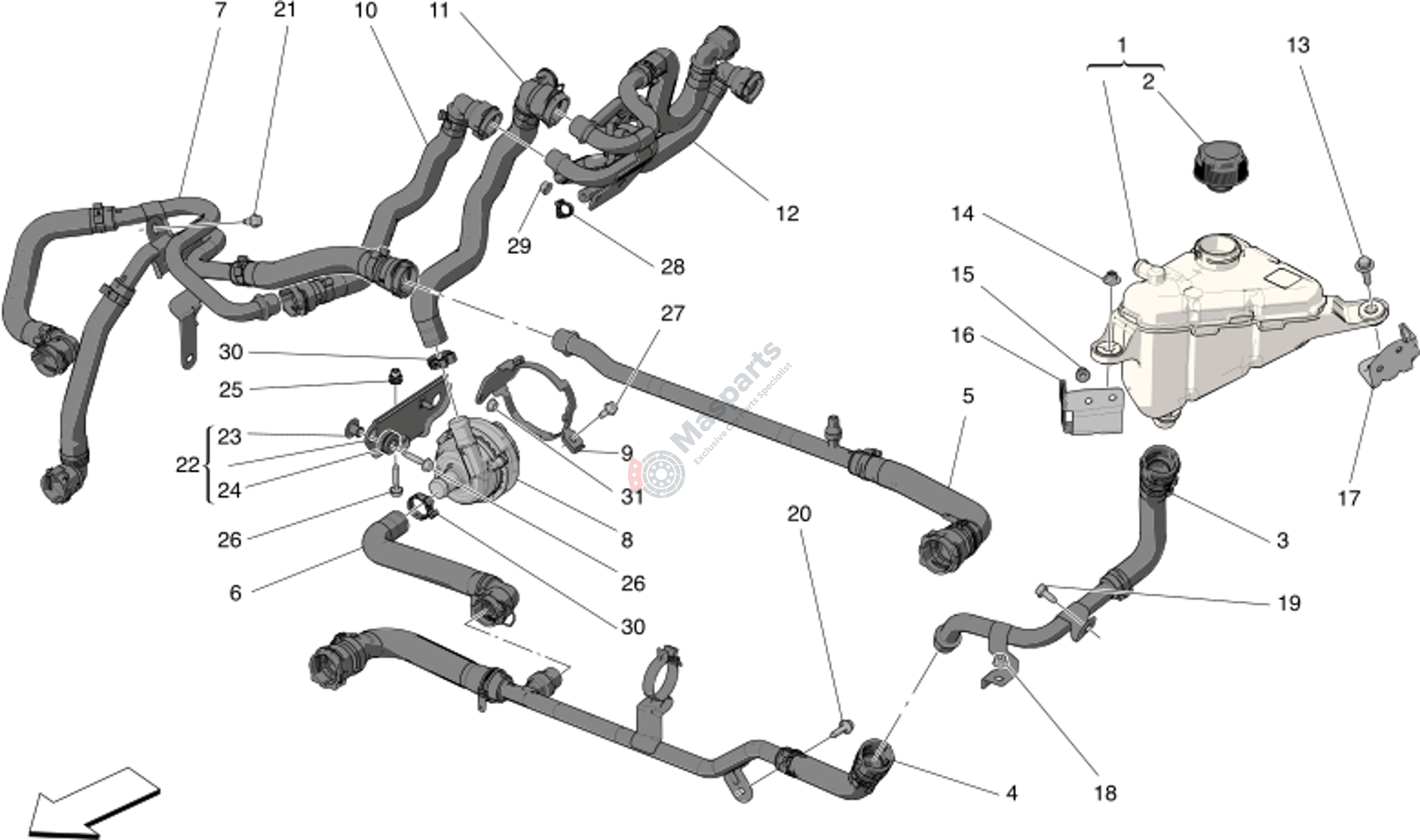

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001493 | Tank |
$61.31 |
|
|
| 2 | M-670003408 | Mount Plug |
$13.64 |
|
|
| 3 | M-670156404 | Pipe |
$48.05 |
|
|
| 4 | M-670161226 | Hose From Radiator To Water |
$116.53 |
|
|
| 5 | M-670161229 | Tube |
$85.11 |
|
|
| 6 | M-670156413 | Sleeve |
$17.11 |
|
|
| 7 | M-670156405 | Pipe |
$101.12 |
|
|
| 8 | M-670303875 | Supplementary Pump |
$253.28 |
|
|
| 9 | M-670156428 | Pump Bracket |
$8.71 |
|
|
| 10 | M-670156409 | Sleeve |
$38.58 |
|
|
| 11 | M-670156412 | Sleeve |
$39.27 |
|
|
| 12 | M-670156408 | Sleeve |
$109.79 |
|
|
| 13 | M-675001708 | Screw |
$1.59 |
|
|
| 14 | M-675001063 | Nut |
$1.22 |
|
|
| 15 | M-675000794 | Flanged Nut |
$1.50 |
|
|
| 16 | M-675001565 | Bracket |
$7.31 |
|
|
| 17 | M-675001568 | Bracket |
$7.41 |
|
|
| 18 | M-675000794 | Flanged Nut |
$1.50 |
|
|
| 19 | M-675001117 | Screw |
$1.10 |
|
|
| 20 | M-675001048 | Screw |
$0.70 |
|
|
| 21 | M-675001117 | Screw |
$1.10 |
|
|
| 22 | M-670161488 | Pump Bracket |
$20.39 |
|
|
| 23 | M-675000129 | Spacer |
$29.37 |
|
|
| 24 | M-675000054 | Small Black |
$14.00 |
|
|
| 25 | M-675001928 | Rivet |
$1.47 |
|
|
| 26 | M-675001127 | Screw |
$1.10 |
|
|
| 27 | M-675001792 | Screw |
$0.79 |
|
|
| 28 | M-675000369 | Strap Collar |
$1.68 |
|
|
| 29 | M-675001063 | Nut |
$1.22 |
|
|
| 30 | M-675000658 | Snap Collar |
$5.53 |
|
|
| 31 | M-675000182 | Nut |
$1.11 |
|
