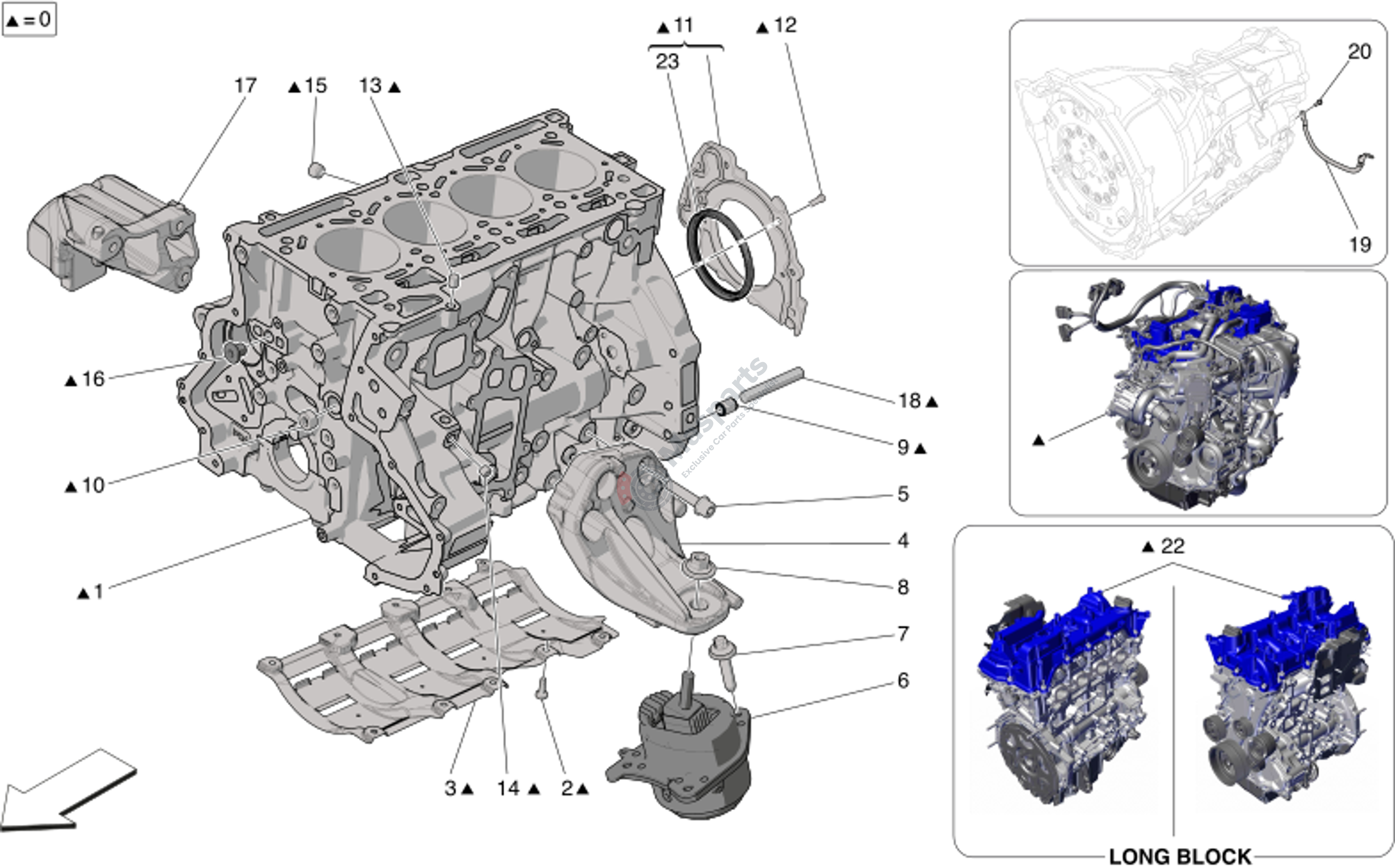

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000844 | Screw |
$2.79 |
|
|
| 3 | M-675000923 | Oil Sump Guard |
$17.91 |
|
|
| 4 | M-675001971 | Engine Support |
$217.76 |
|
|
| 5 | M-675001128 | Screw |
$2.46 |
|
|
| 6 | M-675001603 | Block |
$207.11 |
|
|
| 7 | M-675001345 | Screw |
$2.23 |
|
|
| 8 | M-675001507 | Nut |
$3.34 |
|
|
| 9 | M-675000841 | Dowel |
$2.16 |
|
|
| 10 | M-675000836 | Plug |
$2.06 |
|
|
| 12 | M-675000873 | Screw |
$2.54 |
|
|
| 13 | M-675000891 | Cylindrical Plug |
$4.61 |
|
|
| 14 | M-675000835 | Threaded Plug |
$1.72 |
|
|
| 15 | M-675000837 | Threaded Plug |
$1.10 |
|
|
| 16 | M-675000874 | Threaded Plug |
$2.07 |
|
|
| 17 | M-675001972 | Engine Support |
$240.98 |
|
|
| 18 | M-675000881 | Threaded Rod |
$4.73 |
|
|
| 20 | M-16288424 | Screw |
$7.70 |
|
