Diagram image not available

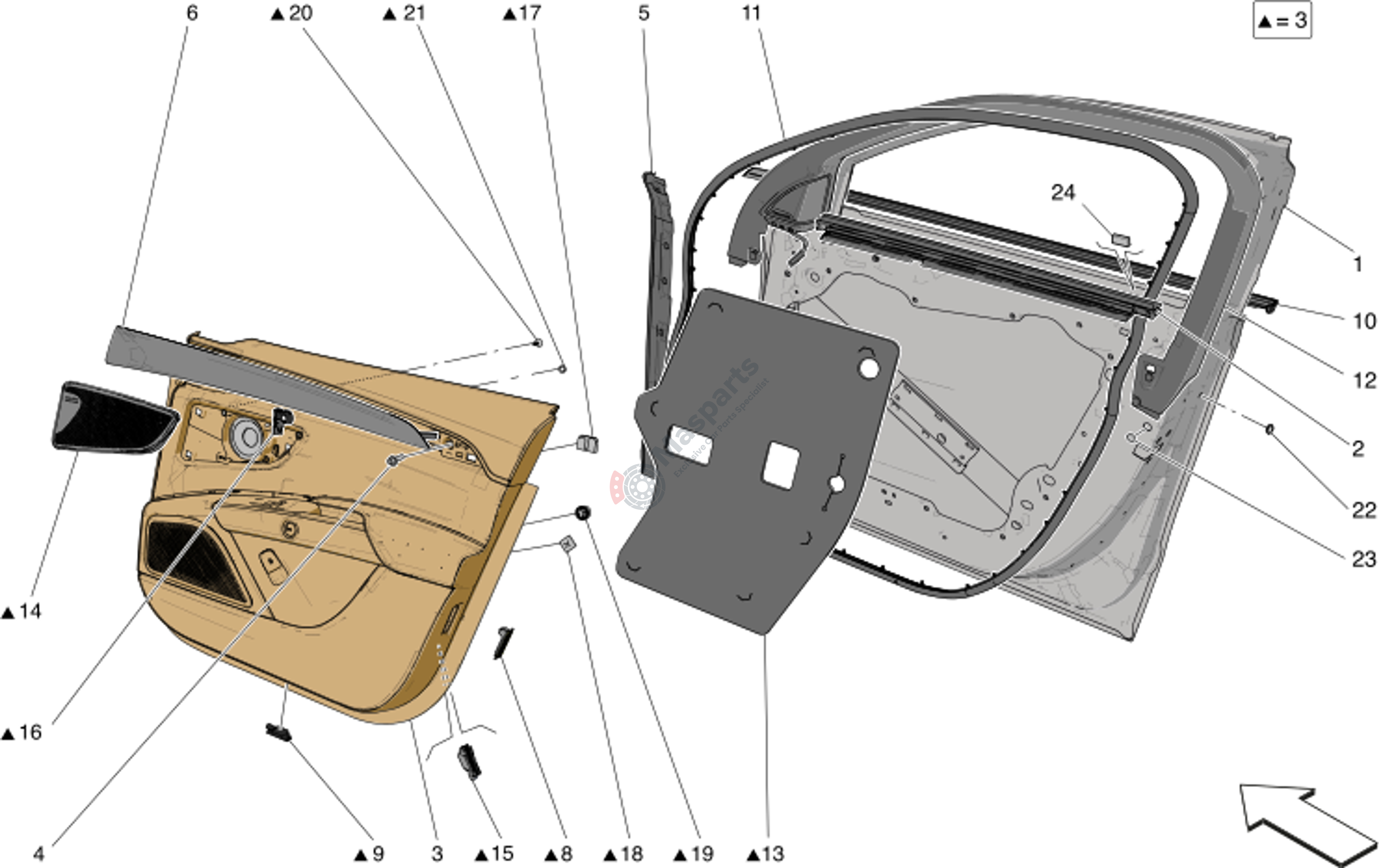

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673013824 | Rh Front Door |
$1,109.45 |
|
|
| 4 | M-675002172 | Screw |
$1.17 |
|
|
| 5 | M-670157577 | Rh Front Door Vertical Gaske |
$24.40 |
|
|
| 8 | M-675001779 | Rh Domelight |
$5.18 |
|
|
| 9 | M-675001089 | Lamp |
$24.68 |
|
|
| 10 | M-670178924 | Rh Front Glass Scraper Gaske |
$178.08 |
|
|
| 11 | M-670220766 | Rh Front Door Framework Gask |
$57.61 |
|
|
| 13 | M-673014488 | Acoustic Fleece Frt |
$16.37 |
|
|
| 14 | M-673014506 | Mr Metal Grill Premium Assy |
$285.97 |
|
|
| 17 | M-673014495 | Crash Clip Rh |
$5.21 |
|
|
| 18 | M-673005979 | Locator Seal |
$2.12 |
|
|
| 19 | M-670214550 | Pin |
$1.37 |
|
|
| 20 | M-673014498 | Screw K50 X 14Mm |
$1.48 |
|
|
| 21 | M-673014497 | Bracket Metal Bushing |
$1.50 |
|
|
| 22 | M-675001326 | Plug |
$2.41 |
|
|
| 23 | M-675000762 | Rubber Closing Plug |
$1.91 |
|
|
| 24 | M-675002366 | Tampone Insonorizzante |
$4.88 |
|
