Diagram image not available

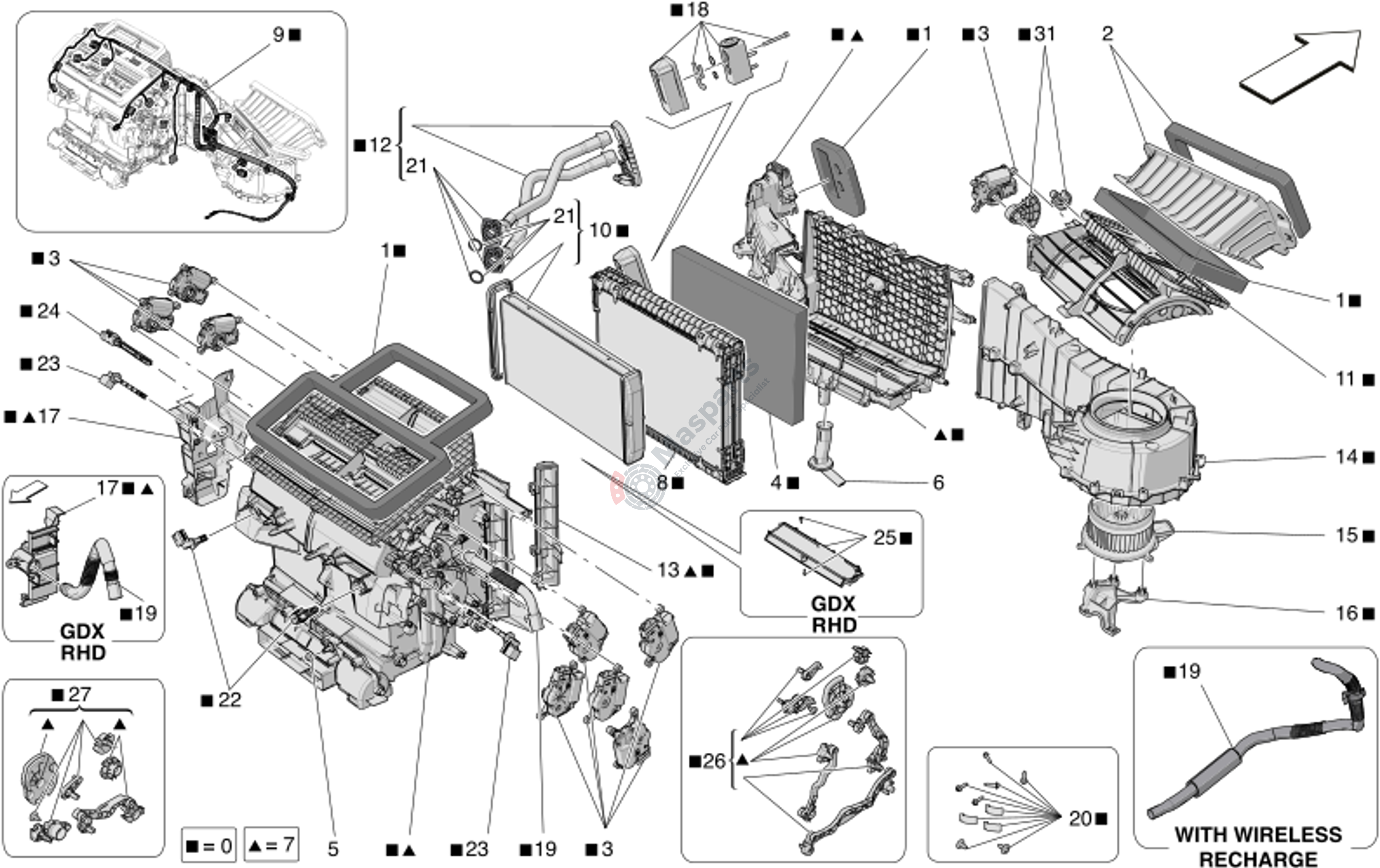

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673013339 | Kit Lhd/Rhd Gasket |
$41.24 |
|
|
| 2 | M-670212777 | Lhd Air Inlet Module |
$37.09 |
|
|
| 3 | M-670104418 | Actuator |
$62.96 |
|
|
| 4 | M-673013332 | Pollen Filter |
$44.36 |
|
|
| 5 | M-675000412 | Hex Nut |
$1.20 |
|
|
| 6 | M-675001731 | Drainage Hole Pipe |
$3.86 |
|
|
| 7 | M-673013317 | Kit Lhd Mode Cases Third Zon |
$132.99 |
|
|
| 8 | M-673013334 | Kit Lhd Evaporator 1234Yf W |
$497.05 |
|
|
| 10 | M-673013327 | Kit Lhd Heater Core W/O Pipe |
$125.44 |
|
|
| 11 | M-673013337 | Lhd Air Inlet/Rec Case |
$29.68 |
|
|
| 12 | M-673013326 | Kit Lhd Heater Core Pipes |
$32.73 |
|
|
| 13 | M-673013335 | Filter Cover |
$25.38 |
|
|
| 14 | M-673013323 | Kit Lhd Front Cases W Wiring |
$29.99 |
|
|
| 15 | M-673013331 | Kit Lhd Blower Assy |
$440.87 |
|
|
| 16 | M-673013328 | Lhd Motor Holder Bracket |
$53.99 |
|
|
| 17 | M-673013330 | Kit Lhd Heater Core Pipes Co |
$13.97 |
|
|
| 18 | M-673013333 | Kit 1234Yf Txv |
$139.85 |
|
|
| 20 | M-673013324 | Kit Lhd Fixing Screws/Clamps |
$18.37 |
|
|
| 21 | M-673013340 | Kit Heater Core Pipes Fixing |
$18.89 |
|
|
| 22 | M-673009333 | Air Temp. Floor Sensor |
$34.51 |
|
|
| 23 | M-673013329 | Kit Lhd Air Temp Sensor (Ven |
$26.67 |
|
|
| 24 | M-673009331 | Evapourator Sensor |
$45.62 |
|
|
| 26 | M-673013318 | Kit Lhd Mix/Mode Kinematics |
$38.74 |
|
|
| 27 | M-673013336 | Kit Mix/Mode Kinematics Left |
$32.60 |
|
|
| 31 | M-673013338 | Kit Lhd Air Inlet/Rec Kinema |
$12.45 |
|
