Diagram image not available

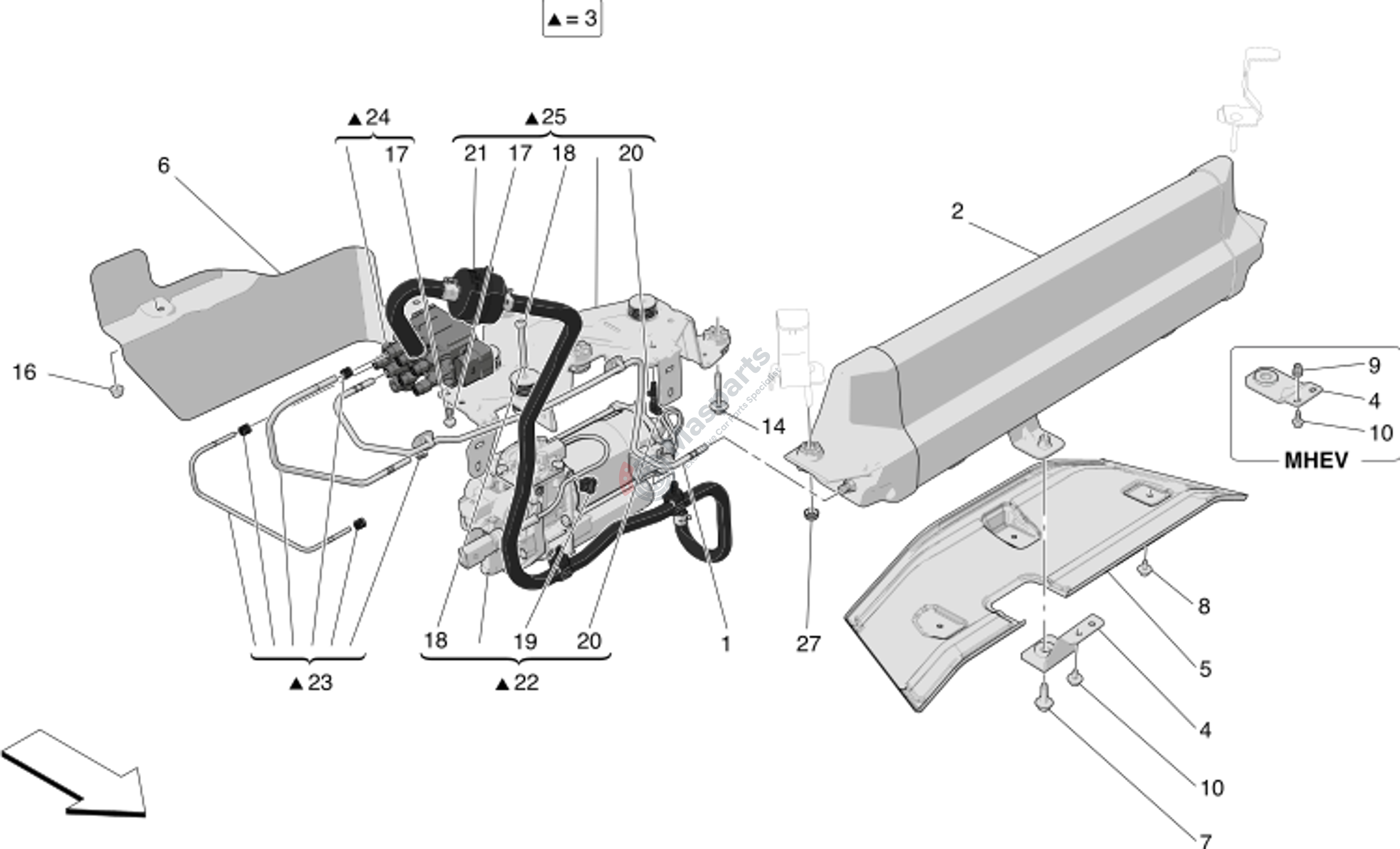

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670305675 | Pipe |
$17.90 |
|
|
| 2 | M-670216817 | Suspension Tank |
$344.53 |
|
|
| 3 | M-670217139 | Air Supply Unit |
$1,391.50 |
|
|
| 4 | M-670177218 | Bracket Support. Auxiliary T |
$14.16 |
|
|
| 5 | M-670176773 | Heat Cover |
$18.04 |
|
|
| 6 | M-670176772 | Heat Cover |
$34.32 |
|
|
| 7 | M-675001245 | Screw |
$1.63 |
|
|
| 9 | M-675000686 | Rivet |
$1.17 |
|
|
| 10 | M-675001036 | Screw |
$1.40 |
|
|
| 14 | M-670177587 | Screw |
$3.42 |
|
|
| 16 | M-675000794 | Flanged Nut |
$1.49 |
|
|
| 18 | M-670217140 | Isolator Screw |
$1.20 |
|
|
| 19 | M-670161934 | Clip Cable |
$1.36 |
|
|
| 20 | M-670213219 | Clip |
$4.75 |
|
|
| 21 | M-670160076 | Intake Line |
$83.80 |
|
|
| 22 | M-673013285 | Compressor Kit M182 |
$899.59 |
|
|
| 23 | M-673013287 | Fitting Kit M182 |
$277.60 |
|
|
| 24 | M-673013294 | Solenoid Valve Block Kit |
$518.70 |
|
|
| 25 | M-673013286 | Bracket Kit M182 |
$376.01 |
|
|
| 27 | M-675000966 | Nut |
$1.23 |
|
