Diagram image not available

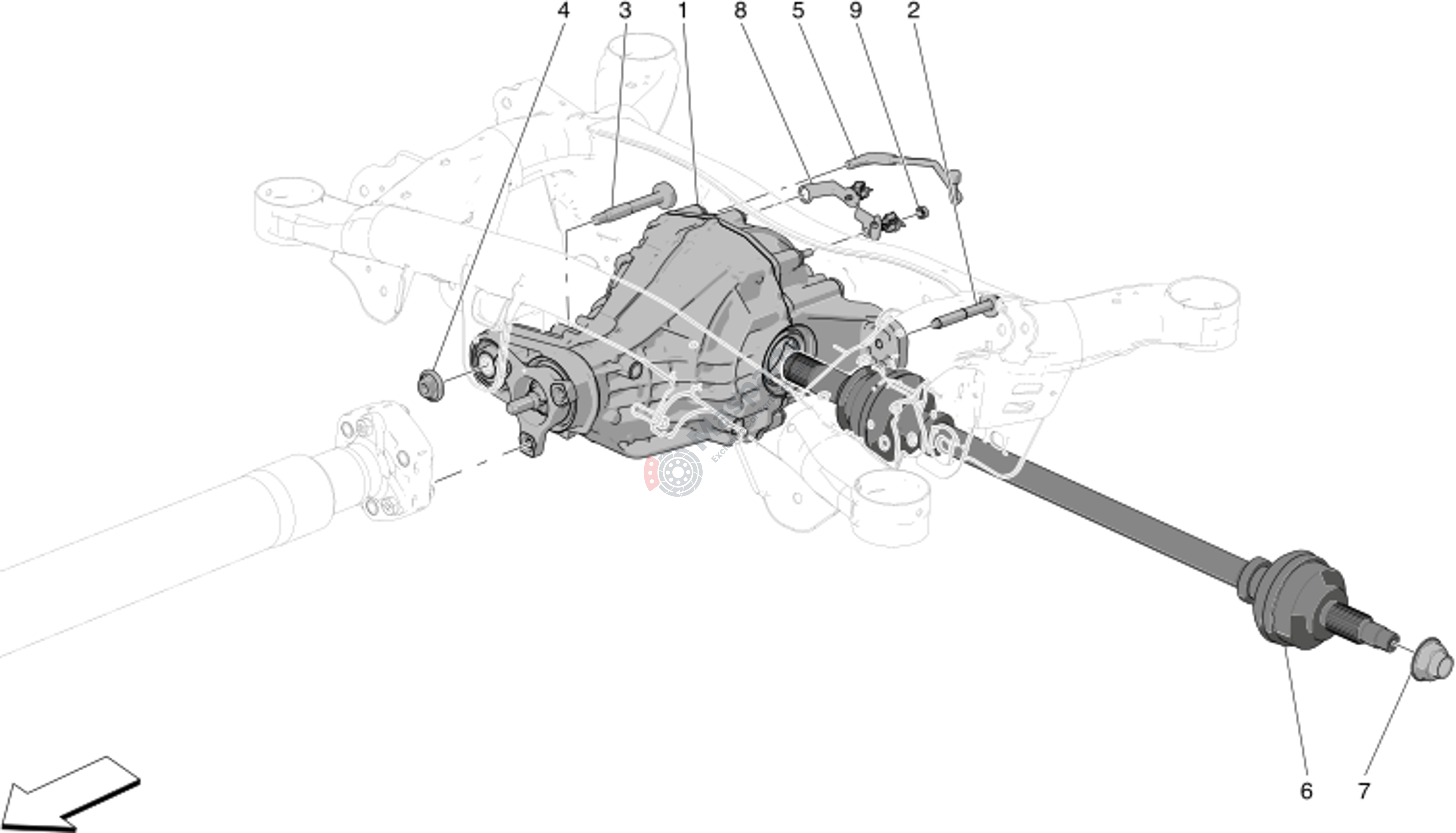

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001856 | Differential |
$2,645.83 |
|
|
| 2 | M-675001535 | Screw |
$4.07 |
|
|
| 3 | M-675001791 | Screw |
$6.10 |
|
|
| 4 | M-675000708 | Nut |
$3.42 |
|
|
| 5 | M-675001853 | Pipe |
$20.86 |
|
|
| 6 | M-670156926 | Rear Axle Shaft |
$470.26 |
|
|
| 7 | M-675000138 | Nut |
$8.77 |
|
|
| 8 | M-675001854 | Bracket Oil Breather Pipe |
$9.08 |
|
|
| 9 | M-675000759 | Nut |
$0.79 |
|
