Diagram image not available

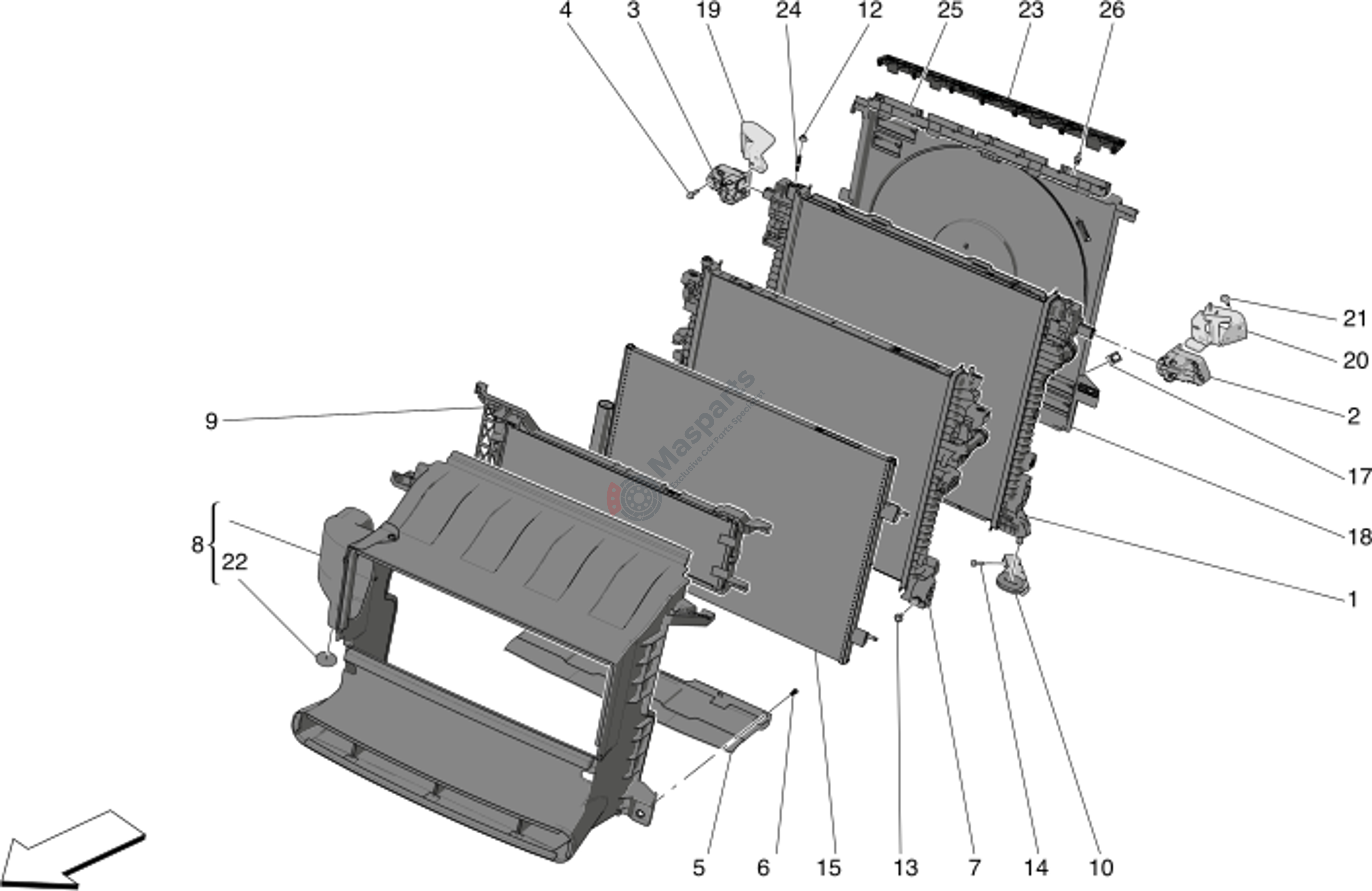

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001943 | Radiator |
$505.64 |
|
|
| 2 | M-675002060 | Bracket |
$34.78 |
|
|
| 3 | M-675002059 | Bracket |
$34.78 |
|
|
| 4 | M-675001933 | Screw |
$1.49 |
|
|
| 5 | M-675002068 | Plate |
$51.95 |
|
|
| 6 | M-675002069 | Screw |
$0.72 |
|
|
| 7 | M-675001945 | Radiator |
$499.78 |
|
|
| 8 | M-670181751 | Conveyor |
$159.11 |
|
|
| 9 | M-670161225 | Oil Radiator |
$330.91 |
|
|
| 10 | M-675001561 | Right Bracket Lower |
$17.50 |
|
|
| 12 | M-675001063 | Nut |
$1.24 |
|
|
| 13 | M-675001053 | Screw |
$1.60 |
|
|
| 14 | M-675001119 | Screw |
$0.79 |
|
|
| 15 | M-675001449 | A.C. Condenser |
$630.59 |
|
|
| 17 | M-675001040 | Plate |
$1.26 |
|
|
| 18 | M-675001942 | Fan |
$911.58 |
|
|
| 19 | M-670218079 | Rh Bracket |
$21.87 |
|
|
| 20 | M-675002110 | Lh Bracket |
$23.95 |
|
|
| 21 | M-675001070 | Screw |
$1.43 |
|
|
| 22 | M-675001452 | Valve |
$4.68 |
|
|
| 23 | M-675001610 | Cover |
$12.93 |
|
|
| 24 | M-675002067 | Fixing |
$10.83 |
|
|
| 25 | M-675002070 | Clip |
$15.86 |
|
|
| 26 | M-675002071 | Rivet |
$1.17 |
|
