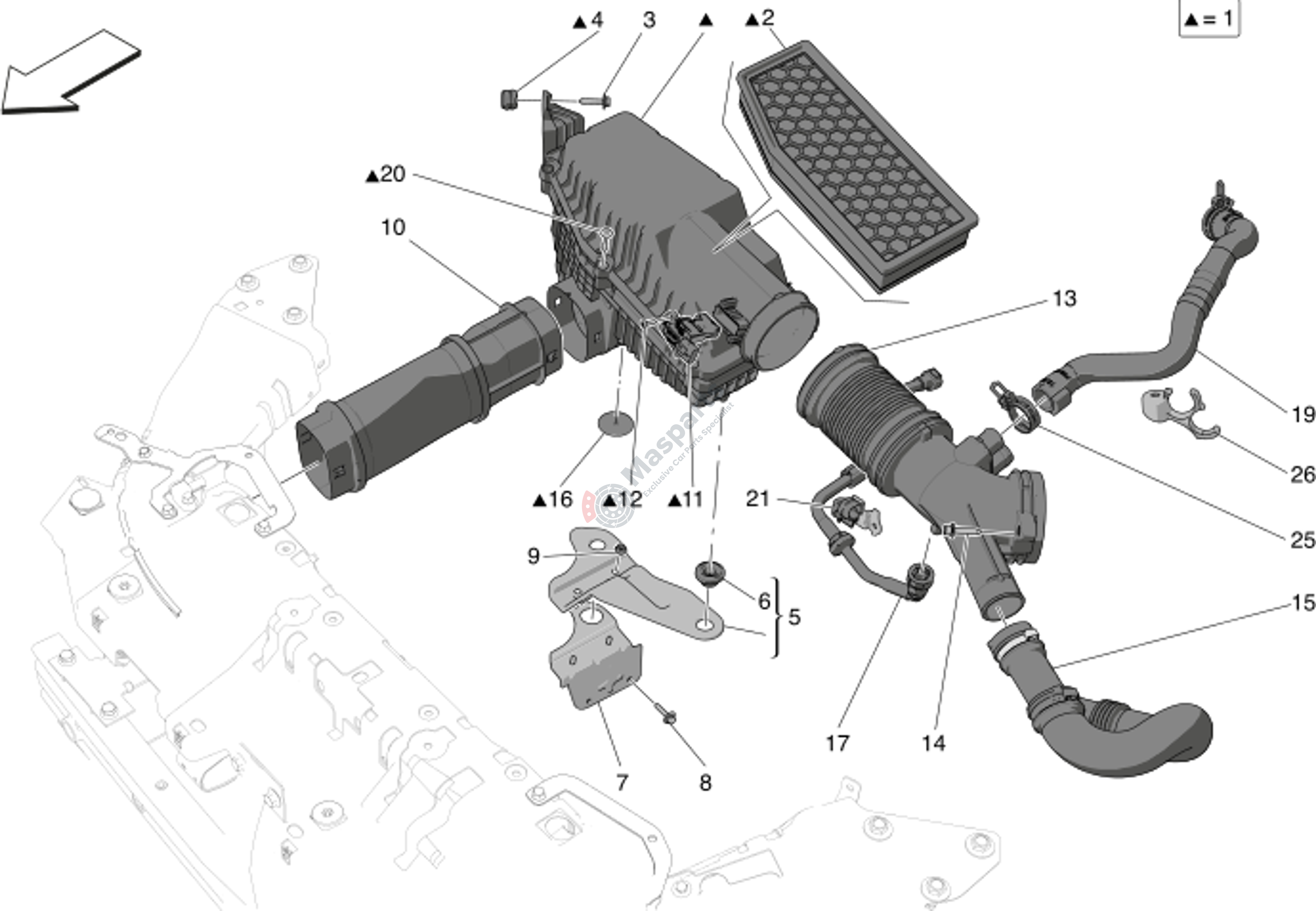

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670156354 | Air Filter |
$190.38 |
|
|
| 2 | M-670161180 | Air Filter |
$49.68 |
|
|
| 3 | M-675001078 | Screw |
$1.98 |
|
|
| 4 | M-675000284 | Flexible Pad |
$10.67 |
|
|
| 5 | M-670214838 | Bracket |
$37.74 |
|
|
| 6 | M-675000018 | Rubber Bushing |
$4.96 |
|
|
| 7 | M-675001605 | Air Filter Support Lower Bra |
$17.72 |
|
|
| 8 | M-675001078 | Screw |
$1.98 |
|
|
| 9 | M-675000969 | Nut |
$0.98 |
|
|
| 10 | M-670156363 | Tube |
$58.61 |
|
|
| 12 | M-675001451 | Screw |
$2.40 |
|
|
| 13 | M-670156370 | Tube |
$110.32 |
|
|
| 14 | M-675000434 | Screw |
$4.63 |
|
|
| 15 | M-670156374 | Tube |
$52.05 |
|
|
| 16 | M-675001452 | Valve |
$4.68 |
|
|
| 17 | M-670156721 | Pipe |
$42.14 |
|
|
| 19 | M-670054096 | Flexible Pipe |
$106.42 |
|
|
| 20 | M-675001150 | Screw |
$1.98 |
|
|
| 21 | M-670154518 | Bracket |
$10.24 |
|
|
| 25 | M-675001954 | Collar |
$3.33 |
|
|
| 26 | M-670053111 | Clip |
$1.76 |
|
