Diagram image not available

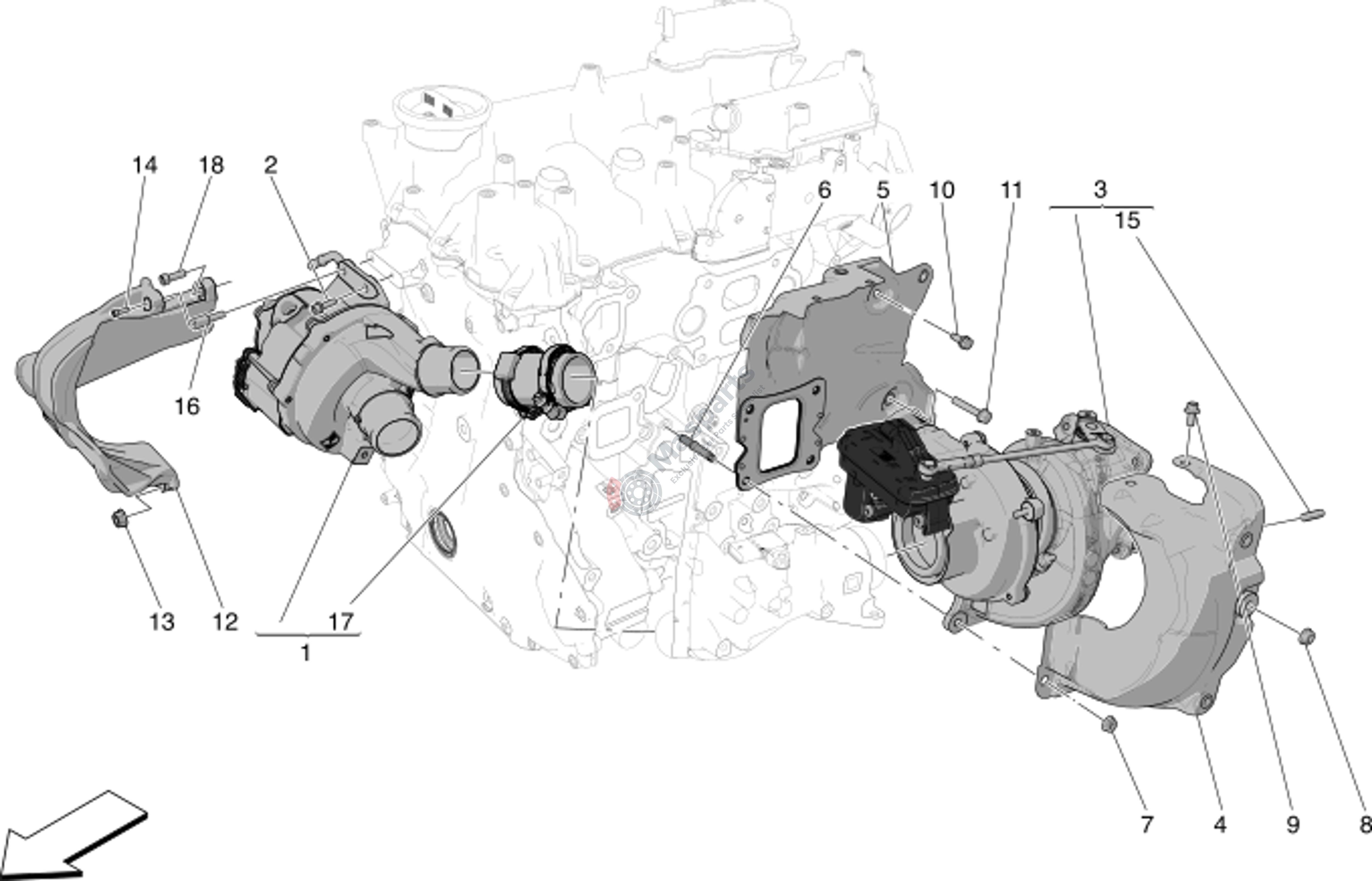

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675001989 | Screw |
$1.42 |
|
|
| 3 | M-670053882 | Turbocompressor |
$965.67 |
|
|
| 4 | M-670054067 | Turbocompressor Heat Shield |
$94.11 |
|
|
| 5 | M-670054068 | Gasket Turbocompressor |
$49.06 |
|
|
| 6 | M-675000883 | Threaded Rod |
$12.37 |
|
|
| 7 | M-675000962 | Flange Nut |
$1.09 |
|
|
| 8 | M-675000182 | Nut |
$1.10 |
|
|
| 9 | M-675000965 | Screw |
$4.36 |
|
|
| 10 | M-675000967 | Screw |
$1.09 |
|
|
| 11 | M-675000968 | Screw |
$1.09 |
|
|
| 12 | M-670221109 | Heat Shield |
$203.06 |
|
|
| 13 | M-675001096 | Nut |
$0.67 |
|
|
| 14 | M-675000375 | Screw |
$0.74 |
|
|
| 15 | M-673013906 | Stud Bolt |
$14.12 |
|
|
| 16 | M-670053828 | Screw |
$6.39 |
|
|
| 17 | M-670053704 | Sleeve |
$94.17 |
|
|
| 18 | M-670051233 | Screw |
$7.23 |
|
