Diagram image not available

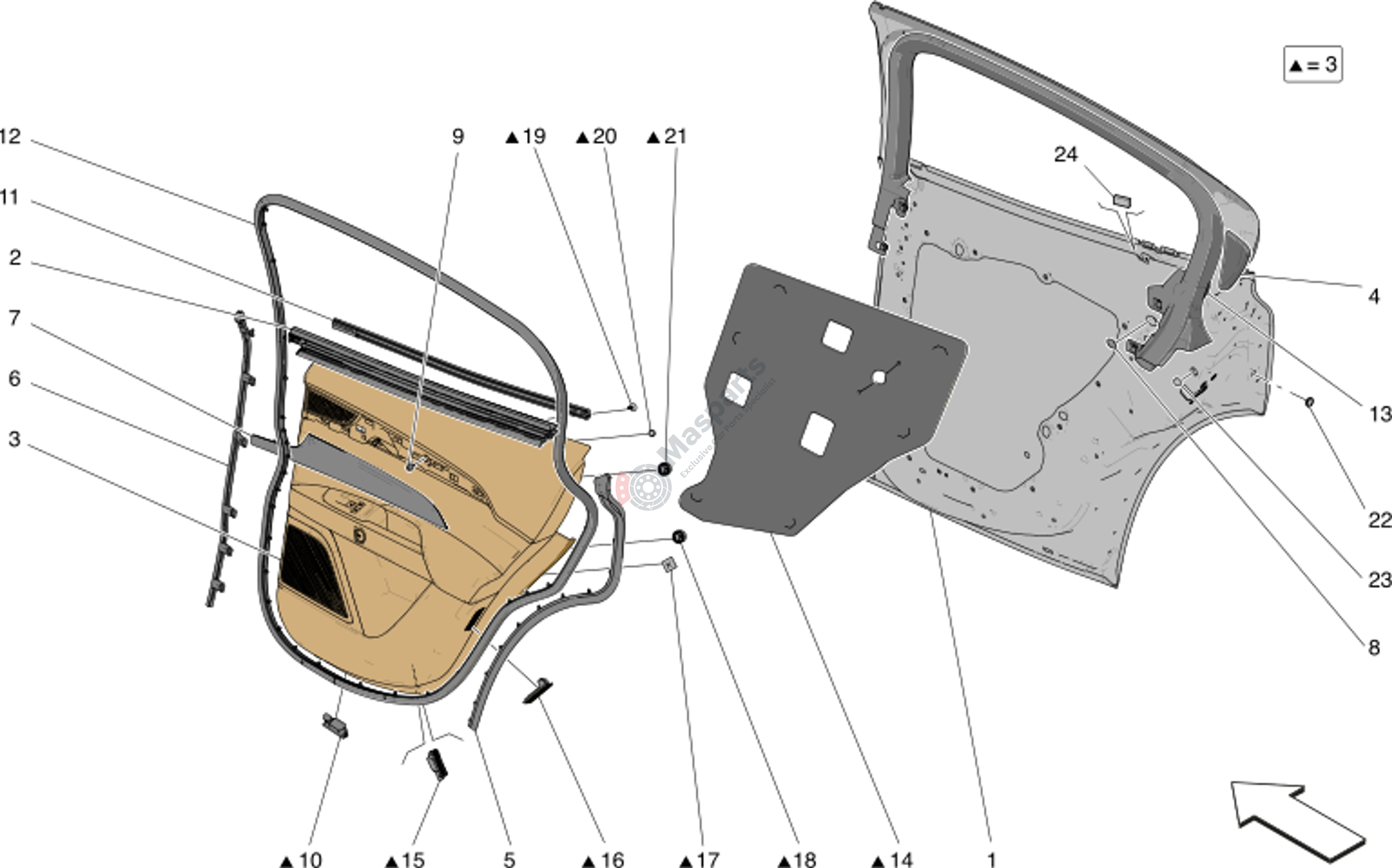

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673013826 | Rh Rear Door |
$1,117.64 |
|
|
| 6 | M-670157605 | Rh Front Door Sill Gasket |
$22.84 |
|
|
| 8 | M-675002206 | Cap |
$3.36 |
|
|
| 9 | M-675002172 | Screw |
$1.18 |
|
|
| 10 | M-675001089 | Lamp |
$24.86 |
|
|
| 11 | M-670178926 | Rh Rear Glass Scraper Gasket |
$165.67 |
|
|
| 12 | M-670220768 | Rh Rear Door Framework Gaske |
$58.04 |
|
|
| 14 | M-673014499 | Acoustic Fleece Rr |
$13.88 |
|
|
| 16 | M-670106485 | R.H. Domelight |
$11.52 |
|
|
| 17 | M-673005979 | Locator Seal |
$2.13 |
|
|
| 18 | M-670214550 | Pin |
$1.37 |
|
|
| 19 | M-673014498 | Screw K50 X 14Mm |
$1.49 |
|
|
| 20 | M-673014497 | Bracket Metal Bushing |
$1.51 |
|
|
| 21 | M-675002308 | Pin |
$0.98 |
|
|
| 22 | M-675001326 | Plug |
$2.43 |
|
|
| 23 | M-675000762 | Rubber Closing Plug |
$1.93 |
|
|
| 24 | M-675002366 | Tampone Insonorizzante |
$4.92 |
|
