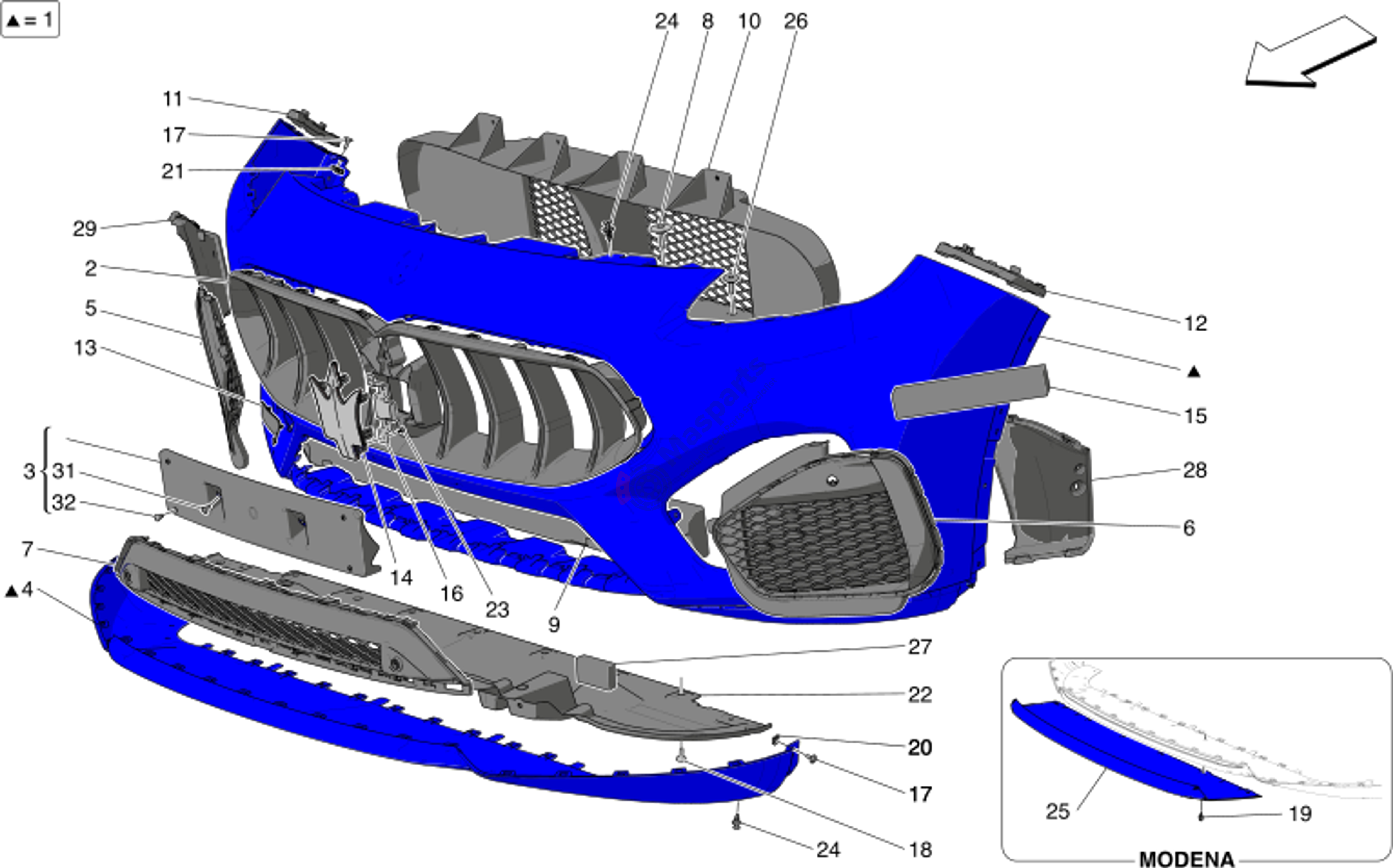

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670120018 | Front Bumper Modena |
€871,66 |
|
|
| 8 | M-675001651 | Screw |
€2,53 |
|
|
| 9 | M-670218092 | Front Bumper Fascia |
€32,73 |
|
|
| 10 | M-670157174 | Air Conveyor To Radiator |
€62,93 |
|
|
| 11 | M-670157179 | Right Bracket Right Bumper |
€3,55 |
|
|
| 12 | M-670157216 | Upper Fixing Bracket Left Bu |
€3,55 |
|
|
| 15 | M-675000635 | Pad |
€7,45 |
|
|
| 16 | M-670174532 | Bracket |
€15,73 |
|
|
| 17 | M-675001390 | Screw |
€1,73 |
|
|
| 18 | M-675001883 | Screw |
€1,13 |
|
|
| 19 | M-675000294 | Pin |
€2,13 |
|
|
| 20 | M-675001674 | Fastening Clip |
€0,98 |
|
|
| 21 | M-675002035 | Bracket Screw M6 |
€1,40 |
|
|
| 22 | M-670157346 | Front Lower Fascia Extension |
€26,24 |
|
|
| 23 | M-675001049 | Screw |
€0,93 |
|
|
| 24 | M-675000294 | Pin |
€2,13 |
|
|
| 26 | M-675001884 | Screw |
€1,13 |
|
|
| 27 | M-670292889 | Pad |
€3,51 |
|
|
| 28 | M-670198009 | Left Bumper Air Duct |
€53,64 |
|
|
| 29 | M-670198008 | Right Bumper Air Duct |
€53,64 |
|
|
| 31 | M-675000326 | Screw |
€1,67 |
|
|
| 32 | M-675001930 | Screw |
€0,67 |
|
