Diagram image not available

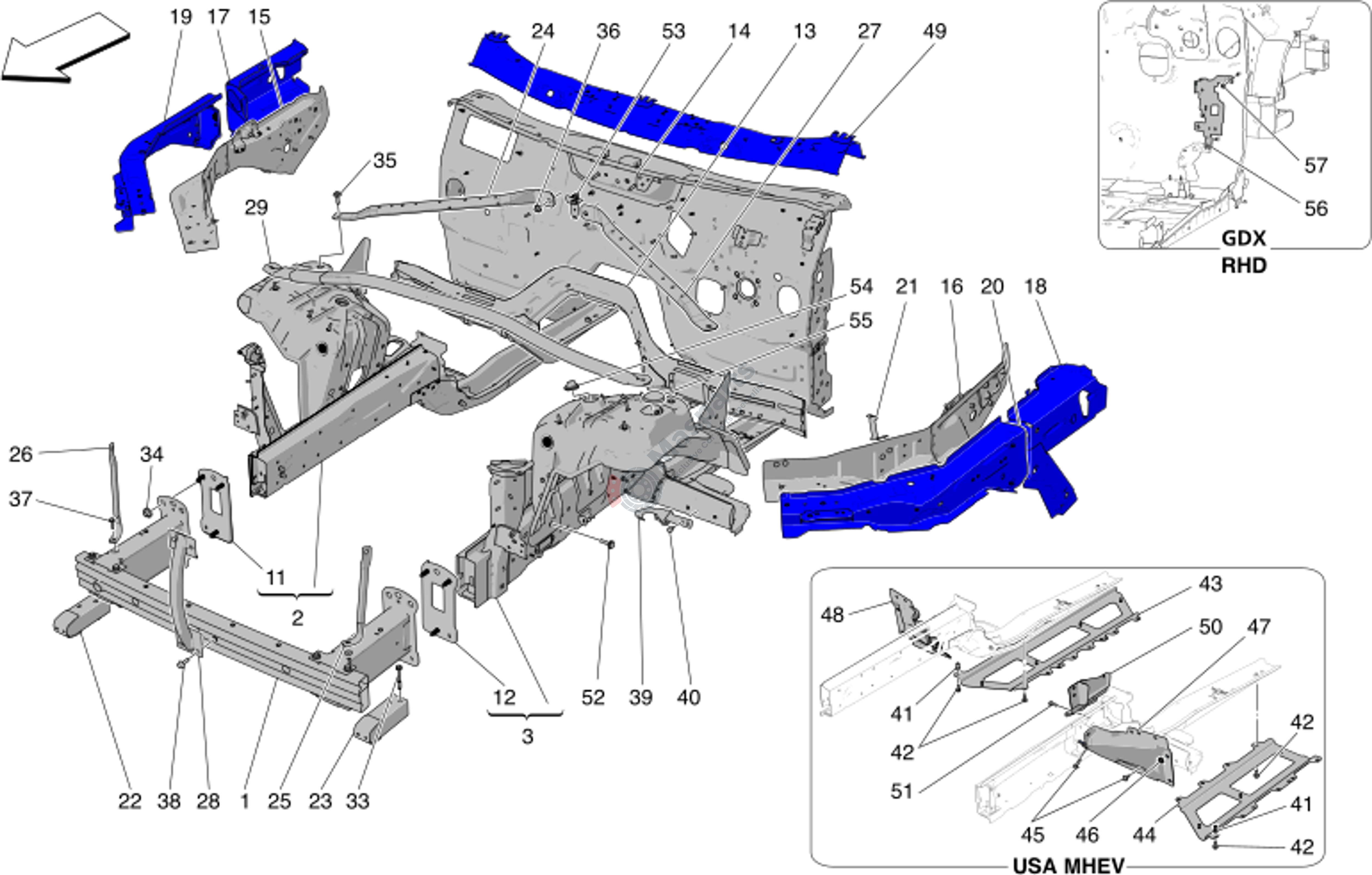

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670157480 | Front Crash Box Crossmember |
$402.15 |
|
|
| 11 | M-673014214 | R.H. Lower Side Member Strut |
$7.95 |
|
|
| 12 | M-673014219 | L.H. Lower Side Menber Strut |
$7.95 |
|
|
| 13 | M-673014198 | Crossbar Cs. Connection Stru |
$203.97 |
|
|
| 14 | M-673014197 | Dashboard Cs. Inf. Gsx |
$671.73 |
|
|
| 15 | M-673014180 | Complete Box Sup Structure D |
$90.76 |
|
|
| 16 | M-673014181 | Complete Box Sup Structure S |
$90.76 |
|
|
| 17 | M-673014145 | Rh Rear Strut |
$174.97 |
|
|
| 18 | M-673014146 | Lh Rear Strut |
$174.97 |
|
|
| 22 | M-675001951 | Rh Front Bumper Absorber |
$46.44 |
|
|
| 23 | M-675001950 | Lh Front Bumper Absorber |
$46.44 |
|
|
| 24 | M-675002142 | Rh Domes Connection Bar |
$55.64 |
|
|
| 25 | M-670157436 | Lh Connection Bar |
$27.32 |
|
|
| 26 | M-670157435 | Rh Connection Bar |
$27.32 |
|
|
| 27 | M-675002141 | Lh Domes Connection Bar |
$55.25 |
|
|
| 28 | M-670175582 | Cross Member Connection |
$48.20 |
|
|
| 29 | M-675002139 | Suspension Strut Connecting |
$136.31 |
|
|
| 33 | M-675002155 | Screw M8X70 |
$1.65 |
|
|
| 34 | M-675001193 | Nut |
$5.64 |
|
|
| 35 | M-675002125 | Screw |
$1.48 |
|
|
| 36 | M-675002104 | Nut |
$2.66 |
|
|
| 37 | M-675002146 | Screw |
$1.77 |
|
|
| 38 | M-675001245 | Screw |
$1.65 |
|
|
| 39 | M-670172822 | Bracket |
$34.01 |
|
|
| 40 | M-675001245 | Screw |
$1.65 |
|
|
| 49 | M-673014182 | Complete Crossbar Inf.Gsx Wi |
$83.75 |
|
|
| 52 | M-675002161 | Screw |
$1.77 |
|
|
| 53 | M-670175069 | Bracket |
$9.10 |
|
|
| 54 | M-675001542 | Cap |
$2.65 |
|
|
| 55 | M-675001717 | Cap |
$2.84 |
|
