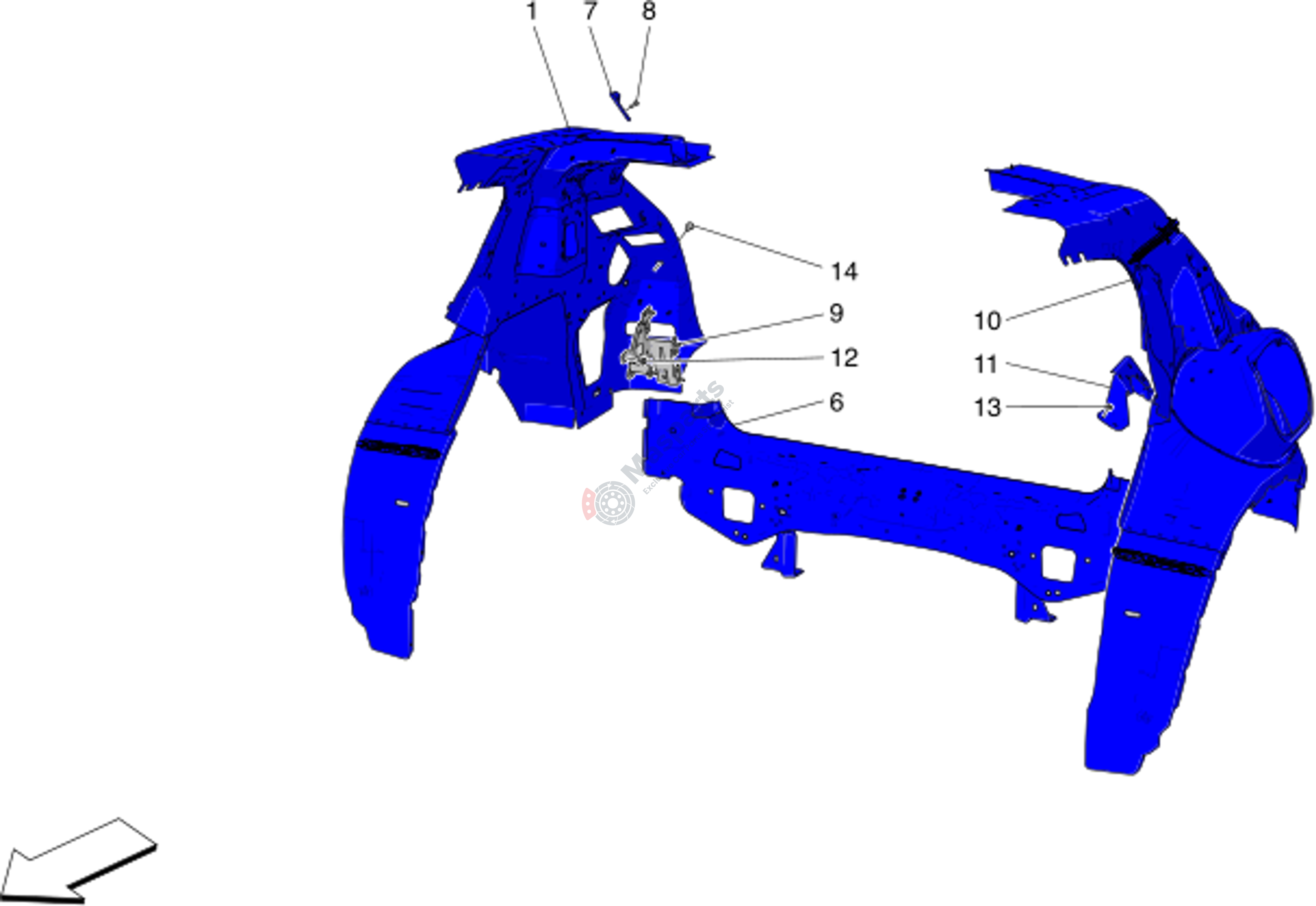

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673014128 | Rear Right Side Framing |
€549,95 |
|
|
| 6 | M-673014191 | Cover Comp. Rear Lower |
€273,24 |
|
|
| 7 | M-670157272 | Rh Bracket |
€8,65 |
|
|
| 8 | M-675002109 | Screw |
€1,13 |
|
|
| 9 | M-670160163 | Rh Bracket |
€18,95 |
|
|
| 10 | M-673014129 | Rear Left Side Framing |
€549,95 |
|
|
| 11 | M-670173168 | Complete Filler Neck Bracket |
€7,08 |
|
|
| 12 | M-675001317 | Screw |
€1,56 |
|
|
| 13 | M-675001307 | Nut |
€0,93 |
|
|
| 14 | M-675000698 | Rivet |
€2,05 |
|
