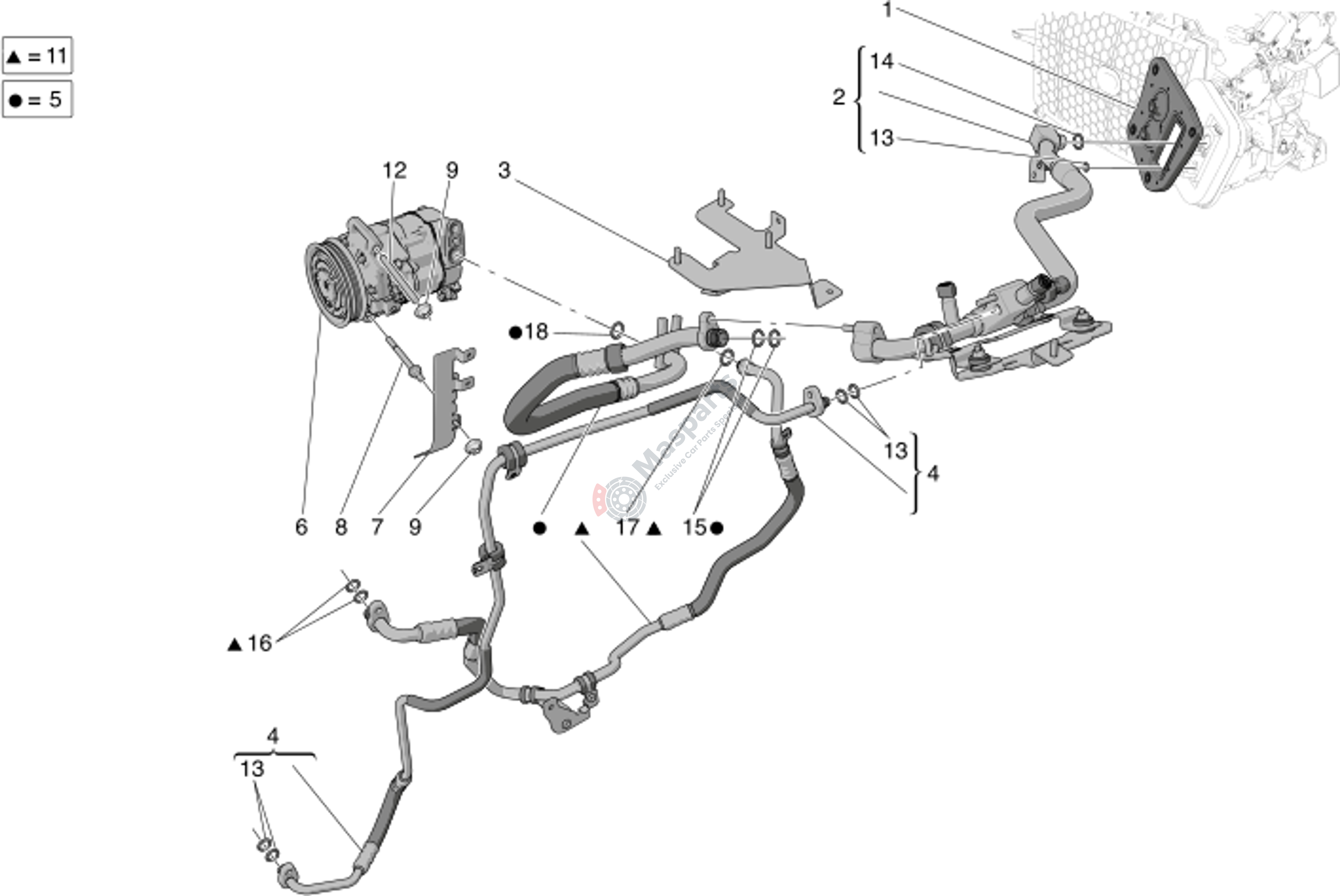

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001734 | A/C Gasket |
€10,40 |
|
|
| 2 | M-670176386 | Lhd Evap-Union Pipe Mhev |
€157,25 |
|
|
| 3 | M-670213656 | Fixing Bracket |
€10,95 |
|
|
| 4 | M-670178585 | Lhd Condenser-Evap Pipe Mhev |
€87,55 |
|
|
| 5 | M-670156436 | Pipe Union-Compressor |
€91,80 |
|
|
| 6 | M-675001009 | Ac Compressor |
€207,40 |
|
|
| 8 | M-675001019 | Screw |
€2,13 |
|
|
| 9 | M-675001090 | Nut |
€0,91 |
|
|
| 11 | M-670156437 | Pipe A/C - Compressor |
€100,30 |
|
|
| 12 | M-675000902 | Threaded Stud |
€2,39 |
|
|
| 13 | M-675000119 | O-Ring 68X187 |
€1,67 |
|
|
| 14 | M-675000306 | O-Ring 136X243 |
€1,63 |
|
|
| 15 | M-675000306 | O-Ring 136X243 |
€1,63 |
|
|
| 16 | M-675001987 | O Ring |
€6,62 |
|
|
| 17 | M-675000122 | O-Ring 1/2 - 1234Yf |
€6,62 |
|
|
| 18 | M-675000123 | O-Ring 3/4 - 1234Yf |
€6,99 |
|
