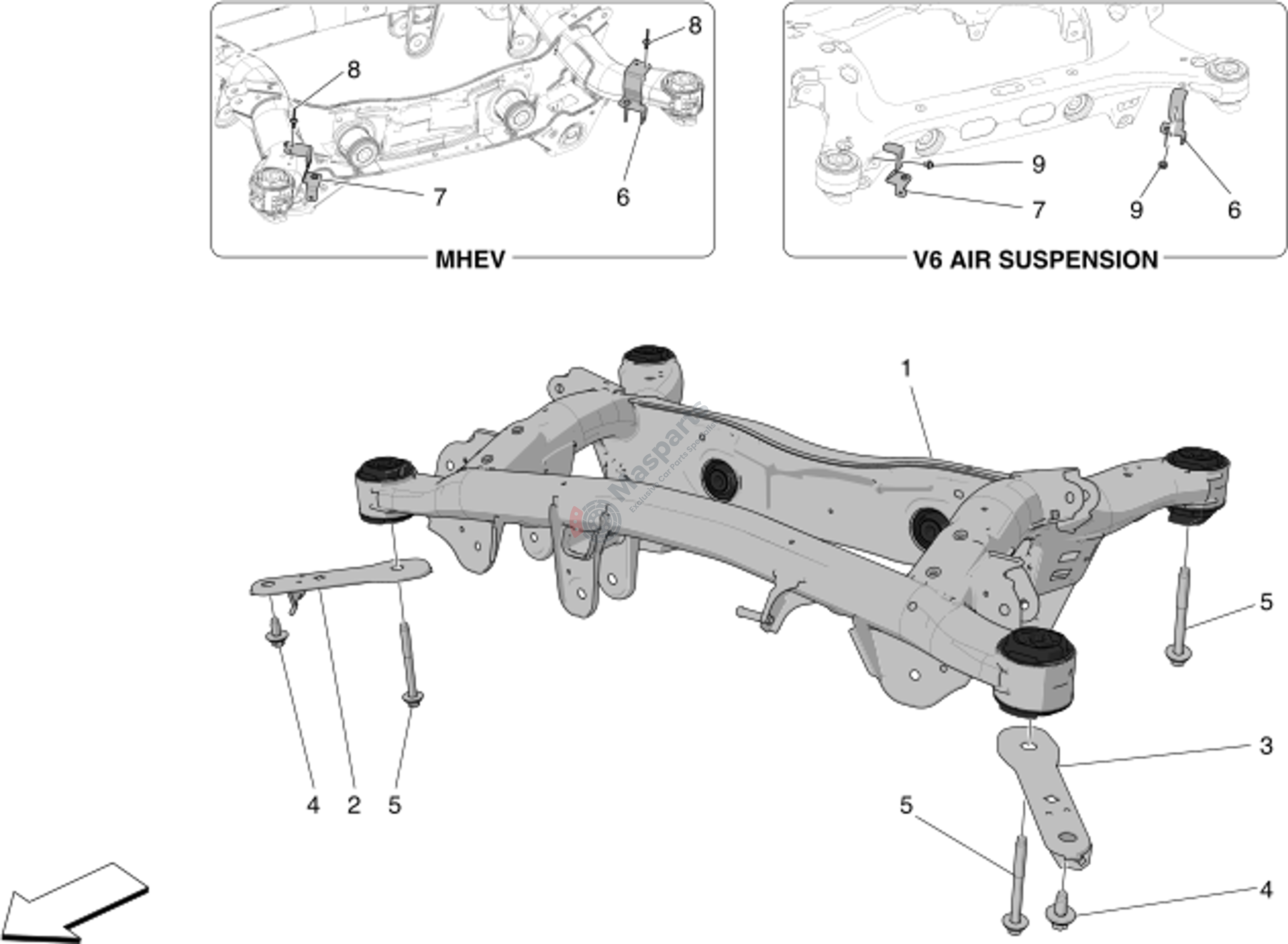

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001730 | Crossbeam |
€1.590,35 |
|
|
| 2 | M-675001813 | Right Bracket |
€7,91 |
|
|
| 3 | M-675001812 | Left Bracket |
€8,65 |
|
|
| 4 | M-675001534 | Screw |
€2,01 |
|
|
| 5 | M-670182079 | Screw |
€5,43 |
|
|
| 6 | M-670176768 | Right-Hand Tank Cover Bracke |
€7,91 |
|
|
| 7 | M-670176766 | Left Tank Cover Bracket |
€7,91 |
|
|
| 8 | M-675000323 | Rivet |
€1,58 |
|
