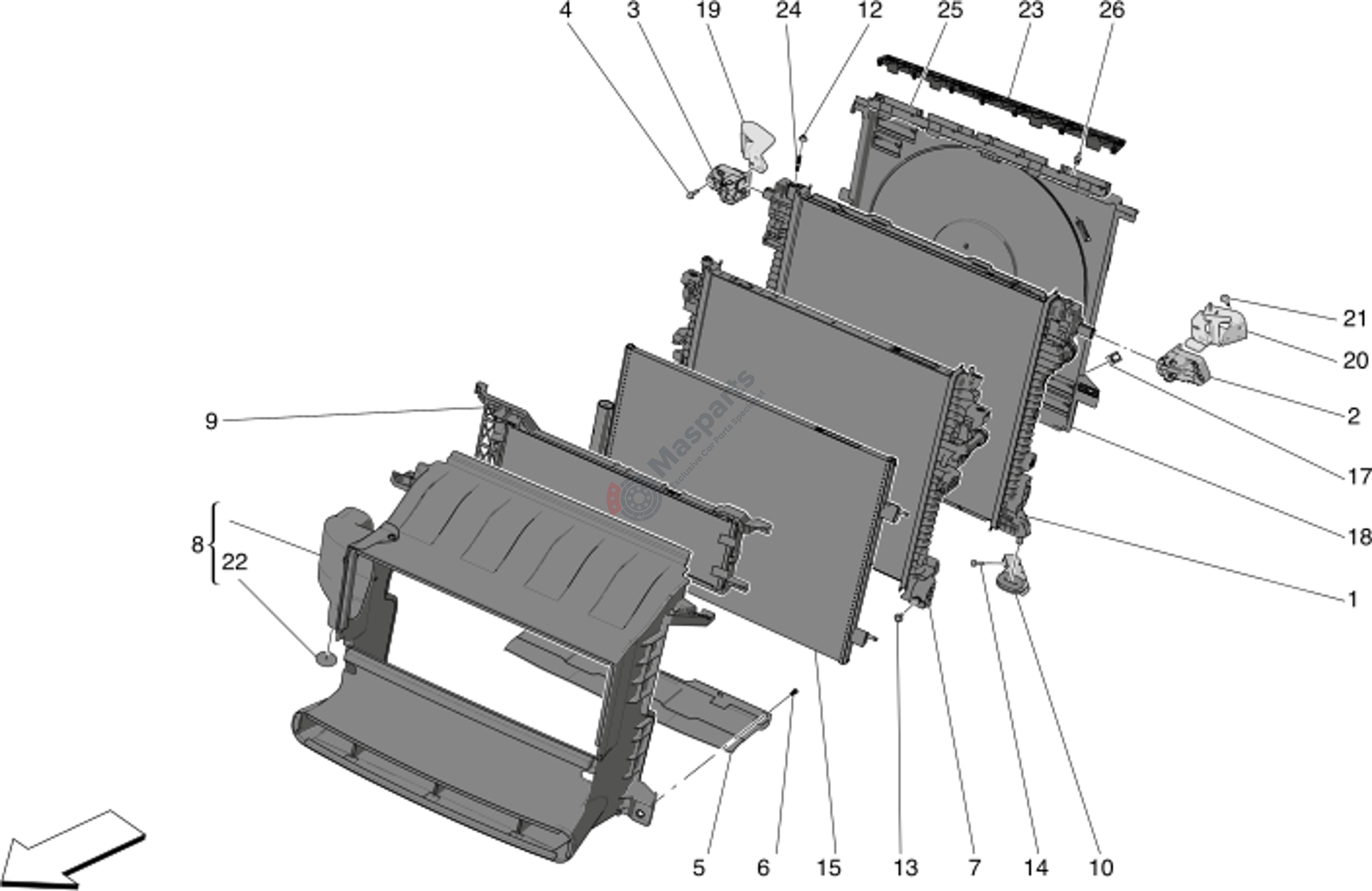

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675001943 | Radiator |
$508.77 |
|
|
| 2 | M-675002060 | Bracket |
$35.00 |
|
|
| 3 | M-675002059 | Bracket |
$35.00 |
|
|
| 4 | M-675001933 | Screw |
$1.50 |
|
|
| 5 | M-675002068 | Plate |
$52.27 |
|
|
| 6 | M-675002069 | Screw |
$0.72 |
|
|
| 7 | M-675001945 | Radiator |
$502.87 |
|
|
| 8 | M-670181751 | Conveyor |
$160.09 |
|
|
| 9 | M-670161225 | Oil Radiator |
$332.96 |
|
|
| 10 | M-675001561 | Right Bracket Lower |
$17.60 |
|
|
| 12 | M-675001063 | Nut |
$1.24 |
|
|
| 13 | M-675001053 | Screw |
$1.61 |
|
|
| 14 | M-675001119 | Screw |
$0.80 |
|
|
| 15 | M-675001449 | A.C. Condenser |
$634.49 |
|
|
| 17 | M-675001040 | Plate |
$1.27 |
|
|
| 18 | M-675001942 | Fan |
$917.21 |
|
|
| 19 | M-670218079 | Rh Bracket |
$22.01 |
|
|
| 20 | M-675002110 | Lh Bracket |
$24.10 |
|
|
| 21 | M-675001070 | Screw |
$1.44 |
|
|
| 22 | M-675001452 | Valve |
$4.70 |
|
|
| 23 | M-675001610 | Cover |
$13.01 |
|
|
| 24 | M-675002067 | Fixing |
$10.90 |
|
|
| 25 | M-675002070 | Clip |
$15.96 |
|
|
| 26 | M-675002071 | Rivet |
$1.18 |
|
