Diagram image not available

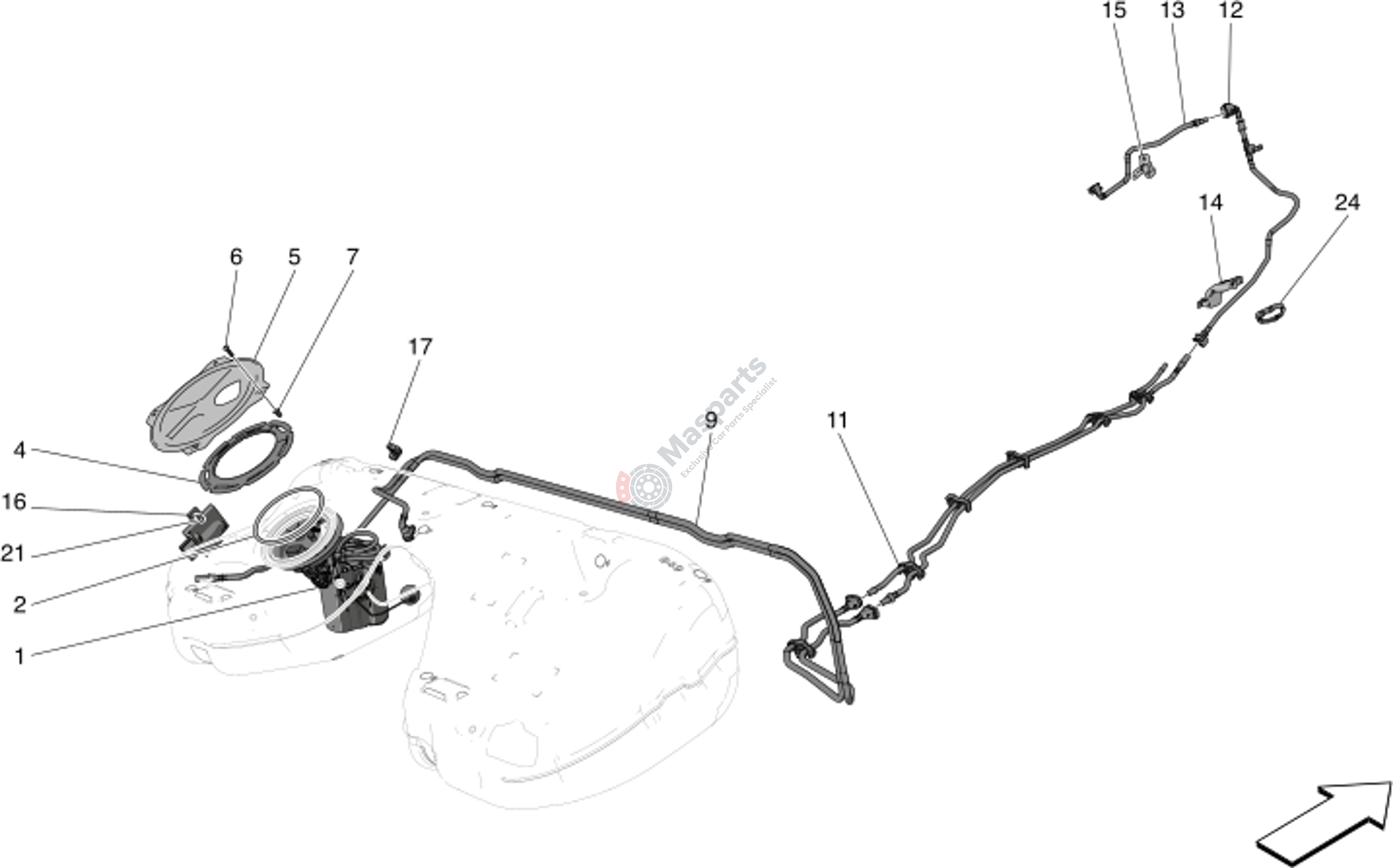

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675002220 | Intake Group |
$331.13 |
|
|
| 2 | M-675001996 | Gasket |
$60.28 |
|
|
| 4 | M-675001997 | Nut |
$18.25 |
|
|
| 5 | M-675001492 | Cover |
$23.46 |
|
|
| 6 | M-675000680 | Tapping Special Screw |
$0.93 |
|
|
| 7 | M-675001766 | Fastening Block |
$0.73 |
|
|
| 9 | M-670156350 | Tube |
$81.53 |
|
|
| 11 | M-670156527 | Tube |
$52.70 |
|
|
| 12 | M-670296105 | Tube |
$110.06 |
|
|
| 13 | M-675001000 | Engine Compartment Fuel Pipe |
$92.50 |
|
|
| 14 | M-670156530 | Fuel Pipe Bracket |
$5.03 |
|
|
| 15 | M-675000998 | Bracket |
$3.51 |
|
|
| 16 | M-675001876 | Fuel Pump |
$119.10 |
|
|
| 17 | M-675001835 | Tube Retaining Clip |
$2.57 |
|
|
| 21 | M-675001815 | Screw |
$1.16 |
|
|
| 24 | M-675001747 | Gasket |
$2.20 |
|
