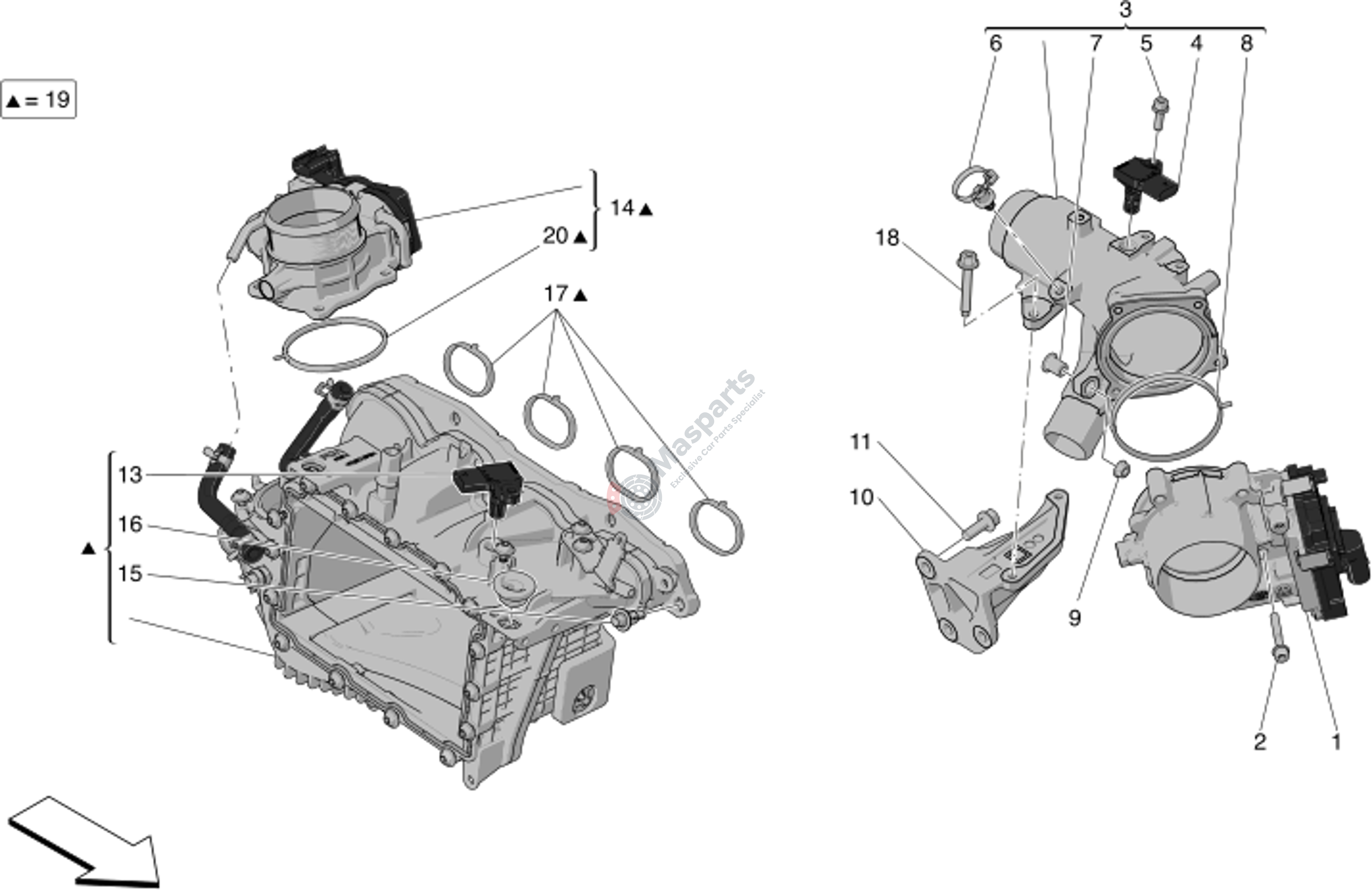

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670050579 | Throttle Body |
$549.90 |
|
|
| 2 | M-670051720 | Screw |
$2.63 |
|
|
| 3 | M-670053613 | Cpl Intake Manifold |
$286.99 |
|
|
| 4 | M-675000976 | T-Map Sensor |
$110.10 |
|
|
| 5 | M-670051107 | Screw |
$1.85 |
|
|
| 7 | M-670051584 | Fastening Bushing |
$31.61 |
|
|
| 8 | M-670037087 | Throttle Body Gasket |
$39.98 |
|
|
| 9 | M-675000969 | Nut |
$0.97 |
|
|
| 10 | M-670053044 | Bracket |
$35.95 |
|
|
| 11 | M-675000960 | Screw |
$3.22 |
|
|
| 13 | M-675000976 | T-Map Sensor |
$110.10 |
|
|
| 14 | M-673015229 | Kit Throttle Body + Gasket |
$321.66 |
|
|
| 15 | M-675000980 | Pin |
$17.00 |
|
|
| 16 | M-675000983 | Rubber |
$33.15 |
|
|
| 17 | M-673011075 | Gasket Kit |
$152.18 |
|
|
| 18 | M-675000954 | Screw |
$3.22 |
|
|
| 20 | M-673013363 | Gasket |
$15.95 |
|
