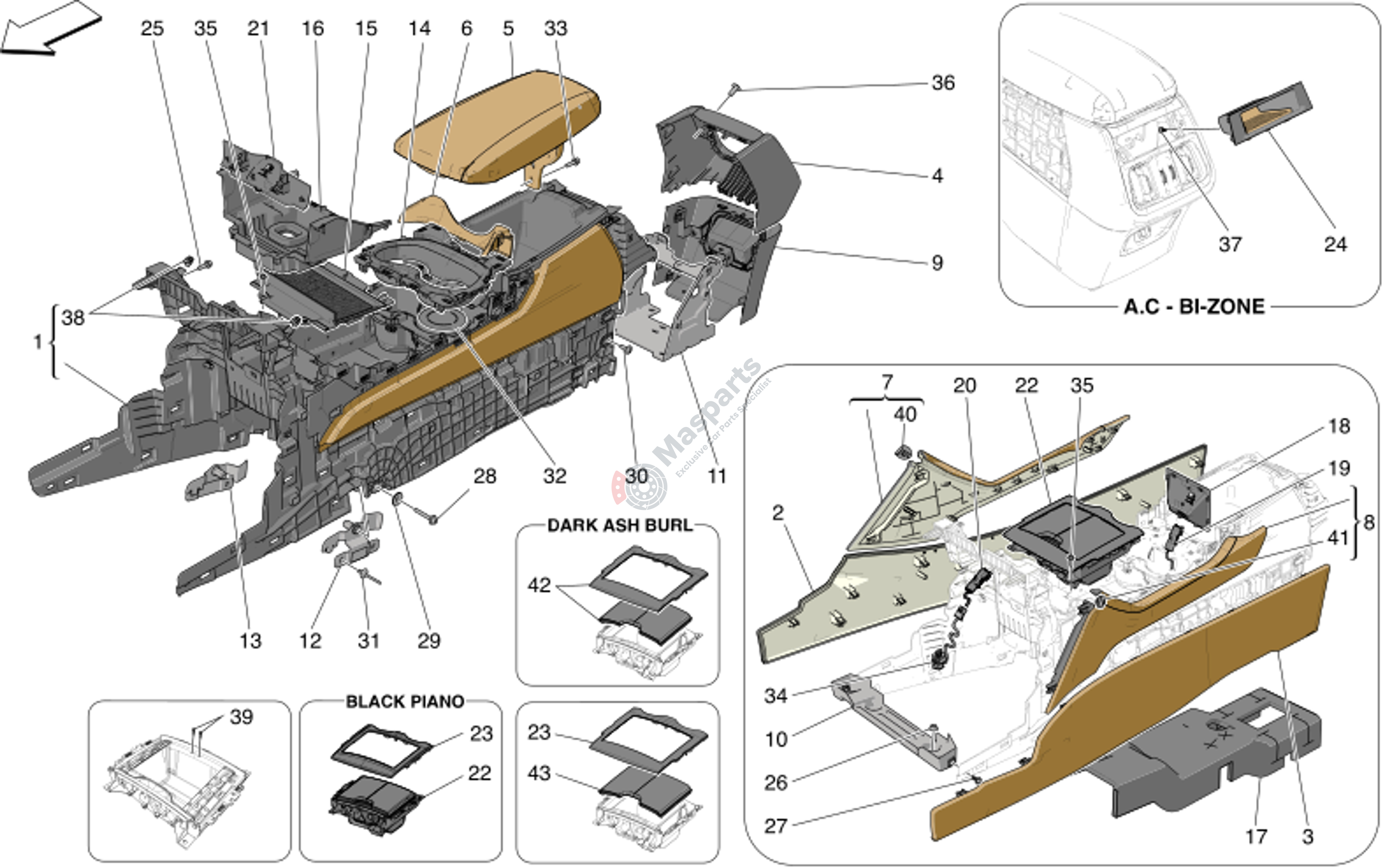

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 10 | M-675002024 | Bracket |
$12.21 |
|
|
| 11 | M-675002025 | Post Bracket |
$36.24 |
|
|
| 12 | M-675002026 | Left Bracket |
$10.95 |
|
|
| 13 | M-675002028 | Right Bracket |
$10.95 |
|
|
| 16 | M-670161953 | Insulation |
$47.99 |
|
|
| 17 | M-670174996 | Central Console Insulation |
$38.84 |
|
|
| 19 | M-670159387 | Domelight |
$10.10 |
|
|
| 25 | M-675000246 | Screw |
$1.44 |
|
|
| 26 | M-675000095 | Nut |
$0.75 |
|
|
| 27 | M-675001491 | Screw |
$0.96 |
|
|
| 28 | M-670009437 | Screw And Washer (Hex.Head M |
$2.86 |
|
|
| 29 | M-675002023 | Roset 6X21 |
$0.97 |
|
|
| 30 | M-675001974 | Screw |
$0.86 |
|
|
| 31 | M-675001915 | Rivet |
$1.08 |
|
|
| 32 | M-673013365 | Cup Holder Mat |
$29.37 |
|
|
| 33 | M-675002021 | Screw |
$1.47 |
|
|
| 34 | M-670214751 | Shield Connection Wiring |
$7.85 |
|
|
| 35 | M-670220002 | Screw |
$0.95 |
|
|
| 36 | M-675002027 | Screw |
$0.86 |
|
|
| 37 | M-675001049 | Screw |
$1.07 |
|
|
| 38 | M-673015637 | Clip Tunnel |
$0.96 |
|
