Diagram image not available

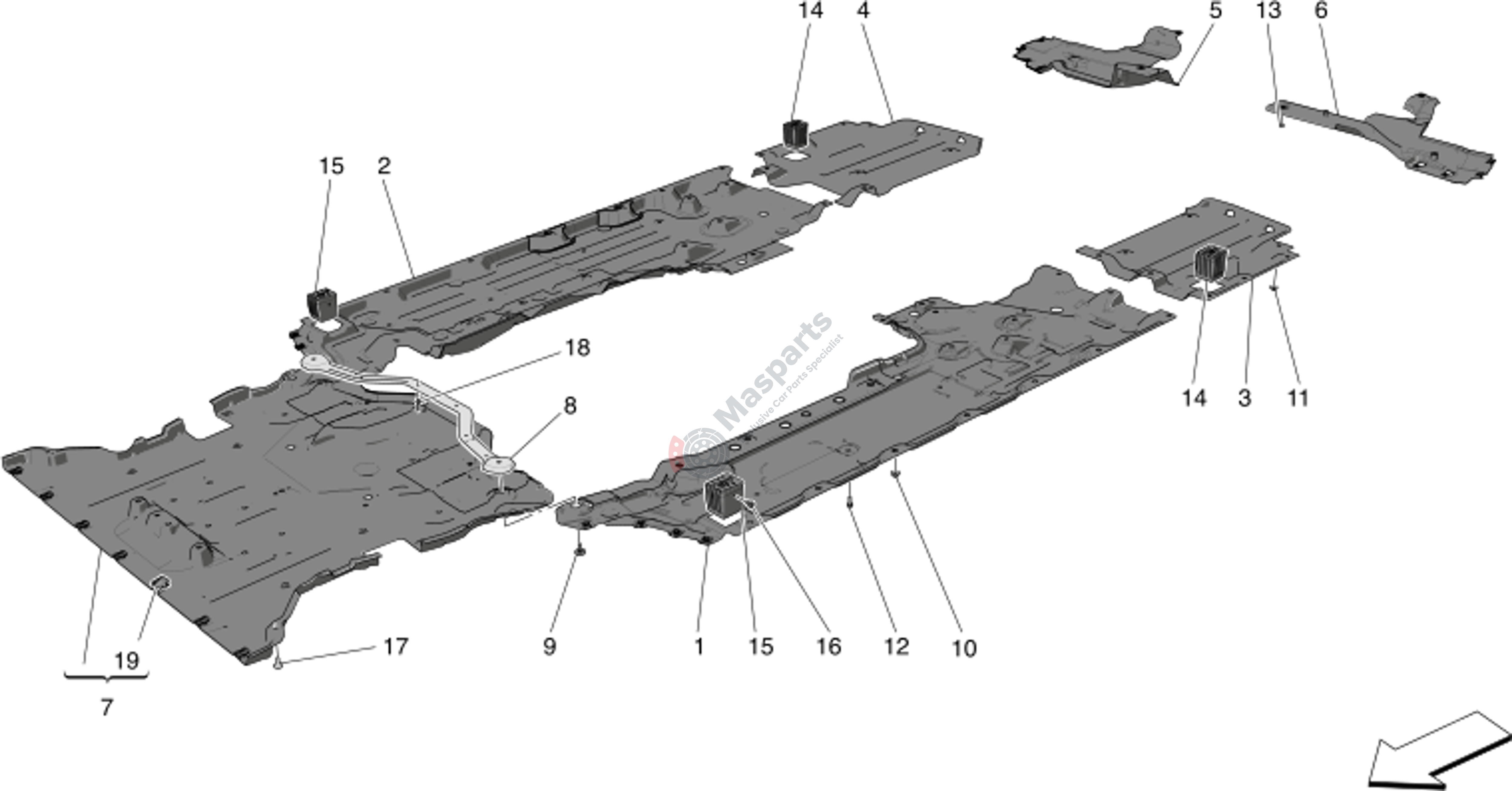

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670157078 | Lh Front Aerodynamic Cover |
$101.27 |
|
|
| 2 | M-670156986 | Rh Front Aerodynamic Cover |
$104.13 |
|
|
| 3 | M-670157076 | Lh Central Aerodynamic Shelt |
$34.81 |
|
|
| 4 | M-670157075 | Rh Central Aerodynamic Shelt |
$31.64 |
|
|
| 5 | M-670157092 | Rh Rear Aerodynamic Cover |
$101.27 |
|
|
| 6 | M-670157079 | Lh Rear Aerodynamic Cover |
$33.64 |
|
|
| 7 | M-670157369 | Shelter Under Engine |
$122.42 |
|
|
| 8 | M-675001801 | Reinforcement |
$25.04 |
|
|
| 9 | M-675001043 | Screw |
$1.51 |
|
|
| 10 | M-675000324 | Special Nut |
$1.26 |
|
|
| 11 | M-675001570 | Nut |
$1.67 |
|
|
| 12 | M-675001932 | Screw M6X25 |
$1.08 |
|
|
| 13 | M-675000794 | Flanged Nut |
$1.50 |
|
|
| 14 | M-670156985 | Rear Buffer Car Lift Pad |
$12.36 |
|
|
| 15 | M-670156984 | Front Buffer Car Lift Pad |
$12.36 |
|
|
| 16 | M-675001935 | Screw |
$1.18 |
|
|
| 17 | M-675001390 | Screw |
$2.04 |
|
|
| 18 | M-675000323 | Rivet |
$1.85 |
|
|
| 19 | M-675000020 | Lower Shield Fastening Clip |
$7.07 |
|
