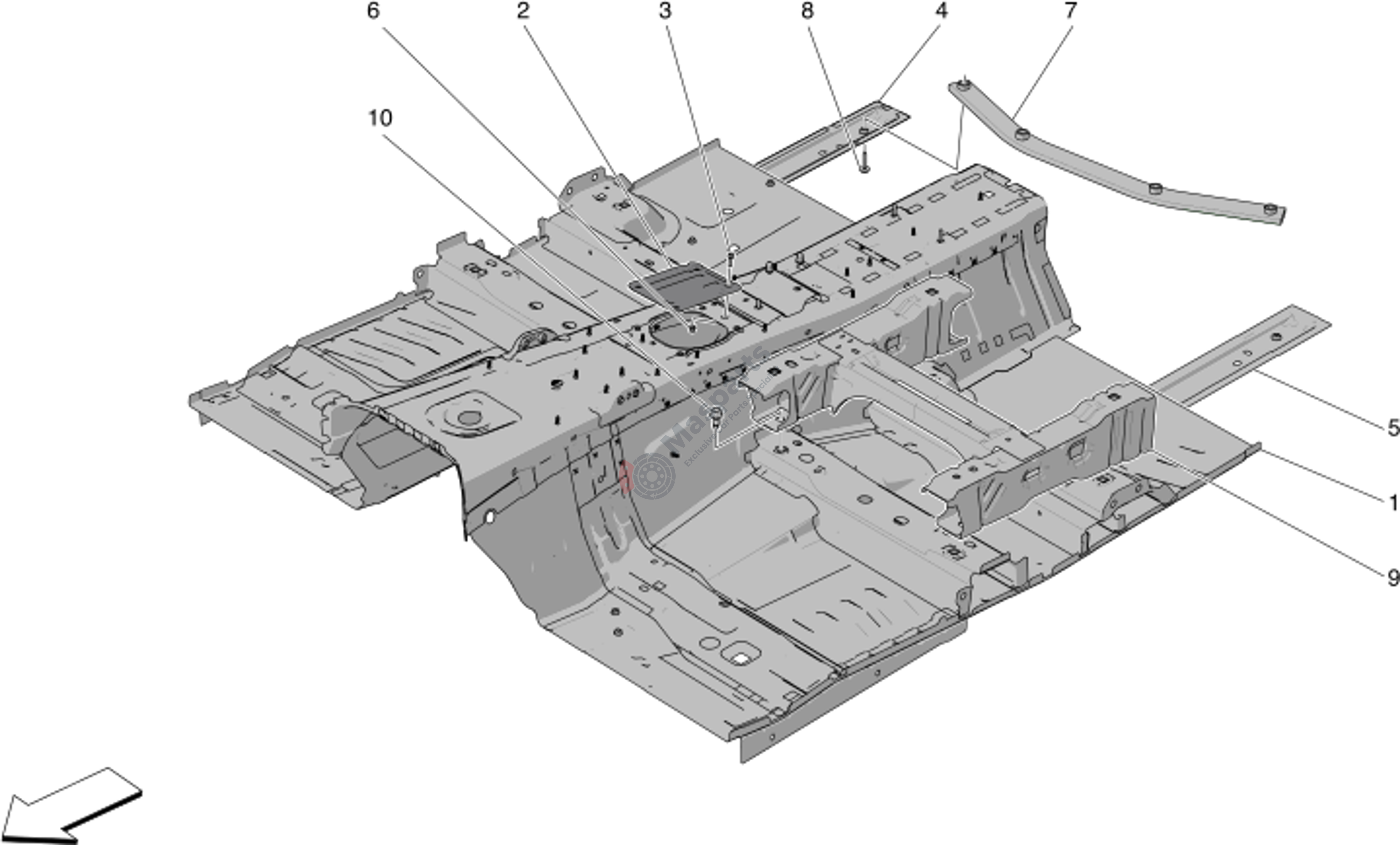

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673014149 | Central Floor Assembly |
$2,064.45 |
|
|
| 2 | M-675001860 | Cover |
$8.49 |
|
|
| 3 | M-675000375 | Screw |
$0.77 |
|
|
| 4 | M-673014252 | Rh Front Underbody Sill |
$18.54 |
|
|
| 5 | M-673014253 | Lh Front Underbody Sill |
$14.91 |
|
|
| 6 | M-675001929 | Rivet |
$1.51 |
|
|
| 7 | M-670162040 | Tunnel Connection Bracket |
$89.36 |
|
|
| 8 | M-675002154 | Screw M8X45 |
$1.21 |
|
|
| 10 | M-675000481 | Screw |
$3.64 |
|
