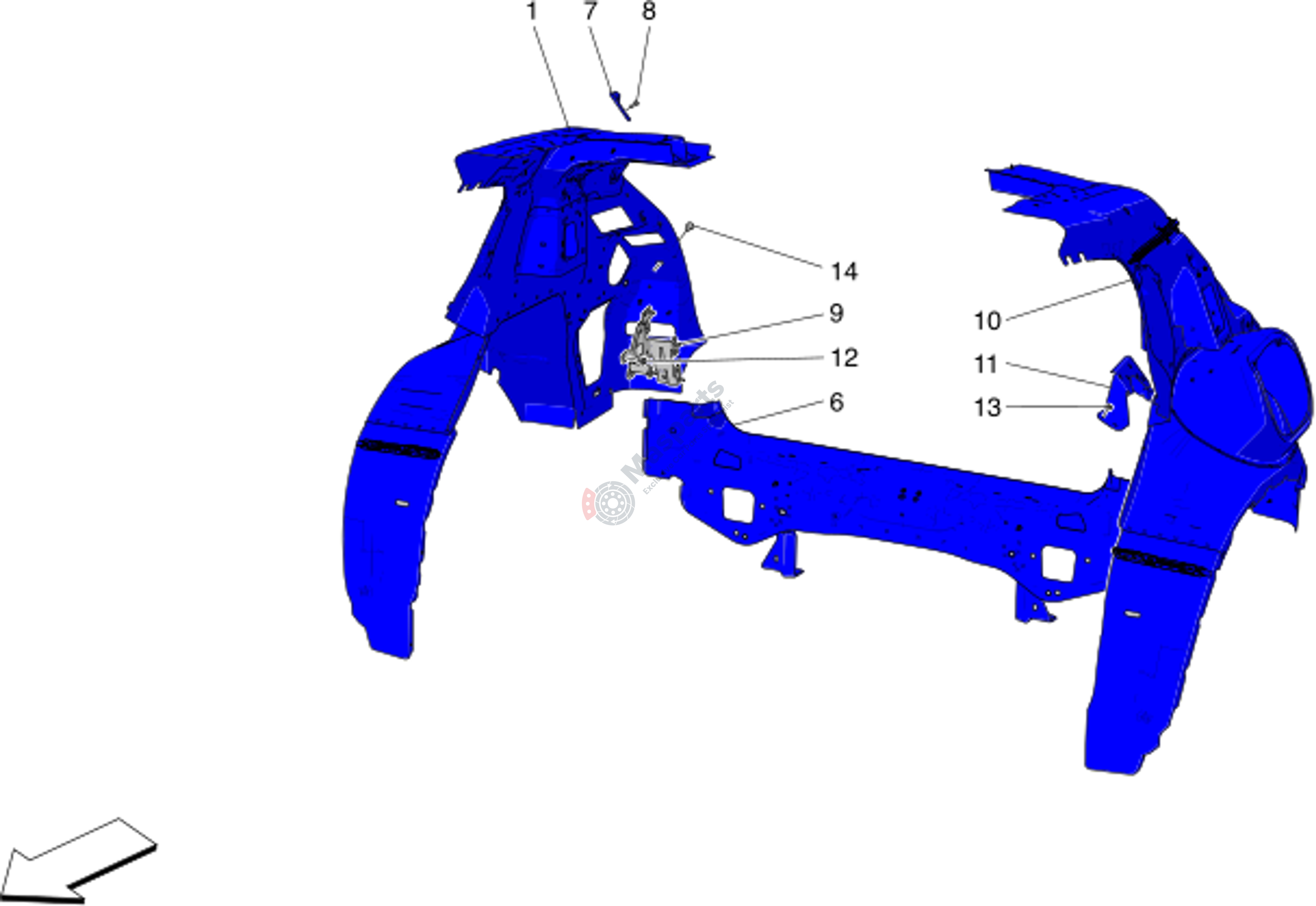

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673014128 | Rear Right Side Framing |
$636.06 |
|
|
| 6 | M-673014191 | Cover Comp. Rear Lower |
$315.84 |
|
|
| 7 | M-670157272 | Rh Bracket |
$10.04 |
|
|
| 8 | M-675002109 | Screw |
$1.32 |
|
|
| 9 | M-670160163 | Rh Bracket |
$22.01 |
|
|
| 10 | M-673014129 | Rear Left Side Framing |
$636.06 |
|
|
| 11 | M-670173168 | Complete Filler Neck Bracket |
$8.31 |
|
|
| 12 | M-675001317 | Screw |
$1.82 |
|
|
| 13 | M-675001307 | Nut |
$1.09 |
|
|
| 14 | M-675000698 | Rivet |
$2.38 |
|
